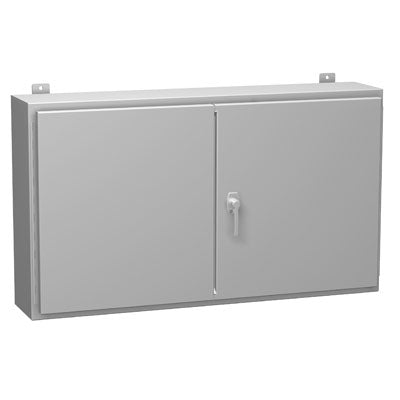

Hammond 1422 Series - Painted Steel Wall-Mount Double-Door Enclosures with 3-Point Latch - Includes Inner Mounting Panel

Designed to house electrical, electronic, hydraulic or pneumatic controls and instruments.  Provides a degree of protection from falling dirt, dust, oil and water.

Construction

• Enclosures are formed 12 or 14 gauge steel, as noted.
• Smooth, continuously welded seams without knockouts, cutouts or holes.
• Body stiffeners are provided in enclosures 30” high or more for extra rigidity.
• Welded brackets provide for enclosure mounting.
• Gasketed overlapping doors eliminate the need for a center post.
• Continuously hinged doors may be removed by pulling the hinge pin.
• Doors are secured with a three point latch and operated with a key locking automotive type handle.
• Latch rods are equipped with rollers for easier door closing.
• Oil resistant gaskets are permanently secured.
• A removable 10 gauge inner panel is included in enclosures as noted.
• Smaller sizes include a 12 gauge inner panel.
• Collar studs are provided for mounting inner panels.
• A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
• A literature pocket is provided for the inside of the door.

Finish

• Cover and enclosure are phos­phat­ized and finished in recoatable smooth ANSI 61 gray powder coating on the outside, with white powder coating on the inside.
• Removable inner panel is finished in white powder coating.



Catalog Spec Sheet



Drawings:

1422P8

1422PW8

1422P10

1422R10

1422RW10

1422RX10

1422UV12

1422UW12

1422UX12

1422VV12

1422VW12

1422VX12

1422WW12
