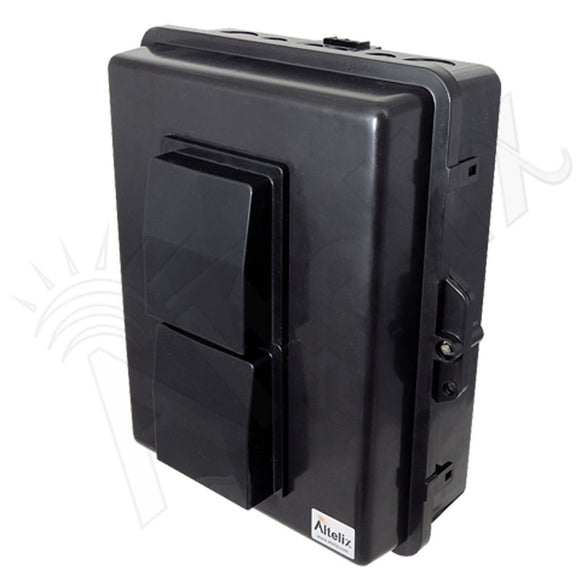

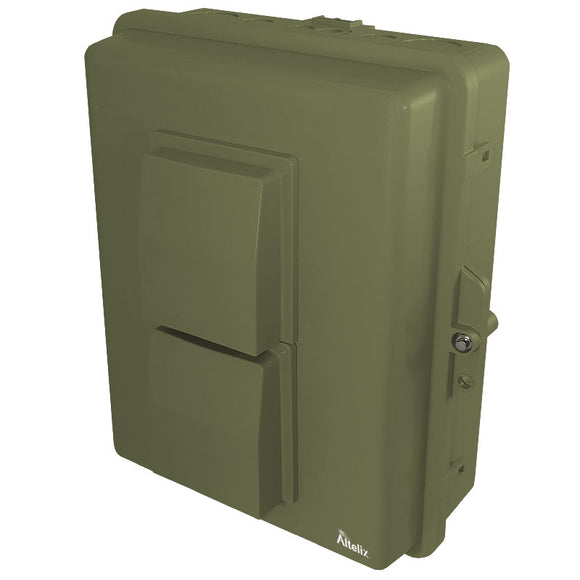

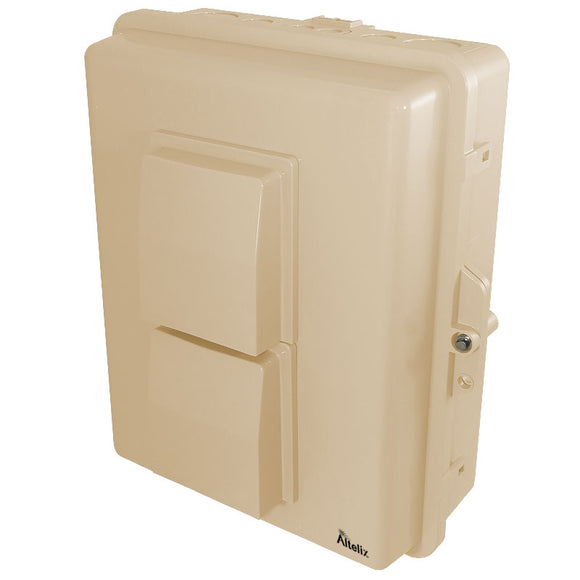

14x11x5 PC + ABS Vented Weatherproof Utility Box NEMA Enclosure with Pole Mount Kit

$199.52

SKU: NP141105V-PKIT Altelix

Features
  • Two (2) 3" Vents with Rain Shields and Screens
  • Includes (2) Galvanized Steel Pole Mount Brackets and (2) Stainless Steel Bands
  • Meets NEMA Type 3R, 3RX and IEC IP24
  • Weatherproof and UV Stable
  • Durable Polycarbonate + ABS
  • RF Transparent for Wireless Devices
  • Gasketed Lid with Dual Latches
  • Tamper-Proof Locking Screw with Key and Provision for Padlock
  • Includes Cable Glands, Cable Grommets, Zip Ties, Cable Management Loops and, Ground Plate & Ground Wire
  • External Dimensions: 13.4 x 11.6 x 6.3 Inches (340 x 294 x 161 mm)
  • Internal Dimensions: 12.0 x 8.0 x 4.0 Inches (305 x 203 x 102 mm)
  • Knock-Out Holes on Top & Bottom
Applications
  • Pole and Post Mounting
  • Multi Purpose Plastic Utility Box
  • Data Wiring and Fiber Optic
  • Cable TV Connections
  • Broadband Equipment
  • Low Voltage Wiring Junction Box
  • Solar Equipment
  • Outdoor Speaker Wiring
  • LED Controllers
  • IoT Devices
  • WiFi and RFID Gear
  • Security and Surveillance Systems
  • Outdoor Weather Protection
  • Protection Against Theft or Damage
  • Warehouses and Public Areas
  • Concealment of Equipment
  • Vented Battery Box


Weatherproof Extreme Durability for Pole and Post Mounting

The Altelix NP141105V-PKIT is an industrial quality general purpose vented weatherproof utility box designed for mounting to poles and posts. It features two 3 inch air vents covered by rain shields, with cleanable screens. It is ideal for protecting small devices from harsh environments and tampering, while allowing ventilation for installed equipment or batteries.

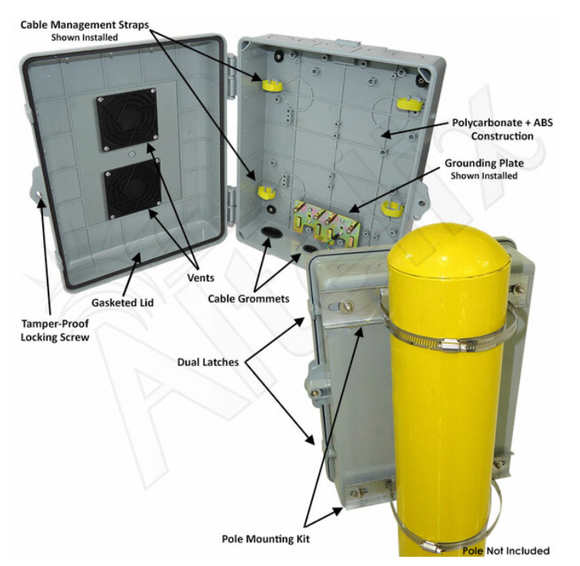

Construction and Features
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for a padlock. Knock-out holes are provided on the top and bottom. Meets or exceeds NEMA Type 3, 3X and IEC IP55.

Mounting

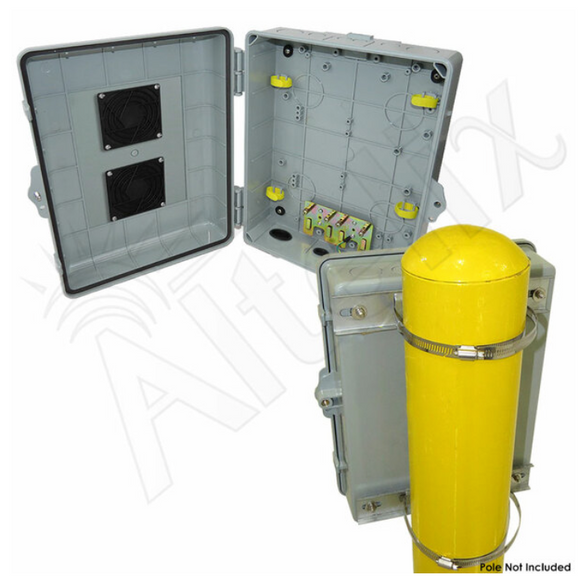

The included Pole Mount Kit features (2) galvanized steel brackets and two stainless steel adjustable bands that accommodate poles up to 8 inches in diameter. For larger diameter poles, such as utility poles, longer bands can be used.

Complete with Cable Grommets and Wire Management Accessories
This enclosure includes an assortment of cable grommets that can be installed in the knock-out holes for a weather resistant seal. The included accessory kit contains zip ties, wire management loops, grounding plate and ground wire, door locking key and more.

Cable Glands
The enclosure includes (2) unique cable glands with a closed inner seal. They can be installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
