Features a 1.5mm Thick Finished Aluminum Equipment Mounting Plate with 120VAC Power Terminal Block
Pre-wired 5 Foot Power Cord
Includes Cable Glands, Zip Ties, Hook & Loop Straps, Wall Mount Hardware
Meets NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66
Weatherproof and UV Stable
Durable Polycarbonate + ABS
RF Transparent for Wireless Devices
Tamper-Proof Locking Screw with Key and Provision for Padlock
External Dimensions: 15.8 x 11.4 x 5.0 Inches (401 x 290 x 126 mm)
Internal Dimensions: 9.8 x 8.0 x 4.0 Inches (248 x 203 x 101 mm)
Multi Purpose Plastic Utility Box
Data Wiring and Fiber Optic
Cable TV Connections
Broadband Demarc Enclosure
Low Voltage Wiring Junction Box
Outdoor Speaker Wiring
Security and Surveillance Systems
Outdoor Weather Protection
Protection Against Theft or Damage
Warehouses and Public Areas
Concealment of Equipment
NEMA 4X Weatherproof Polycarbonate + ABS Construction For Extreme Durability

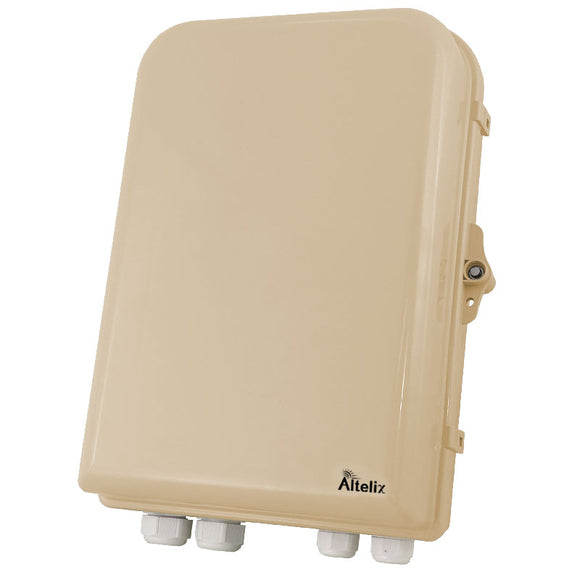

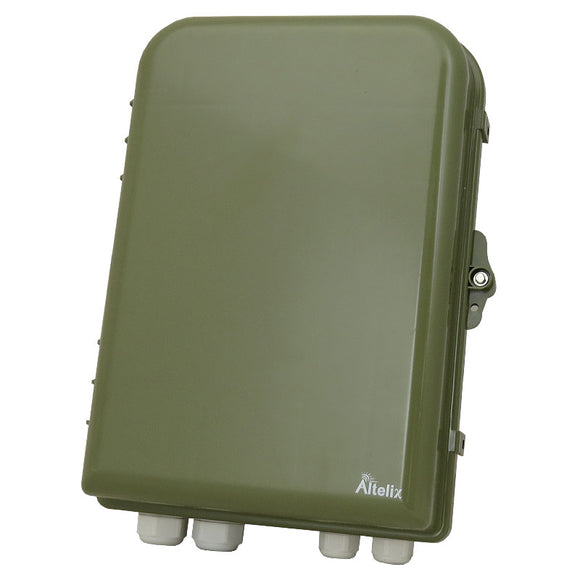

The¬†Altelix NP151005A1C-0¬†Plastic Utility Enclosure is an industrial quality general purpose weatherproof utility box designed to offer extreme protection for wiring, electronics and wireless devices in harsh environments. It is designed for applications that do not require internal AC power outlets.
Construction and Features This enclosure includes a 2.0mm thick finished aluminum equipment mounting plate. The enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. It meets or exceeds NEMA 31, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66.

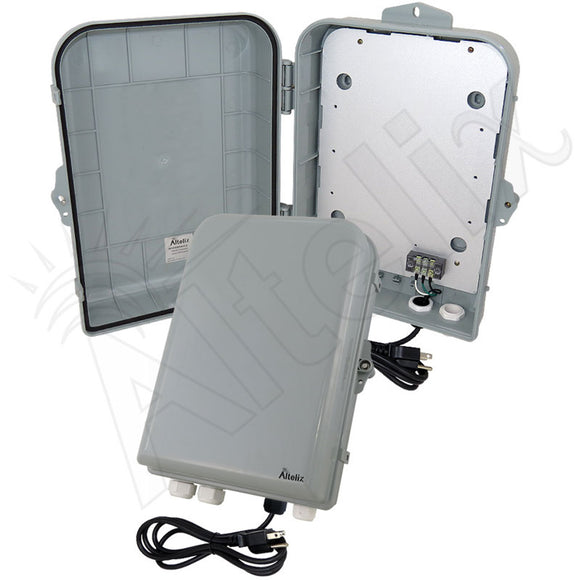

Power This configuration consists of the PC+ABS NEMA enclosure with hinged lid and a 1.5mm thick aluminum plate with a 120VAC power terminal block for hardwiring equipment power cords. A 5 foot pre-wired power cord is included to power the enclosure, so no additional wiring is required. A cable gland on the enclosure allows cables to be connected to internal devices. Additional cable glands are also provided on the enclosure for additional wiring. Extra cable grommets are included with the accessory kit.
Complete with Cable Glands and Wire Management Straps This enclosure includes 3 weatherproof cable glands. Simply punch out the seal, run your cable, and hand tighten for a water-tight seal. For convenience, the included accessory kit contains wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.
