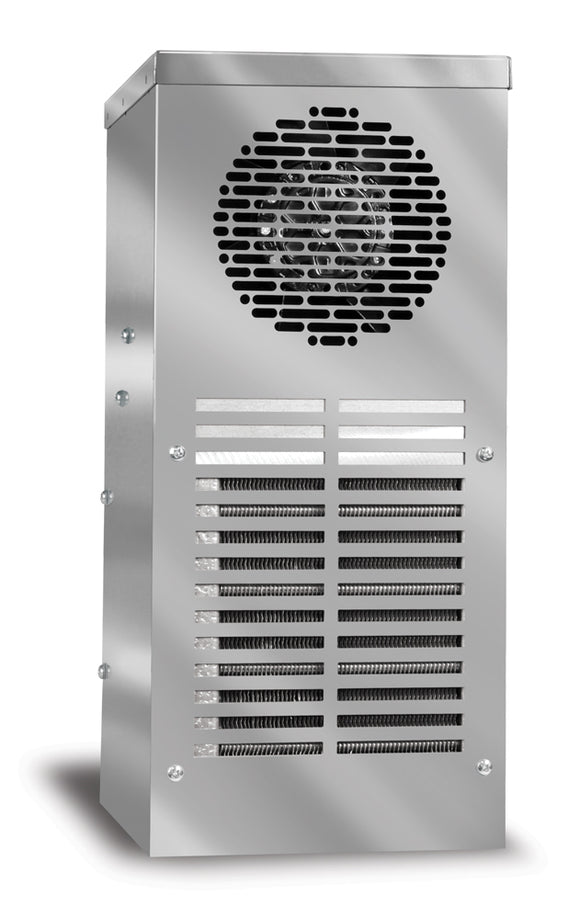

900-1200 BTU/H Outdoor Air Conditioner DTS Series Type 3R, 4, 4X, Side Mounting

900-1200 BTU/H Outdoor Air Conditioner DTS Series Type 3R, 4, 4X, Side Mounting

Hammond Manufacturing SKU: DTS3031A230N4SS

$3,427.30

Lead Time: All Hammond products vary, we can find this information quickly for you.

Availability: In stock products will ship within 1-2 business days.

Please chat with us directly or email at enclosurehub@adalet.com and we can give you the most accurate and up-to-date information.

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

Description

  • Compact design for side mounting on any enclosure surface where spot cooling or low capacity cooling is required.
  • Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
  • Ideal for outdoor or very wet conditions.

Standards

  • UL, cUL, and CE
  • Complies with
    • IP56
    • NEMA 3R, 4, 4X

Features

  • R134a refrigerant.
  • Thermostat control accessible from inside enclosure.
  • Expansion valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units.
  • Direct condensate discharge via 1/4" NPT threaded port.
  • Continuous air circulation from high capacity fans.
  • EMI/RFI suppression meets CE.
  • Provision for door contact allowing power down when enclosure door is opened.
  • Gasket, mounting kit and template for enclosure cutout and drilling are included.
  • Washable aluminum mesh filter.

Part Details

Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)


Overall Dimensions
Part No. H W D
DTS3031A115N4SS 15.50 7.00 7.75
DTS3031A230N4SS 15.50 7.00 7.75

Electrical Data DTS3031A115N4SS DTS3031A230N4SS
Rated Voltage 115 V 60 Hz 230 V 50/60 Hz
Range of Operation 103- 127 V 207-253 V
Power Consumption 243 W 253 W
Running Amps 2.1 A 1.1 A
Starting Current 10 5
Line Cord With Plug With Plug

Refrigeration Data
Cooling Capacity BTU (Watts) +95/+95F +35/+35C 1194 BTU/h (350 Watts)
Type of Refrigerant R134a
Refrigeration Charge 145 g
Adjustable Control Range +50F..+105F (+10C..+40 C) Factory setting +95F (+35C)
Max Ambient Air Temp +114F (+45C)
Min Ambient Air Temp -40F (-40C)
Air Capacity (unrestricted) Internal 37 CFM
External 99 CFM
Condensation Discharge Condensate Drain
Filter Mat Aluminum Mesh
Db noise level <64 db
Unit Weight 30 lbs (13.6kg)
Exterior Case 304 Stainless Steel
Finish Stainless Steel Number 4 Brush finish
Nema Rating enclosures IP56 / NEMA 4,4X
Nema Rating enclosures IP56 / NEMA 3R/4
