ABS Plastic Miniature USB Enclosures 1551 USB Series For Use With USB A Type Connectors

ABS Plastic Miniature USB Enclosures 1551 USB Series For Use With USB A Type Connectors

Hammond Manufacturing SKU: 1551USB1BK

$1.72

Lead Time: All Hammond products vary, we can find this information quickly for you.

Availability: In stock products will ship within 1-2 business days.

Please chat with us directly or email at info@enclosurehub.com and we can give you the most accurate and up-to-date information.

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.


Key Features

  • Ideally suited for dongles and/or mounting small printed circuit boards with USB connectors.
  • Molded in ABS plastic (material has a UL94-HB rating).

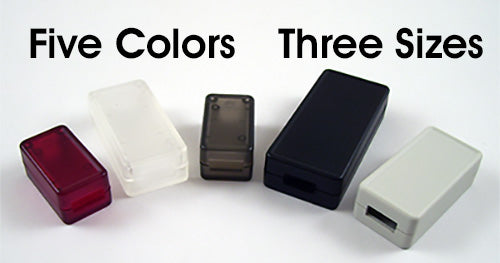

  • Choice of three (3) lengths in five (5) colors. Stocked in black, grey. translucent clear, translucent smoke and translucent red.
  • Satin texture finish.
  • Cover is recessed for easy label installation.

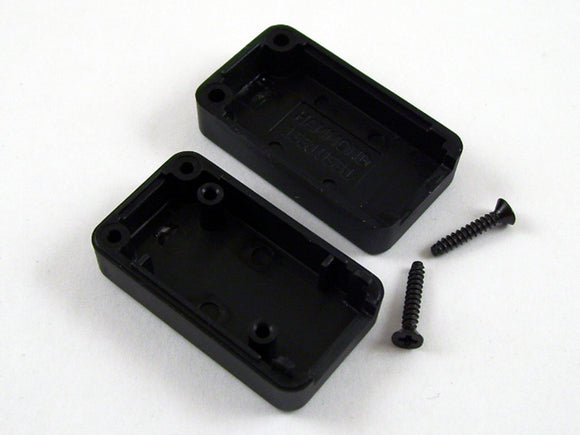

  • Complete with lid and two self tapping screws (plated for grey & clear, black for all other colors).
  • Two (2) or four (4) P.C. board standoffs molded into interior depending on enclosure size (see drawings for details).
  • Designed to meet IP54.
  • USB connector is not included.
  • For these same sizes without a USB cutout try our 1551MINI series.

Notes

  • Extra self tapping lid screws are #2 x 1/2" (Plated Qty 50 Part number 1551USB50 and Black Qty 50 Part number 1551USB50BK)
  • To secure P.C. board use self tapping #2 x 3/16" screws (Qty 100 Part number 1553WTS100) not included with enclosure.

​

Videos

Part Details

Click part number for details (e.g., CAD files, assembly instructions, ship weight)

Part Numbers

Part Number Color Length Width Depth
1551USB1BK Black 1.38 0.79 0.61
1551USB1GY Grey 1.38 0.79 0.61
1551USB1CLR TransClear 1.38 0.79 0.61
1551USB1TSK TransSmoke 1.38 0.79 0.61
1551USB1TRD TransRed 1.38 0.79 0.61
1551USB2BK Black 1.97 0.98 0.61
1551USB2GY Grey 1.97 0.98 0.61
1551USB2CLR TransClear 1.97 0.98 0.61
1551USB2TSK TransSmoke 1.97 0.98 0.61
1551USB2TRD TransRed 1.97 0.98 0.61
1551USB3BK Black 2.56 1.18 0.61
1551USB3GY Grey 2.56 1.18 0.61
1551USB3CLR TransClear 2.56 1.18 0.61
1551USB3TSK TransSmoke 2.56 1.18 0.61
1551USB3TRD TransRed 2.56 1.18 0.61
