Altelix 10x5 Inch Aluminum Utility Shelf with Adjustable Universal Mounting Brackets

Altelix SKU: HBR-001-AV

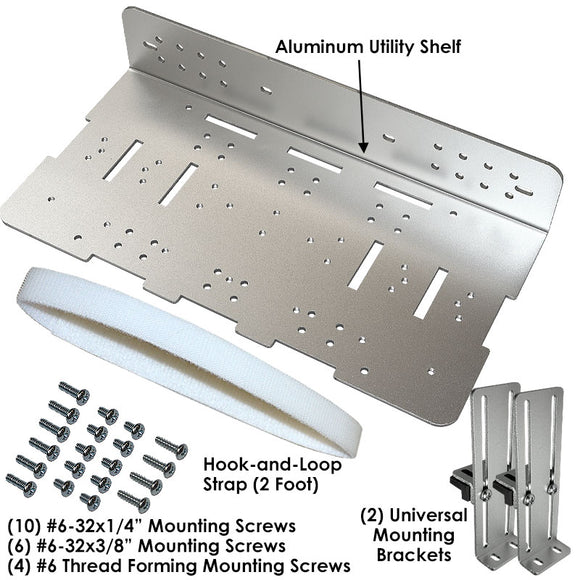

  • Heavy Duty Aluminum Construction
  • Includes (2) Height Adjustable Universal Equipment Mounting Brackets
  • Threaded and Non-Threaded Holes in Shelf for Mounting Equipment
  • Provisions for Hook-and-Loop Straps
  • Hook-and-Loop Mounting Strap and Mounting Screws Included
  • Secure Non-Mountable Devices in Enclosures or Equipment Closets and Racks

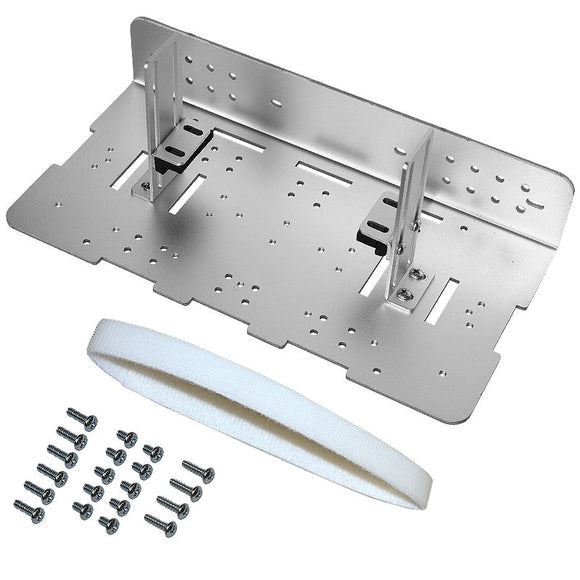

The Altelix HBR-001-AV utility shelf is designed hold a wide range equipment from SLA type batteries to electronic devices.  Constructed from heavy duty aluminum, this utility shelf features threaded and non-threaded holes for mounting equipment as well as provisions for using the included hook-and-loop strap. The HBR-001-AV includes (2) height adjustable universal equipment mounting brackets. Multiple locations in the shelf are provided to attach these brackets.

The HBR-001-AV can be mounted to any of our equipment mounting plates by drilling (4) holes. A drawing with mounting holes is available in the Downloads section. #6-32 machine screws are provided in the accessory kit as well as #6 thread forming screws for use with enclosures using non-metallic no-drill equipment mounting plates.

Pre-Drilled Equipment Mounting Plates

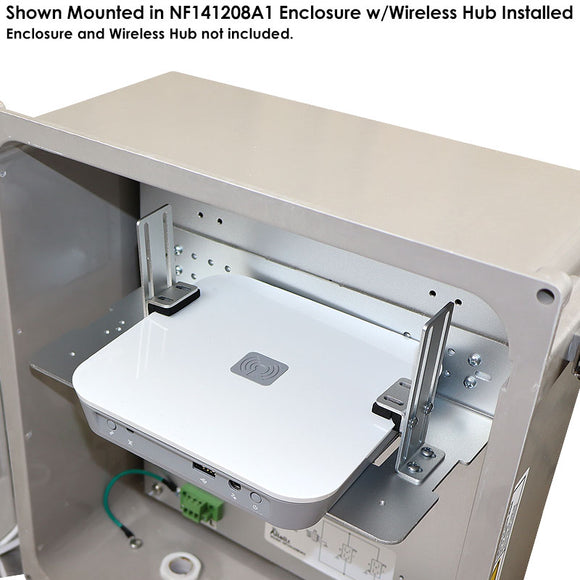

The Altelix NF1412xx 120VAC powered FRP enclosure series feature an aluminum equipment mounting plate that is pre-drilled and tapped with the holes required to mount the shelf. For those installations, use the #6-32 screws included in the accessory kit. The following enclosures feature these pre-drilled aluminum equipment mounting plates:

  • NF141206A1 Series
  • NF141206VA1 Series
  • NF141206VFA1 Series
  • NF141206VFHA1 Series
  • NF141208A1 Series
  • NF141208VA1 Series
  • NF141208VFA1 Series
  • NF141208VFHA1 Series
  • NF141210A1 Series
  • NF141210VA1 Series
  • NF141210VFA1 Series
  • NF141210VFHA1 Series
