Altelix 10x8x6 Fiberglass Weatherproof NEMA 4X Enclosure with Blank Aluminum Equipment Mounting Plate

Sale
$64.99 $69.99
Brand: Altelix
SKU: NF100806P
Minus Plus
${{amount}}
Features
  • Includes Easy to Drill Blank Aluminum Equipment Mounting Plate
  • Water Resistant JIC Enclosure Design with Gasketed Lid
  • Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
  • Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant
  • Includes Stainless Steel Mounting Feet
  • RF Transparent and Non-Conductive
  • Pole Mounting Kit Available
Applications
  • Harsh Environments
  • WiFi Enclosure
  • RFID Reader Enclosure
  • IoT Sensors
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Solar Equipment Enclosure
  • Outdoor Use of Indoor Equipment
  • Protection from Vandalism
  • Concealment of Electronic Equipment
  • Building Automation Controls
  • Industrial Controls Enclosure

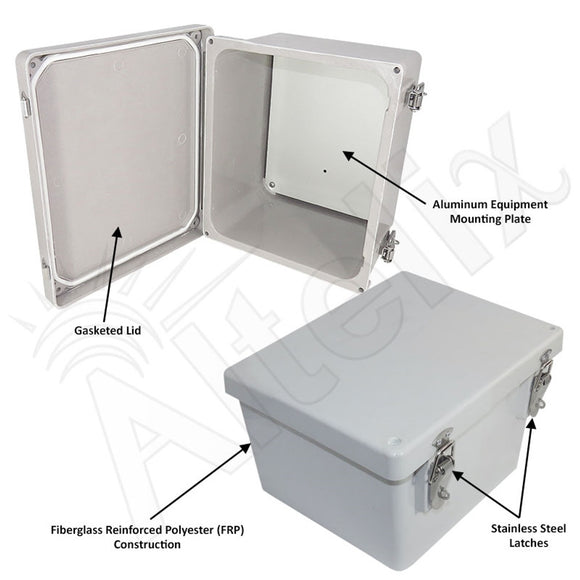

The Altelix NF100806P NEMA 4X Weatherproof Enclosure is ideal for protecting equipment from harsh environments and tampering. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.

This JIC style enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.

Aluminum Equipment Plate
This model features an easy to drill, aluminum equipment mounting plate. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel (NMKS-200-08) and stainless steel (NMKX-200-08).



Material Fiberglass Reinforced Polyester
Color Grey
Outer Dimensions 11.7 x 9.8 x 6.8 In. (297 x 250 x 173 mm)
Inner Dimensions 9.7 x 7.9 x 6.1 In. (247 x 200 x 156 mm)
Mounting Plate Material 0.10 in. (2.5mm) Aluminum
Mounting Plate Dimensions 9.1 x 7.4 in. (231 x 188 mm)
Weight 6.2 lbs. (2.8 kg)
Ratings NEMA Type 4, 4X / IP66
