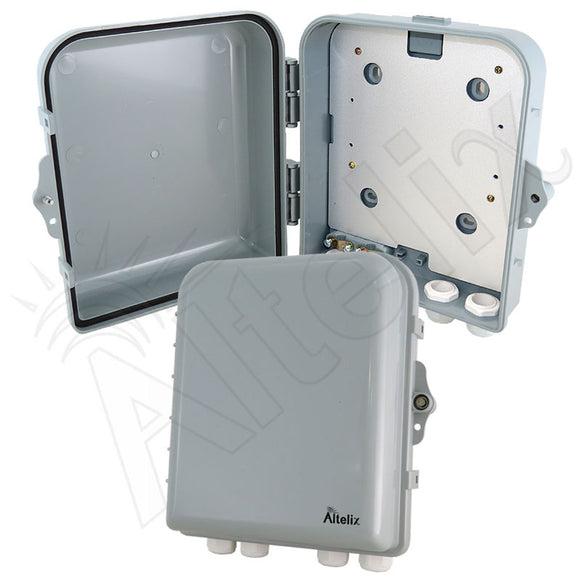

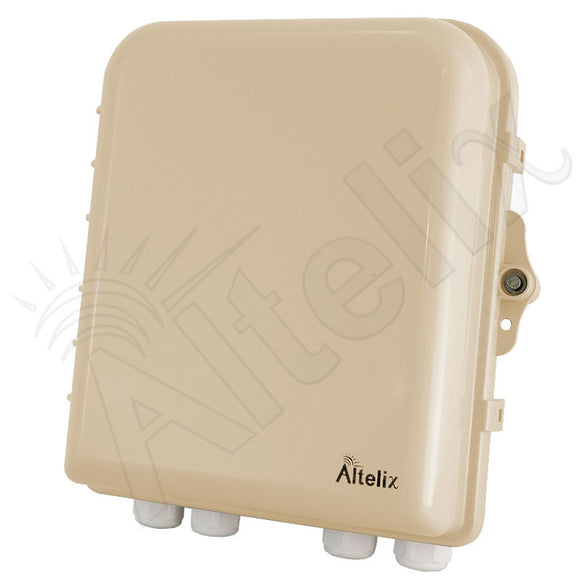

Altelix 10x9x4 IP66 NEMA 4X PC+ABS Weatherproof Utility Box with Hinged Door and Aluminum Mounting Plate

Altelix SKU: NP100904P

$30.25

Lead Time: TYPICALLY Ships Same Day on Orders Placed before 11:00AM EST

Availability: In Stock as of 9/21/23

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at info@enclosurehub.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

Features
  • Features a 1.5mm Thick Finished Aluminum Equipment Mounting Plate
  • Includes Cable Glands, Zip Ties, Cable Management Straps and Wall Mounting Hardware
  • Meets NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66
  • Weatherproof and UV Stable
  • Durable Polycarbonate + ABS
  • RF Transparent for Wireless Devices
  • Gasketed Lid
  • Tamper-Proof Locking Screw with Key and Provision for Padlock
  • External Dimensions: 10.2 x 9.9 x 4.2 Inches (260 x 252 x 106 mm)
  • Internal Dimensions*: 7.5 x 6.5 x 3.2 Inches (190 x 165 x 82 mm)
  • Optional Pole Mount Kit Available
Applications
  • Multi Purpose Plastic Utility Box
  • Data Wiring and Fiber Optic
  • Cable TV Connections
  • Broadband Demarc Enclosure
  • Low Voltage Wiring Junction Box
  • Outdoor Speaker Wiring
  • LED Controllers
  • IoT Devices
  • Security and Surveillance Systems
  • Outdoor Weather Protection
  • Protection Against Theft or Damage
  • Warehouses and Public Areas
  • Concealment of Equipment


Weatherproof Polycarbonate + ABS Construction For Extreme Durability

The Altelix NP100904P Plastic Utility Enclosure with Aluminum Equipment Mounting Plate is an industrial quality general purpose weatherproof utility box designed to offer extreme protection for wiring and small devices in harsh environments.

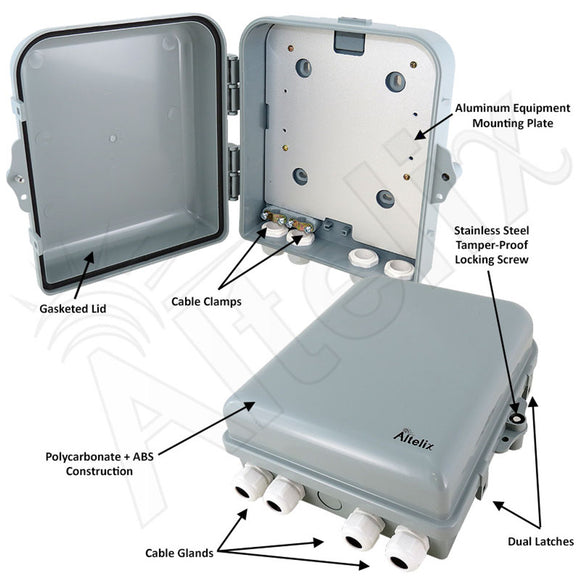

Construction and Features
This enclosure includes a 1.5mm thick finished aluminum equipment mounting plate. The enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. It meets or exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66.

Complete with Cable Glands and Wire Management Straps
This enclosure includes 4 weatherproof cable glands. Simply punch out the seal, run your cable, and hand tighten for a water-tight seal. For convenience, the included accessory kit contains wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.

Pole Mount Available
A pole mounting kit is also available for this enclosure. The NMKG-150-08 attaches to the rear of the enclosure and allows it to be mounted to poles and fence posts up to 9.5 inches in diameter.
