Indoor / Outdoor Electrical and Electronic Equipment
Industrial Controls and Components
Security and Surveillance Systems
Outdoor use of Indoor Equipment
Protection of Equipment from Theft or Damage
Agriculture Processing Facilities
Mining Operations and Refineries
TheAltelix Vented Steel Weatherproof NEMA Enclosure with 120VAC Power and Equipment Plateis ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

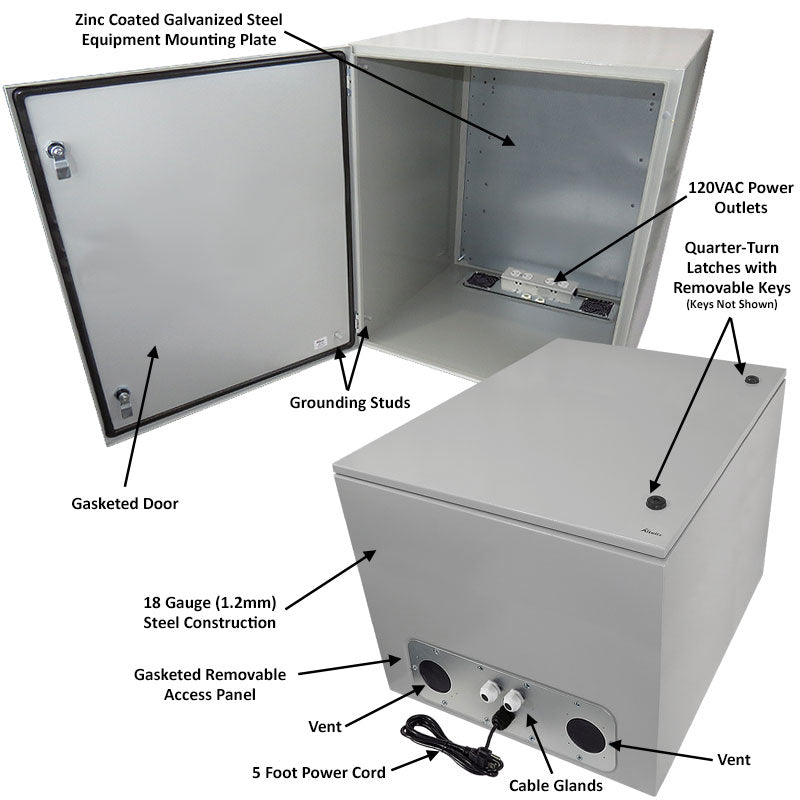

Construction and Features This rugged enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door and enclosure.
Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.
Bonus Aluminum Bottle Opener Key This enclosure now includes ourHN-0008Aluminum Bottle Opener Key. A$9.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!
Removable Power Module The NS242416VA1C features a removable power module that attaches to the bottom of the enclosure. Constructed of rugged aluminum, this can be easily removed for servicing and is fully gasketed to ensure a proper seal. This power module features two pre-wired duplex 120VAC power outlets (4 outlets total) and a pre-wired 5 foot power cord, so no additional wiring is required.
Ventilation To help expel heat from within the enclosure, this model features two 3" vents located on the removable power module.
Galvanized Steel Equipment Plate This configuration consists of the steel NEMA enclosure with hinged door and a 18 Gauge (1.2mm thick) zinc coated galvanized steel plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
Cable Glands The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Mounting Mounting holes are provided inside the enclosure for mounting to a wall or other structure. For pole mounting Altelix has available the optionalNMHS-600-16pole mount kit. This heavy-duty kit features (2) 14 gauge steel mounting brackets and (2) heavy-duty 19 gauge 304 stainless steel adjustable bands which can be used to mount to poles from 4.5" (114.3mm) to 16" (406.4mm) in diameter.
Optional Lockable Latches For additional protection of internal equipment installed, two lockable latches are available. TheHN-0005is a keyed lock set which includes two keys. TheHN-0006allows the enclosure to be securely locked via use of a padlock (not included). Both the HN-0005 and HN-0006 are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.
