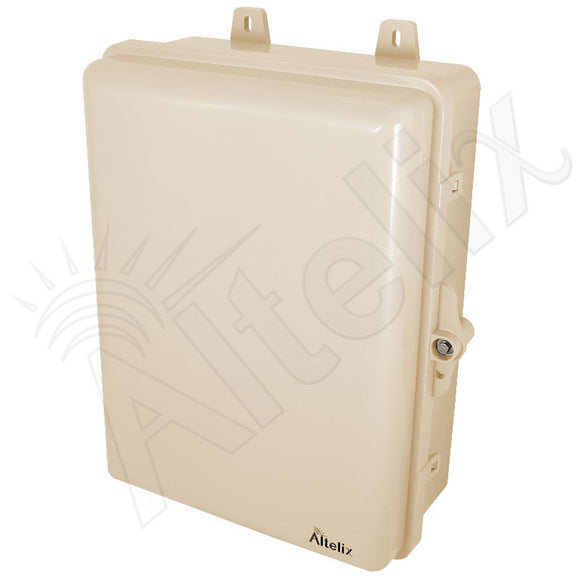

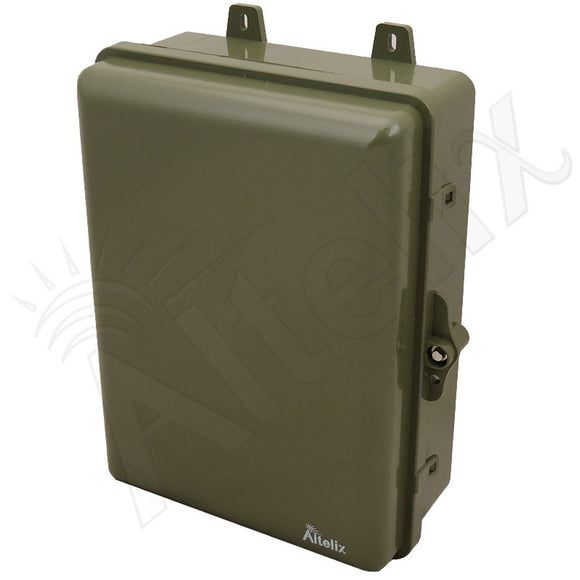

Altelix 12x9x5 IP66 NEMA 4X PC+ABS Weatherproof Utility Box with Hinged Door and Aluminum Mounting Plate

$63.26

SKU: NP120905P Altelix

Features
  • Features a 2.0mm Thick Finished Aluminum Equipment Mounting Plate
  • Includes Cable Grommets Zip Ties, Cable Management Straps and Wall Mounting Hardware
  • Meets NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66
  • Weatherproof and UV Stable
  • Durable Polycarbonate + ABS
  • RF Transparent for Wireless Devices
  • Gasketed Lid
  • Tamper-Proof Locking Screw with Key and Provision for Padlock
  • External Dimensions: 13.1 x 10.2 x 4.7 Inches (334 x 259 x 120 mm)
  • Internal Dimensions: 9.4 x 7.5 x 3.7 Inches (239 x 190 x 95 mm)
  • Optional Pole Mount Kit Available
Applications
  • Multi Purpose Plastic Utility Box
  • Data Wiring and Fiber Optic
  • Cable TV Connections
  • Broadband Demarc Enclosure
  • Low Voltage Wiring Junction Box
  • Outdoor Speaker Wiring
  • LED Controllers
  • IoT Devices
  • WiFi Gear
  • Security and Surveillance Systems
  • Outdoor Weather Protection
  • Protection Against Theft or Damage
  • Warehouses and Public Areas
  • Concealment of Equipment


Weatherproof Polycarbonate + ABS Construction For Extreme Durability

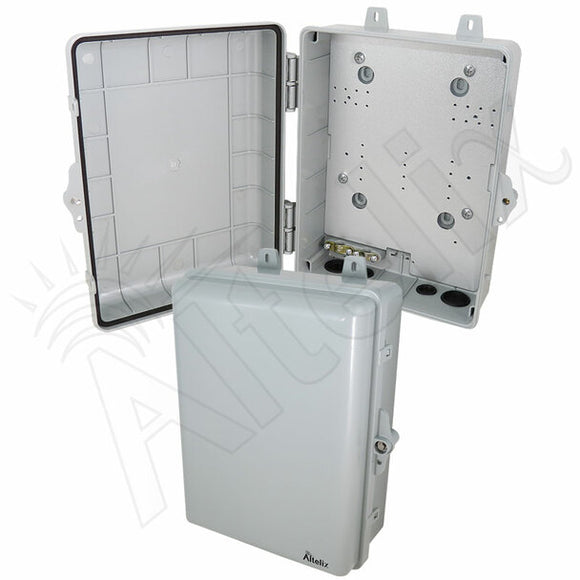

The Altelix NP120905P Plastic Utility Enclosure with Aluminum Equipment Mounting Plate is an industrial quality general purpose weatherproof utility box designed to offer extreme protection for wiring, electronics and wireless devices in harsh environments.

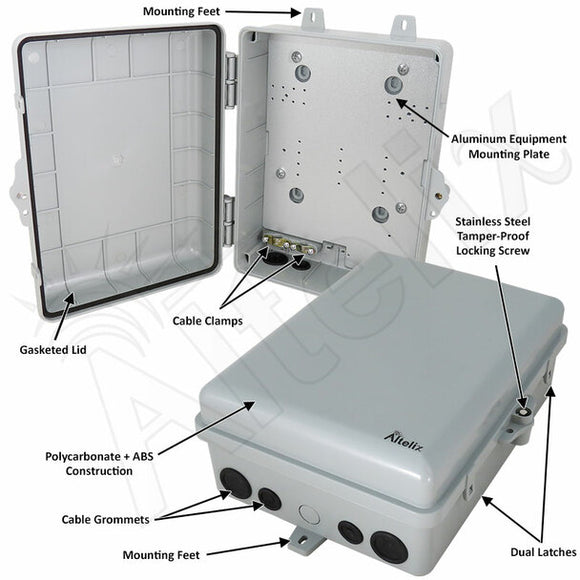

Construction and Features
This enclosure includes a 2.0mm thick finished aluminum equipment mounting plate. The enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. Integrated mounting feet simplify installation. It meets or exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66.

Complete with Cable Grommets and Wire Management Straps
This enclosure includes 4 weatherproof cable grommets. Simply punch out the seal and run your cables. For convenience, the included accessory kit contains wall anchors, zip ties, hook-and-loop wire management straps, plastic wire management loops, door locking key and more.

Pole Mount Available
A pole mounting kit is also available for this enclosure. The NMKG-150-08 attaches to the rear of the enclosure and allows it be mounted to poles and fence posts up to 9.5 inches in diameter.
