Features a 1.5mm Thick Finished Aluminum Equipment Mounting Plate with 120VAC Power Terminal Block
Pre-wired 5 foot Power Cord
Includes Cable Grommets Zip Ties, Cable Management Straps and Wall Mounting Hardware
Meets NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP62 and IP66
Weatherproof and UV Stable
Durable Polycarbonate + ABS
RF Transparent for Wireless Devices
Extra Deep Gasketed Lid
Tamper-Proof Locking Screw with Key and Provision for Padlock
Integral Mounting Feet
External Dimensions: 13.1 x 10.2 x 6.8 Inches (334 x 259 x 172 mm)
Internal Dimensions: 8.5 x 7.5 x 5.8 Inches (216 x 190 x 147 mm)
Optional Pole Mount Kit Available
Multi Purpose Plastic Utility Box
Data Wiring and Fiber Optic
Cable TV Connections
Broadband Demarc Enclosure
Low Voltage Wiring Junction Box
Outdoor Speaker Wiring
Security and Surveillance Systems
Outdoor Weather Protection
Protection Against Theft or Damage
Warehouses and Public Areas
Concealment of Equipment
NEMA 4X Weatherproof Polycarbonate + ABS Construction For Extreme Durability

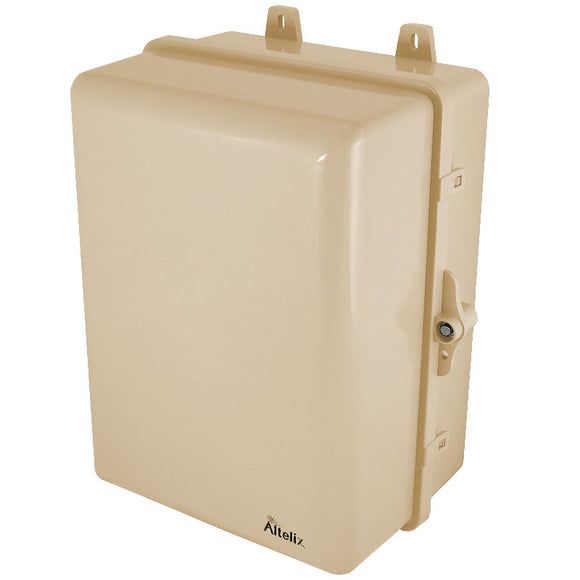

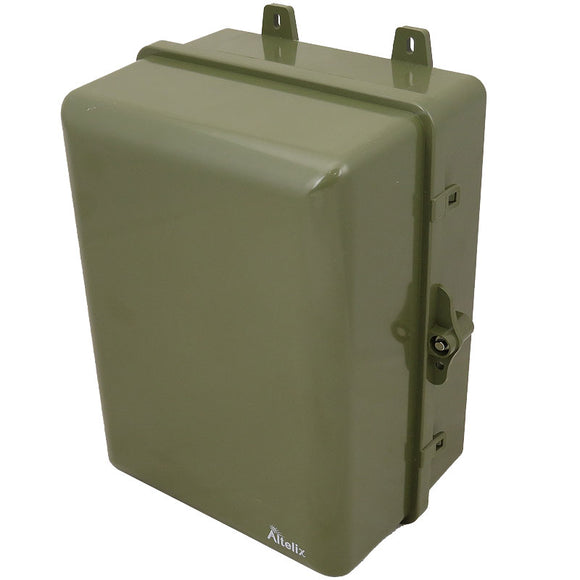

TheAltelix NP120907A1C-0Plastic Utility Enclosure is an industrial quality general purpose weatherproof utility box designed to offer extreme protection for wiring, electronic and wireless devices in harsh environments. It is designed for applications that do not require internal AC outlets.

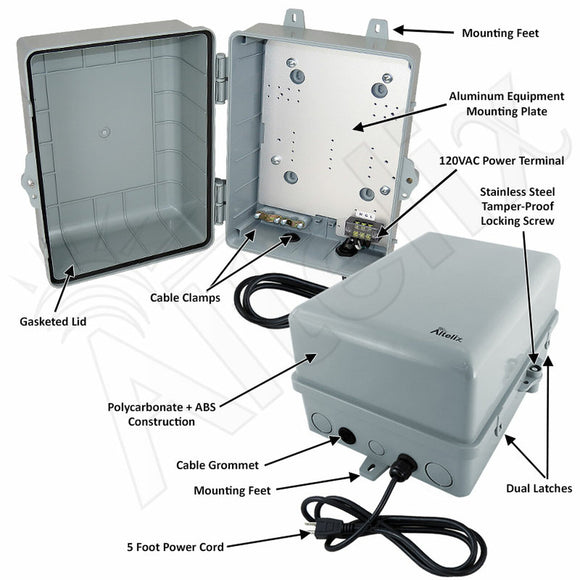

Construction and Features This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. Integrated mounting feet simplify installation. It meets or exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66.

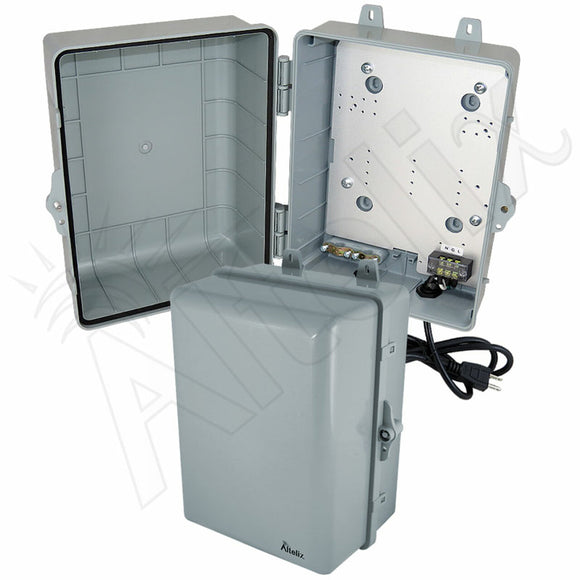

Power This configuration consists of the PC+ABS NEMA enclosure with hinged lid and a 1.5mm thick aluminum plate with a 120VAC power terminal block which can be used to hardwire equipment power cords. A 5 foot pre-wired power cord is included to power the enclosure, so no additional wiring is required. Cable grommets on the enclosure allows cables to be connected to internal devices. Knock-outs are also provided on the enclosure for additional wiring. Extra cable grommets are included with the accessory kit.
Complete with Cable Grommets and Glands and Wire Management Straps For convenience, the included accessory kit contains cable grommets and glands, wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.
Pole Mount Available A pole mounting kit is also available for this enclosure. TheNMKG-150-08attaches to the rear of the enclosure and allows it to be mounted to poles and fence posts up to 9.5 inches in diameter.
