New and Improved!

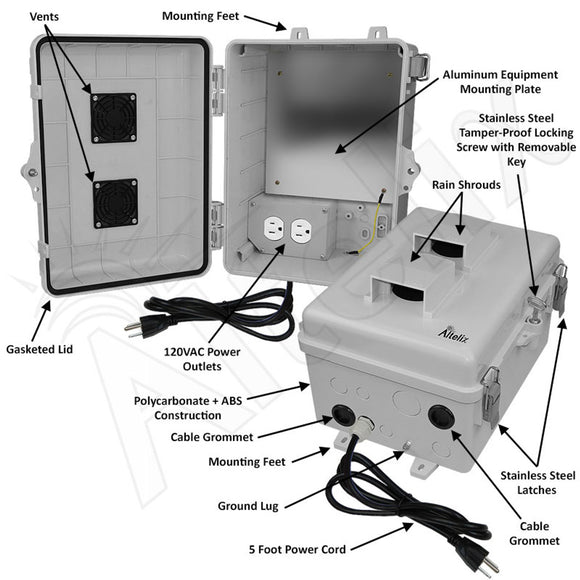

Altelix is excited to offer the newly redesigned NP120907 series enclosures. Some of the new features include:
- Dual stainless steel latches
- Multiple mounting options - (4) external mounting feet and internal mounting points
- Deeper enclosure base
- Increased number of multiple sized knock-out holes provided on bottom of enclosure
- Now with (2) 120VAC power outlets

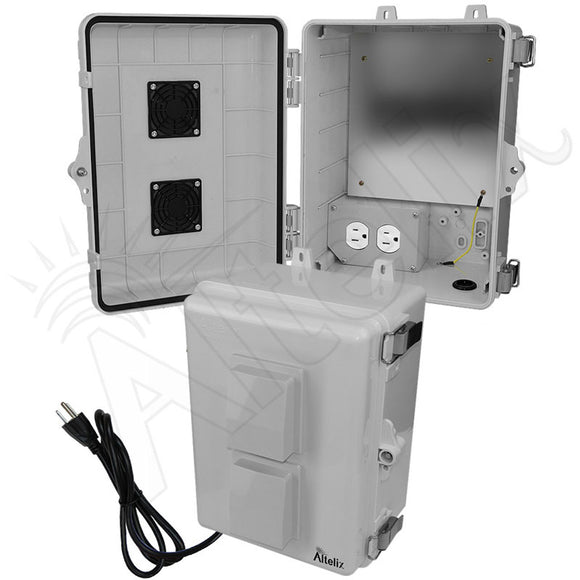

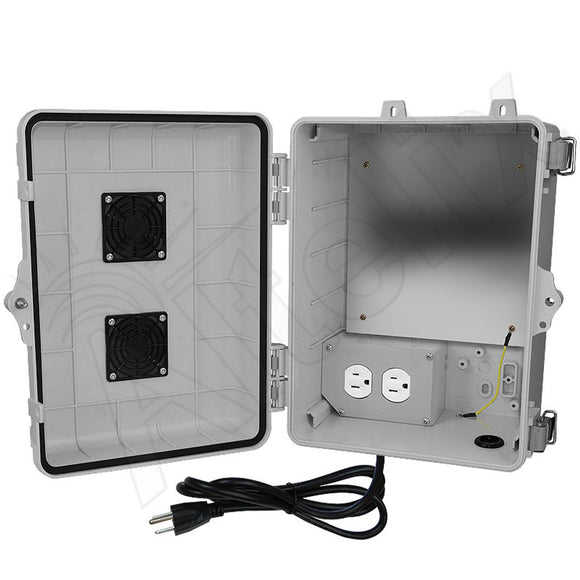

The Altelix NP120907VPA1C NEMA enclosure is simple to install because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. Two internal pre-wired 120VAC power outlets are provided to power your equipment.
Get your project up and running quickly and transition to hard-wired later if needed. The power cord can removed and the power receptacle can be hard-wired by a qualified installer.
Increased Interior Space
This enclosure features an extra deep gasketed lid, over 4 inches deep. With the generous size of this enclosure and extended lid the NP120909VPA1C can accommodate a wide range of equipment.
Ventilation

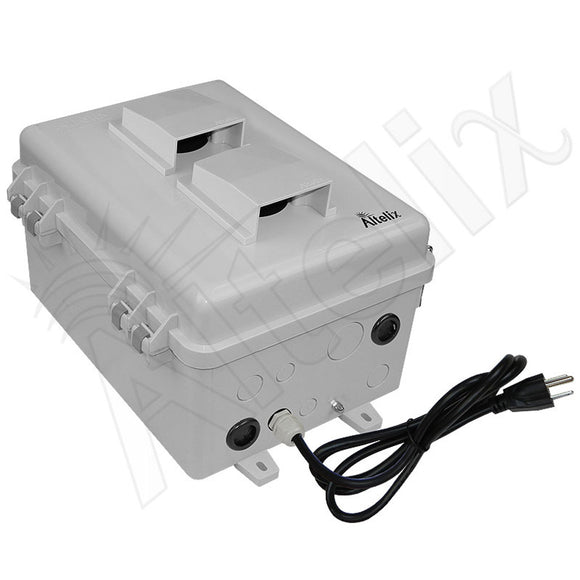

The NP120907VPA1C features two vents with rain shields to help expel heat from inside the enclosure. Screens on the inside of the vents can be removed and cleaned as required.
Aluminum Equipment Mounting Plate
Included with this enclosure is a 1.5mm thick aluminum plate for mounting and securing equipment. The plate can be easily drilled and modified by the installer to suit unique site requirements.
Note: this enclosure is also available with a non-metallic PVC equipment mounting plate (see NP120907VMA1C) and without an equipment mounting plate (see NP120907VA1C).
Secure Your Equipment

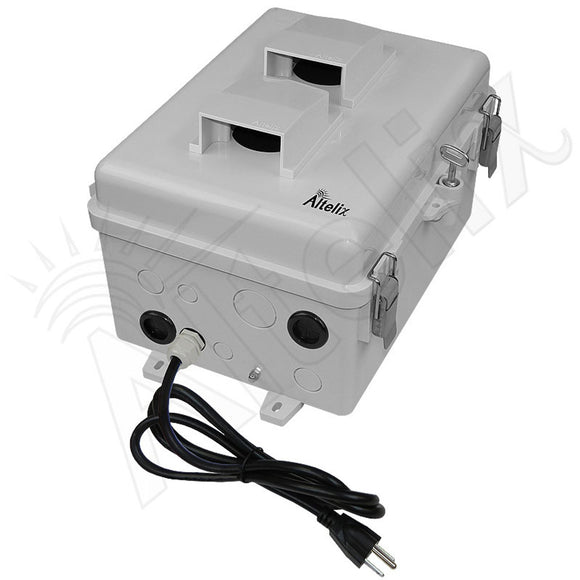

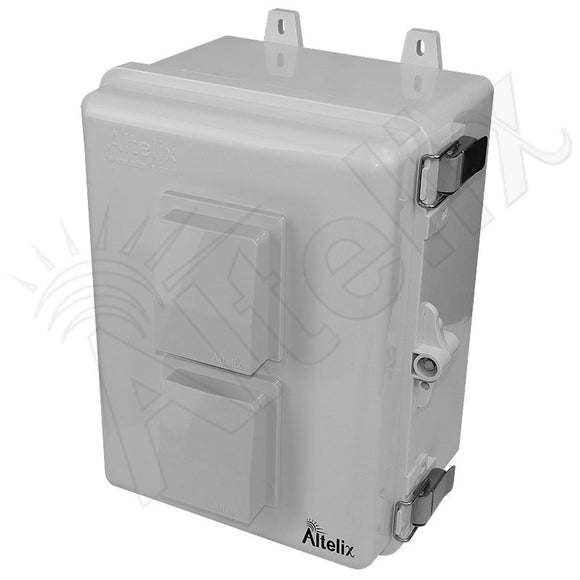

These NP series enclosures feature dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.
Polycarbonate + ABS Protection Built to Last
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements.

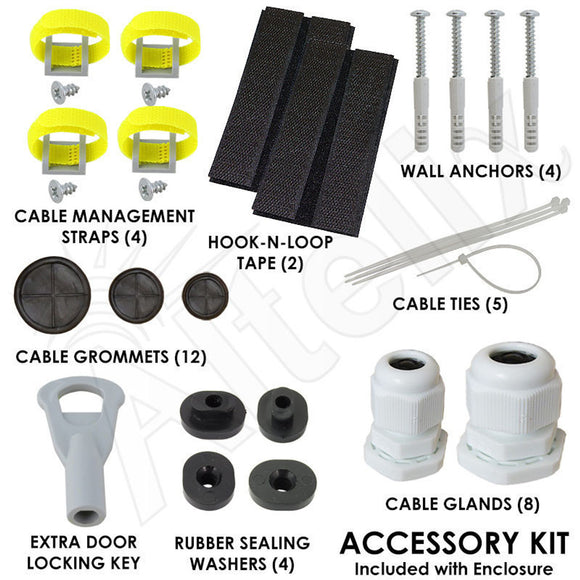

Complete with Cable Grommets and Wire Management Accessories
This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.

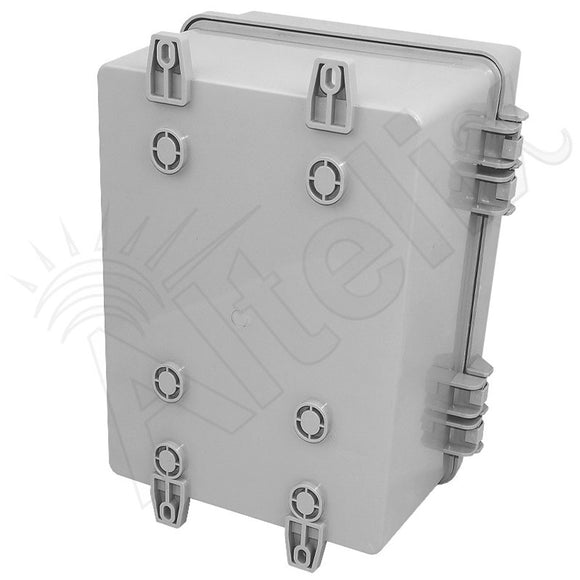

Multiple Mounting Options
This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.
Material | PC+ABS Polycarbonate / ABS Blend |
Color | Gray |
Voltage | 120VAC |
Max Load | 10A @ 120VAC |

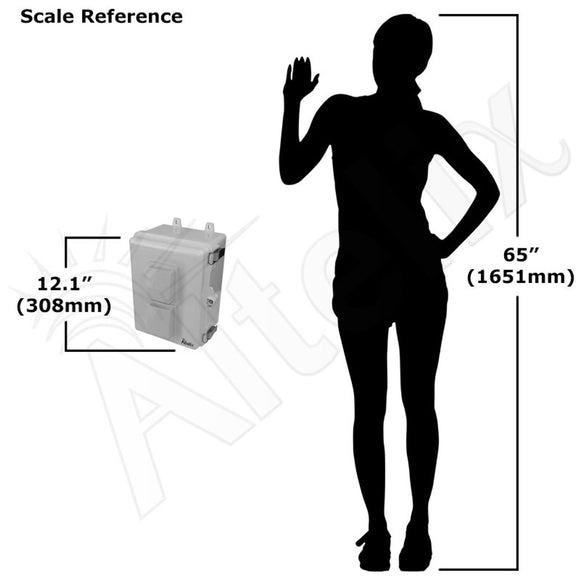

Outer Dimensions (Height x Width x Depth) |
13.0 x 10.2 x 8.2 Inches (332 x 259 x 208 mm) |
Inner Dimensions* (Height x Width x Depth) |
7.8 x 7.1 x 5.5 inches (198 x 180 x 139 mm) |
Mounting Plate Material | 0.06 in. (1.5 mm) Aluminum |
Mounting Plate Dimensions | 8.9 x 8.5 in. (227 x 216 mm) |
Weight | 5.3 lbs. (2.4 kg) |
Power Cord Length | 5 Feet (1.5m) |
Ratings | NEMA Type 3R, 3RX / IP24 |
Flame Rating | Meets UL94-V0 |
Industry Certifications | CE |
Knockout Sizes (Diameter) | (3) 0.62 in. (16 mm) (4) 1.02 in. (26 mm) (1) 1.30 in. (33 mm) |
*Interior dimensions represent maximum space available for equipment. |
