Altelix 12x9x9 Polycarbonate + ABS NEMA 4X Enclosure with Aluminum Equipment Mounting Plate

Altelix 12x9x9 Polycarbonate + ABS NEMA 4X Enclosure with Aluminum Equipment Mounting Plate

Altelix SKU: NP120909P

$82.88

Lead Time: ESTIMATED Lead Time of 1-2 Business Days' Time of Order Entry

Availability: In Stock As of 9/3/24

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at info@enclosurehub.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

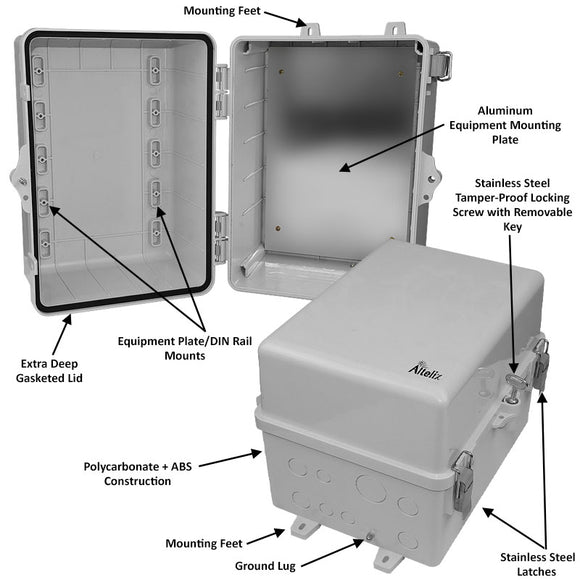

Features
  • New design provides better versatility and security!
  • Features an aluminum equipment mounting plate
  • Durable Polycarbonate + ABS construction
  • Weatherproof and UV Stable
  • Meets NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66
  • Extra deep gasketed lid with dual stainless steel latches
  • Mount additional equipment in lid - mounting bosses provided in lid for use with equipment mounting plates or DIN rails
  • Tamper-Proof locking screw with key and provision for padlock
  • Can be mounted using external mounting feet or internal mounting feet
  • RF transparent for wireless devices
  • Multiple size knock-out holes on bottom of enclosure
  • Includes (2) locking keys, cable grommets, cable glands, zip ties, hook-n-loop tape and wall mounting hardware
  • Optional pole mount kits available
 Applications
  • Indoor / Outdoor WiFi access points and routers
  • Multi purpose utility box
  • Home automation
  • WiFi, LoRa and RFID gear
  • Security and surveillance systems
  • LED controllers
  • IoT devices
  • Network switches
  • Media converters
  • Cable TV and CCTV amplifiers
  • Broadband equipment
  • SCADA remote terminal
  • Outdoor weather protection
  • Protection against theft or damage
  • Warehouses and public areas
  • Concealment of equipment



The Altelix NP120909P NEMA 4X enclosure is ideal for protecting devices from harsh environments and tampering. It features an extra deep gasketed lid, over 4 inches deep. With the generous size of this enclosure and extended lid the NP120909P can accommodate a wide range of equipment.

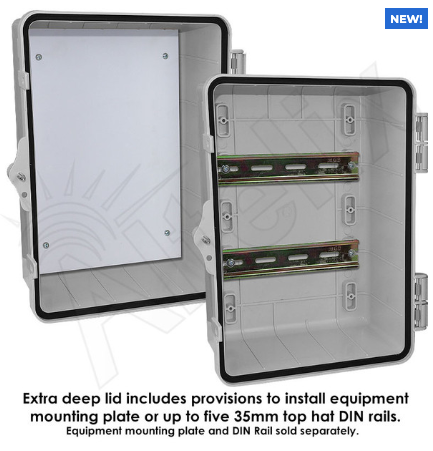

Mount Additional Equipment in Lid
The extra deep lid of this enclosure is designed so that additional equipment can be mounted in the lid for even more versatility. Raised mounting bosses are provided for use with equipment mounting plates or up to (5) Altelix 35mm DIN Rail Kits (sold separately). A large flat section is also provided for use with the hook-n-loop tape included in the accessory kit.

Aluminum Equipment Mounting Plate
Included with this enclosure is a 1.5mm thick aluminum plate for mounting and securing equipment. The plate can be easily drilled and modified by the installer to suit unique site requirements.

Note: this enclosure is also available with a non-metallic PVC equipment mounting plate (see NP120909M) and without an equipment mounting plate (see NP120909).

Secure Your Equipment
These NP series enclosures feature dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.

Polycarbonate + ABS Protection Built to Last
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements. It meets or exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66.

Complete with Cable Grommets and Wire Management Accessories
This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.

Multiple Mounting Options
This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.

Customization
We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
