Features
- Includes Cable Glands, Zip Ties, Cable Management Straps and Wall Mounting Hardware
- Meets NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66
- Weatherproof and UV Stable
- Durable Polycarbonate + ABS
- RF Transparent for Wireless Devices
- Gasketed Lid
- Tamper-Proof Locking Screw with Key and Provision for Padlock
- External Dimensions: 13.0 x 9.5 x 4.0 Inches (330 x 241 x 102 mm)
- Internal Dimensions: 12.1 x 8.7 x 3.3 Inches (307 x 221 x 84 mm)
- Optional Pole Mount Kit Available
|
Applications
- Multi Purpose Plastic Utility Box
- Data Wiring and Fiber Optic
- Cable TV Connections
- Broadband Demarc Enclosure
- Low Voltage Wiring Junction Box
- Outdoor Speaker Wiring
- LED Controllers
- IoT Devices
- WiFi Gear
- Security and Surveillance Systems
- Outdoor Weather Protection
- Protection Against Theft or Damage
- Warehouses and Public Areas
- Concealment of Equipment
|
Weatherproof Polycarbonate + ABS Construction For Extreme Durability

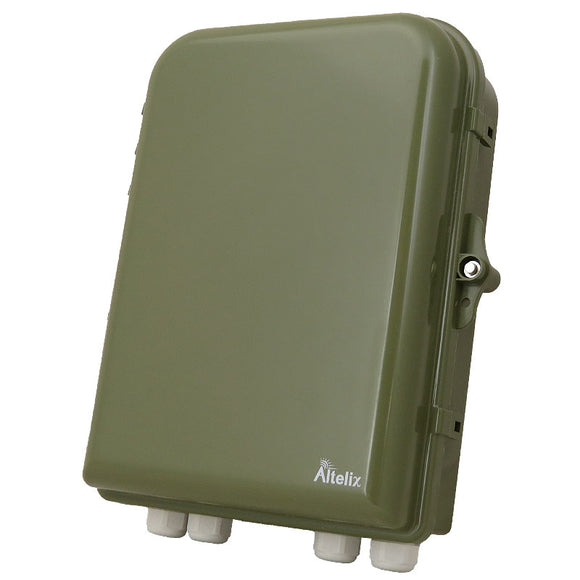

The Altelix NP131004 Plastic Utility Enclosure is an industrial quality general purpose weatherproof utility box designed to offer extreme protection for wiring, electronics and wireless devices in harsh environments.
Construction and Features

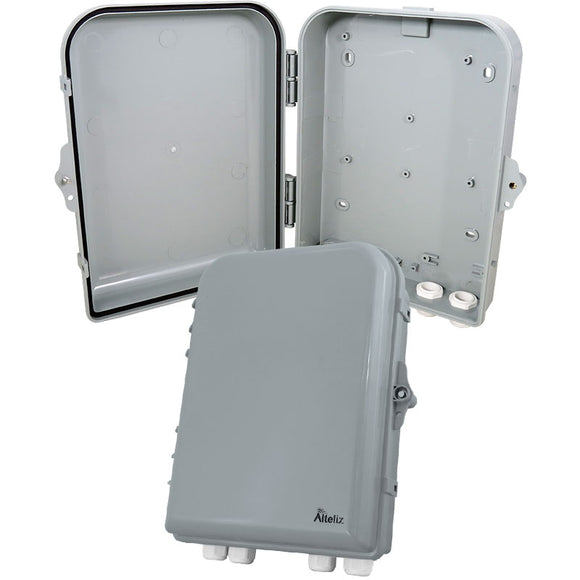

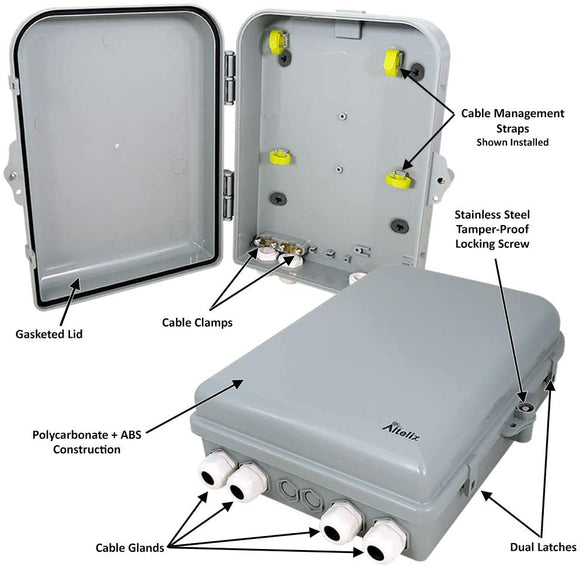

This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. It meets or exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66.
Complete with Cable Glands and Wire Management Straps
This enclosure includes 4 weatherproof cable glands. Simply punch out the seal, run your cable, and hand tighten for a water-tight seal. For convenience, the included accessory kit contains wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.
Pole Mount Available
A pole mounting kit is also available for this enclosure. The NMKG-220-08 attaches to the rear of the enclosure and allows it be mounted to poles and fence posts up to 9.5 inches in diameter.
| Material |
Polycarbonate + ABS |
| Color |
Gray |
| Outer Dimensions |
13.0 x 9.5 x 4.0 Inches
(330 x 241 x 102 mm) |
| Inner Dimensions |
12.1 x 8.7 x 3.3 Inches
(307 x 221 x 84 mm) |
| Weight |
2.0 lbs. (0.9 kg) |
| Ratings |
Meets or Exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66 |
| Flame Rating |
Meets UL94-V0 |
Included Cable Glands
|
(4) M24 x 1.5 |
