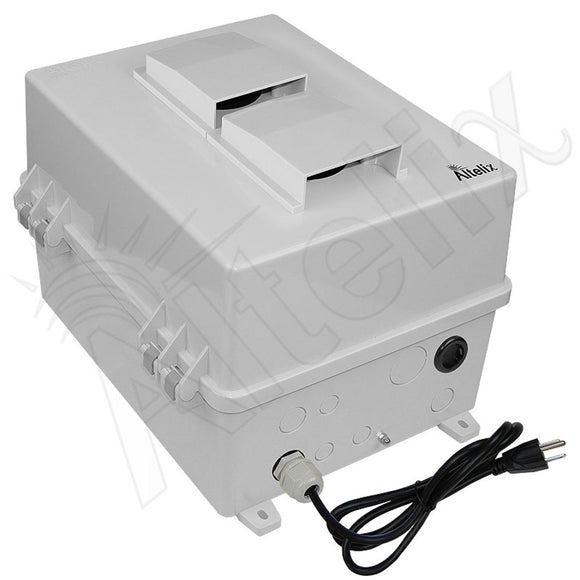

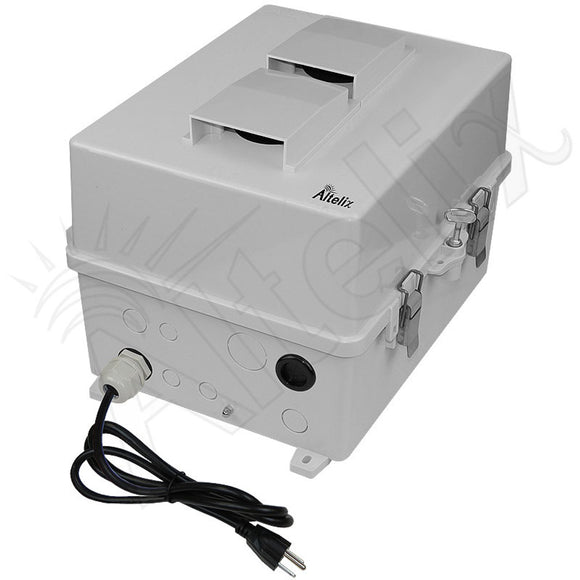

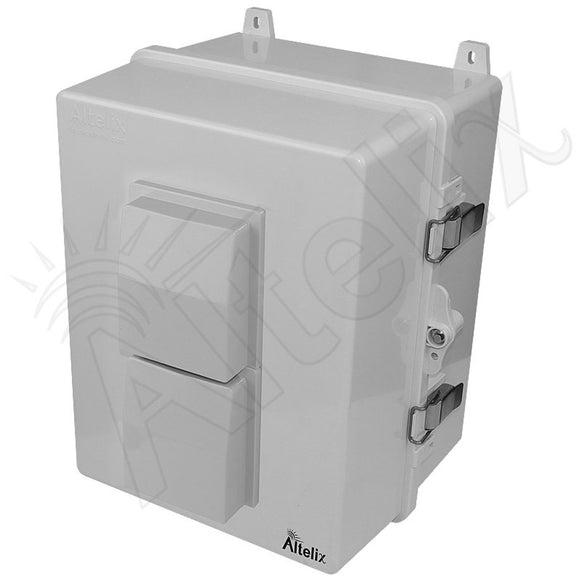

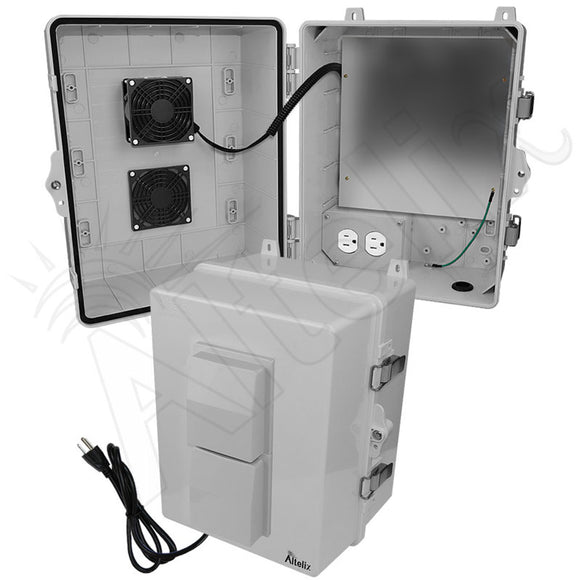

Altelix 14X11x9 Polycarbonate + ABS Vented Enclosure with Aluminum Equipment Mounting Plate, Cooling Fan, 120 VAC Outlets & Power Cord

Altelix SKU: NP141109VPFA1C

$253.93

Lead Time: Estimated Lead Time Is 1-2 Business Days From Time Of Order Entry

Availability: In Stock As Of 9/13/24

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at info@enclosurehub.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

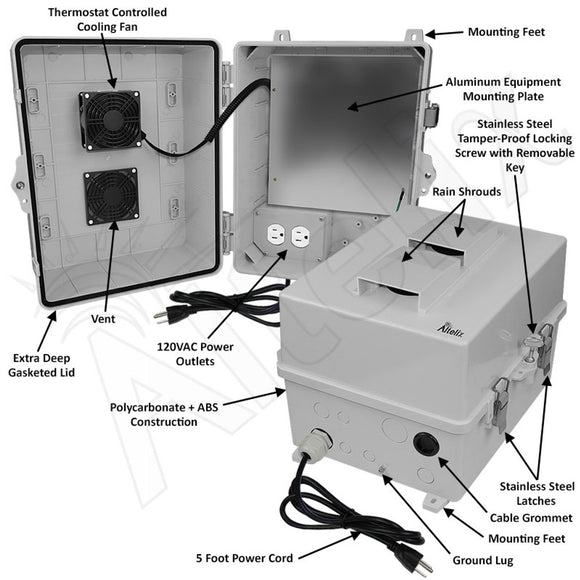

Features
  • New design provides better versatility and security!
  • Thermostat controlled cooling fan to help expel heat
  • Dual vents with rain shields and screens
  • No electrical wiring required
  • (2) Internal pre-wired 120VAC power outlets
  • Pre-wired 5 foot 3-prong power cord
  • Features an aluminum equipment mounting plate
  • Durable Polycarbonate + ABS construction
  • Weatherproof and UV Stable
  • Meets NEMA 3R, 3RX and IP24
  • Extra deep gasketed lid with dual stainless steel latches
  • Tamper-Proof locking screw with key and provision for padlock
  • Can be mounted using external feet or internal mounting points
  • RF transparent enclosure for wireless devices
  • Multiple size knock-out holes on bottom of enclosure
  • Includes (2) locking keys, cable grommets, cable glands, zip ties, hook-n-loop tape and wall mounting hardware
  • Optional pole mount kits available
Applications
  • Indoor / Outdoor WiFi access points and routers
  • Multi purpose utility box
  • Home automation
  • WiFi, LoRa and RFID gear
  • Security and surveillance systems
  • LED controllers
  • IoT devices
  • Network switches
  • Media converters
  • Cable TV and CCTV amplifiers
  • Broadband equipment
  • SCADA remote terminal
  • Outdoor weather protection
  • Protection against theft or damage
  • Warehouses and public areas
  • Concealment of equipment



The Altelix NP141109VPFA1C NEMA enclosure is simple to install because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. Two internal pre-wired 120VAC power outlets are provided to power your equipment.

Get your project up and running quickly and transition to hard-wired later if needed. The power cord can removed and the power receptacle can be hard-wired by a qualified installer.

Increased Interior Space
This enclosure features an extra deep gasketed lid, over 4 inches deep. With the generous size of this enclosure and extended lid the NP141109VPFA1C can accommodate a wide range of equipment.

Cooling Fan Ventilation

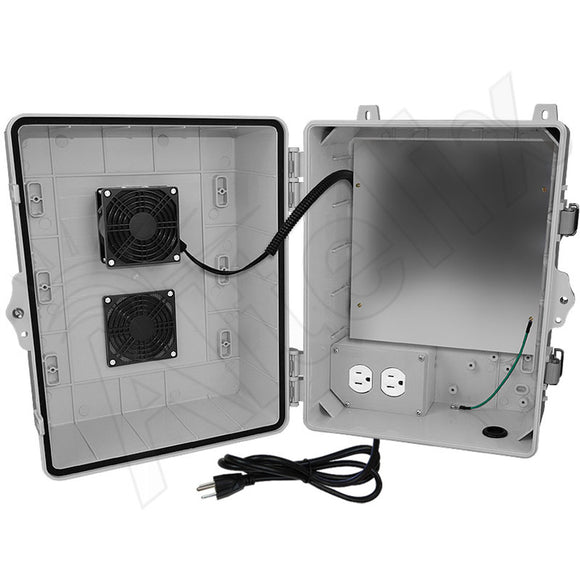

The NP141109VPFA1C features dual vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure.

Aluminum Equipment Mounting Plate
Included with this enclosure is a 1.5mm thick aluminum plate for mounting and securing equipment. The plate can be easily drilled and modified by the installer to suit unique site requirements.

Note: this enclosure is also available with a non-metallic PVC equipment mounting plate (see NP141109VPMA1C) and without an equipment mounting plate (see NP141109VFA1C).

Secure Your Equipment
These NP series enclosures feature dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.

Polycarbonate + ABS Protection Built to Last
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements.

Complete with Cable Grommets and Wire Management Accessories

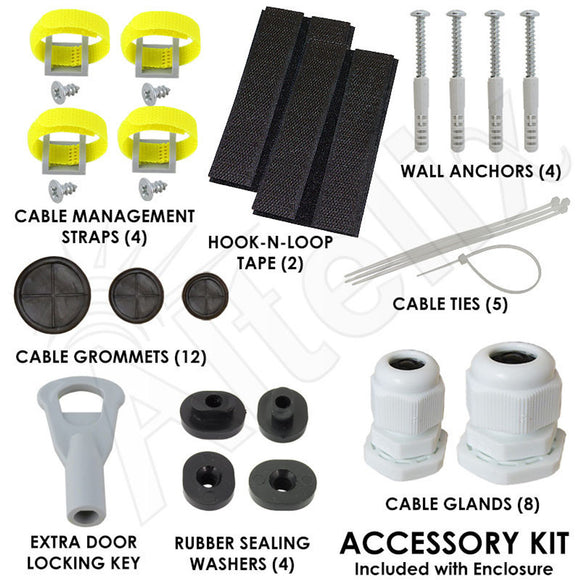

This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.

Multiple Mounting Options

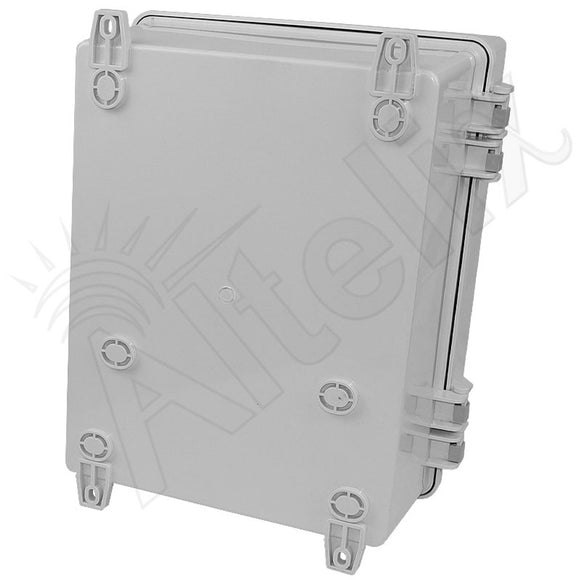

This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.



Material PC+ABS Polycarbonate / ABS Blend
Color Gray
Voltage 120VAC
Max Load 10A @ 120VAC
Cooling Fan Turn-On Temperature 100°F (38°C) ±6°F
Cooling Fan Turn-Off Temperature 79°F (26°C) ±9°F

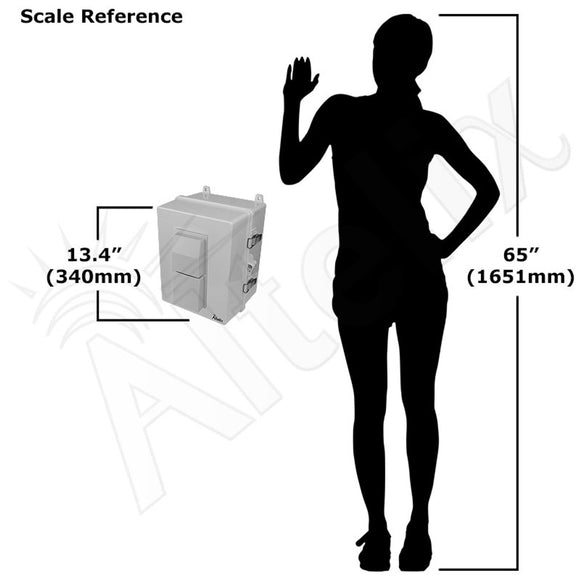

Outer Dimensions
(Height x Width x Depth)
14.2 x 11.6 x 10.2 Inches
(361 x 293 x 258 mm)
Inner Dimensions*
(Height x Width x Depth)
9.5 x 8.7 x 6.6 inches
(241 x 220 x 167 mm)
Mounting Plate Material 0.06 in. (1.5 mm) Aluminum
Mounting Plate Dimensions 8.9 x 8.5 in. (227 x 216 mm)
Weight 6.7 lbs. (3.1 kg)
Power Cord Length 5 Feet (1.5m)
Ratings NEMA Type 3R, 3RX / IP24
Flame Rating Meets UL94-V0
Industry Certifications CE
Knockout Sizes (Diameter) (3) 0.62 in. (16 mm)
(4) 1.02 in. (26 mm)
(1) 1.30 in. (33 mm)
