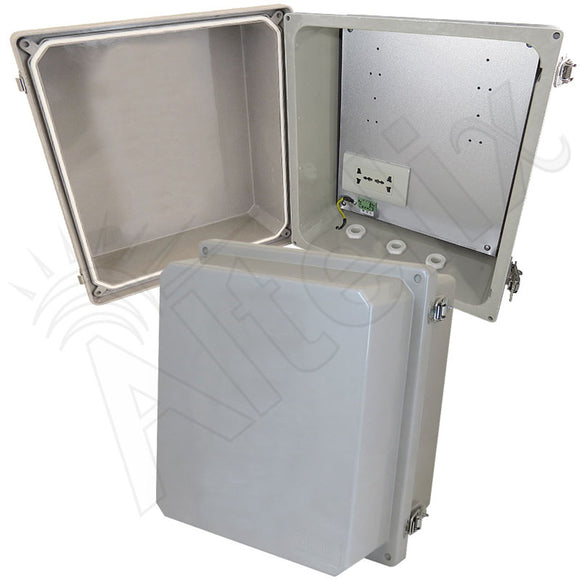

Altelix 14x12x10 Fiberglass Weatherproof NEMA Enclosure with 100-240 VAC Universal Power Outlet

Altelix SKU: NF141210AU

$294.72

07/12/24 important shipping note: Altelix production is running slower than normal. Products labeled as same day shipping are currently having slightly longer lead times. If you're concerned please reach out to customer service. Thank you in advance.

Lead Time: Typically Ships In 1-2 Business Days From Time Of Order Entry

Availability: In Stock As Of 6/21/24

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at info@enclosurehub.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

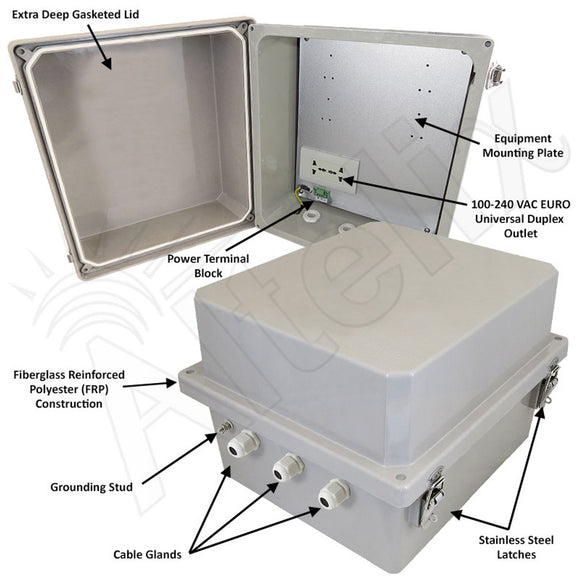

Features
  • Two Universal 100-240VAC Outlets
  • Aluminum Equipment Mounting Plate
  • Extra Deep Extended Lid for Increased Equipment Clearance
  • Stainless Steel Hinges with High Quality 316 Steel Hinge Pins
  • Stainless Steel Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant
  • Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
  • Includes Cable Glands and (4) Stainless Steel Mounting Feet
  • RF Transparent Enclosure
  • Pole Mounting Kit Available
Applications
  • Rapid Deployment Systems
  • Worldwide Operation
  • Harsh Environments
  • WiFi Enclosure
  • RFID Reader Enclosure
  • IoT Sensors
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection from Vandalism
  • Concealment of Electronic Equipment
  • Building Automation Controls
  • Industrial Controls Enclosure

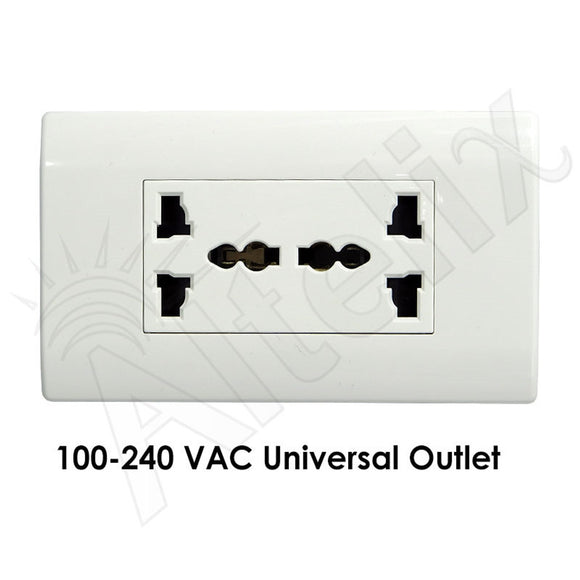

NEMA 4X Protection with Universal Power for Worldwide Operation

The Altelix NF141210AU NEMA 4X enclosure features a 100-240VAC universal power outlet supporting multiple international power standards in addition to the USA:

  • 110VAC 50/60Hz
  • 115VAC 50/60Hz
  • 220VAC 50/60Hz
  • 230VAC 50/60Hz
  • 240VAC 50/60Hz

The universal 100-240 VAC power outlet is compatible with the following plug types:

  • UK/Ireland BS 1363
  • Italy CEI 23-16/VII
  • Denmark Afsnit 107-2-D1
  • Euro plug (2-pin) CEE 7/16
  • Australia Type I
  • India BS 546

For the following plugs types, please refer to the safety notes in the Technical Specs:

  • Swiss (2-pin) SEV 1011
  • Israel SI 32
  • North America (2-pin) NEMA 1-15 and (3-pin) NEMA 5-15
  • Continental Europe (Schuko) CEE 7
  • France/Belgium CEE 7

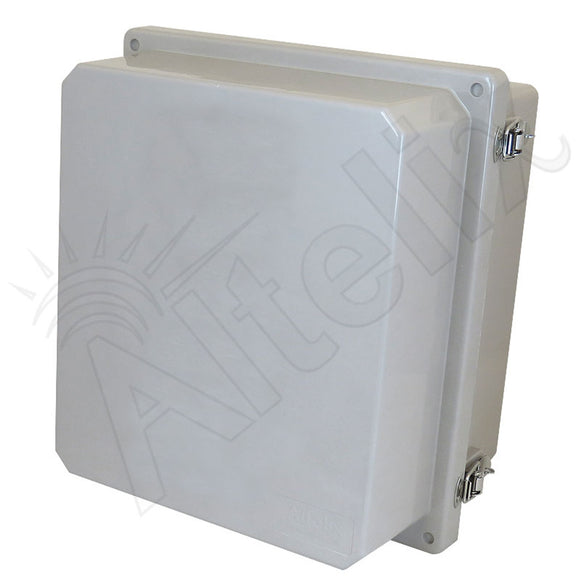

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

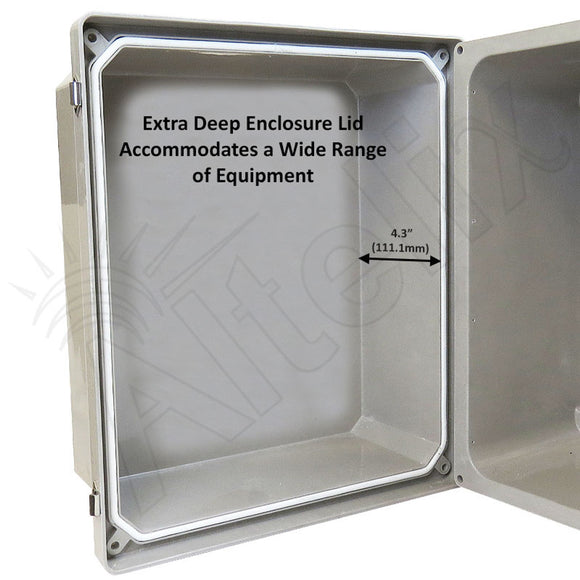

Increased Interior Space
The NF141210 series enclosures feature an extra deep lid, almost 2 inches deeper than our NF141208 series enclosures. With the generous size of this enclosure and extended lid the NF141210 can accommodate a wide range of equipment.

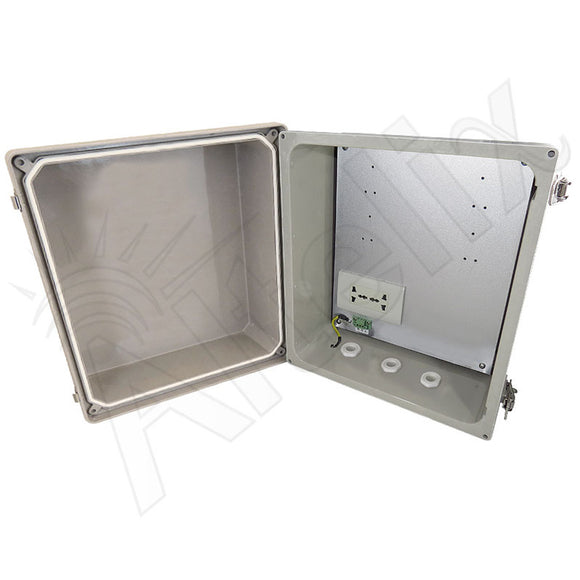

Aluminum Equipment Mounting Plate
The enclosure includes an aluminum equipment mounting plate. The enclosure and plate can be drilled by the installer to suit unique site requirements.

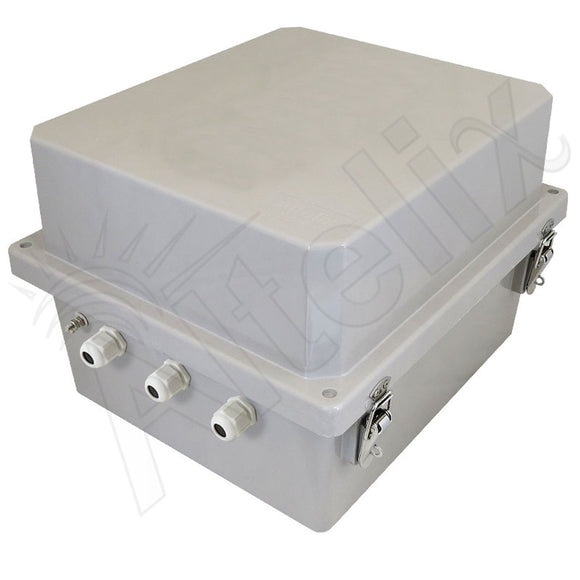

Cable Glands
The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

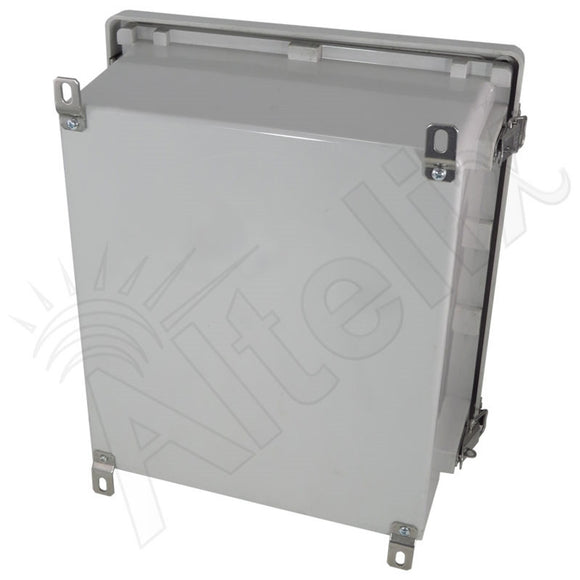

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

Additional Sizes Available
The NF14 series enclosures are available in two additional sizes:
NF141206 Series - 14x12x6
NF141208 Series - 14x12x8

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Notes:
1) Enclosure ports must be properly sealed to maintain NEMA Type 4, 4X / IP66 rating.
2) See drawing for detailed dimensions of maximum space available for equipment.


*Safety Notes:
  1. In some countries (Swiss, Israel, and North America) there may be polarity differences. To avoid possible damage to a device, check the polarity of your power supply and that of your device before plugging it in to the Universal AC outlet and switching it on.
  2. Some devices require they be grounded. Use caution with plugs from Continental Europe (Schuko) and France/Belgium for the Universal AC outlet does not allow for the grounding tabs or grounding pin.



Material Fiberglass Reinforced Polyester
Color Gray
Voltage 110VAC 50/60Hz
115VAC 50/60Hz
220VAC 50/60Hz
230VAC 50/60Hz
240VAC 50/60Hz
Universal Outlet Compatibility UK/Ireland BS 1363
Italy CEI 23-16/VII
Denmark Afsnit 107-2-D1
Euro plug (2-pin) CEE 7/16
India BS 546
Australia Type I
Swiss (2-pin) SEV 1011*
Israel SI 32*
North America (2-pin) NEMA 1-15*
North America (3-pin) NEMA 5-15*
Continental Europe (Schuko) CEE 7*
France/Belgium CEE 7*
Outer Dimensions 15.7 x 13.8 x 10.7 Inches
(401 x 352 x 271 mm)
Inner Dimensions* 13.0 x 11.0 x 8.7 Inches
(330 x 279 x 222 mm)
Mounting Plate Material 0.10 in (2.5 mm) Aluminum
Mounting Plate Dimensions 10.9 x 12.8 in. (276 x 324 mm)
Cable Gland Sizes (1) PG16, (2) PG9
Weight 12.4 lbs. (5.6 kg)
Ratings NEMA Type 4, 4X / IP66
Flame Rating UL94-5V
