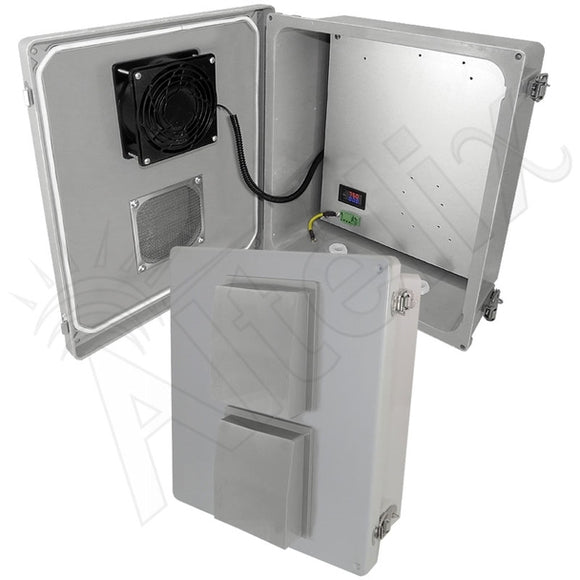

Altelix 14x12x6 Fiberglass Weatherproof Vented NEMA Enclosure with 12 VDC Cooling Fan & Digital Temperature Controller

$334.99

SKU: NF141206VFD1-DF Altelix

Features
  • 12VDC Cooling Fan with Programmable Digital Temperature Controller
  • Two (2) 4" Vents with Rain Shields and Screens
  • Removable Terminal Block
  • Aluminum Equipment Mounting Plate
  • Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant
  • NEMA Type 3R, 3RX / IP24 Rated
  • Includes Cable Glands and Stainless Steel Mounting Feet
  • RF Transparent Enclosure
  • Pole Mounting Kit Available
Applications
  • Rapid Deployment Systems
  • Solar Equipment
  • Vehicle Mounted Equipment
  • Battery Powered Equipment
  • Battery and Charger Box
  • Harsh Environments
  • IoT Sensors
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection from Vandalism
  • Concealment of Electronic Equipment
  • Building Automation Controls
  • Industrial Controls Enclosure

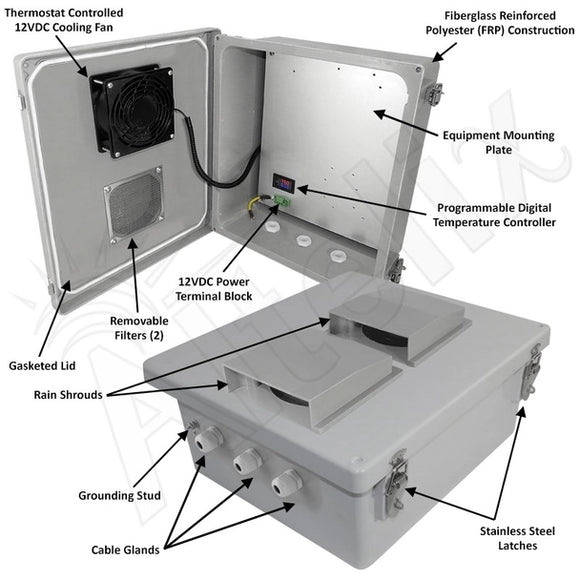

12 VDC Powered Fan Cooled NEMA Enclosure

The Altelix NF141206VFD1-DF features two 4" vents and a 12VDC thermostat controlled cooling fan which helps maintain lower internal temperatures. Rain shrouds keep rain water from entering the enclosure while allowing ventilation for your equipment.

Programmable Digital Temperature Controller
The operation of the cooling fan can be controlled by the programmable digital temperature controller accessible inside the the enclosure. The fan can be programmed to turn on and off within a set temperature range set by the user. The controller features a color digital readout and can be programmed for Fahrenheit or Celsius.

This enclosure can be powered from 12VDC solar and battery power sources, and features a terminal block for easy wiring.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure accommodates a wide range of equipment.

Cable Glands
The enclosure features three unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Terminal Block
This enclosure features our top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel ( NMKS-300-08) and stainless steel (NMKX-300-08).

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
