Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
Fiberglass Reinforced Polyester, FRP
Weatherproof, UV Stable and Highly Corrosion Resistant
NEMA Type 3R, 3RX / IP24 Rated
Includes Cable Glands and Stainless Steel Mounting Feet
RF Transparent Enclosure
Pole Mounting Kit Available
RFID Reader Enclosure
SCADA Remote Terminal Unit
Security and Surveillance Systems
Outdoor use of Indoor Equipment
Protection from Vandalism
Concealment of Electronic Equipment
Building Automation Controls
Industrial Controls Enclosure
Battery and Charger Box

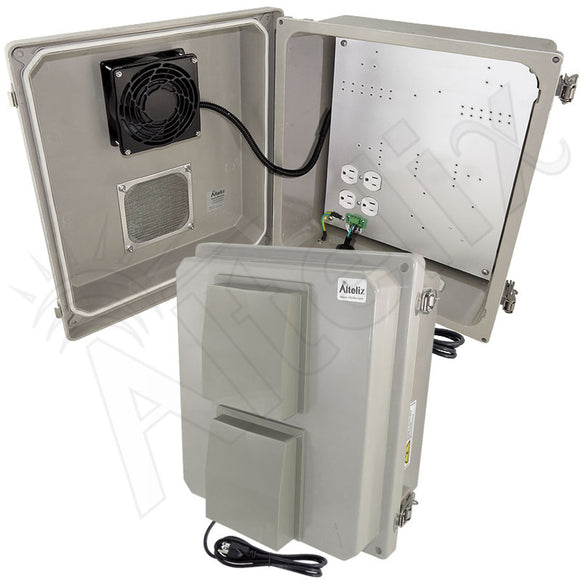

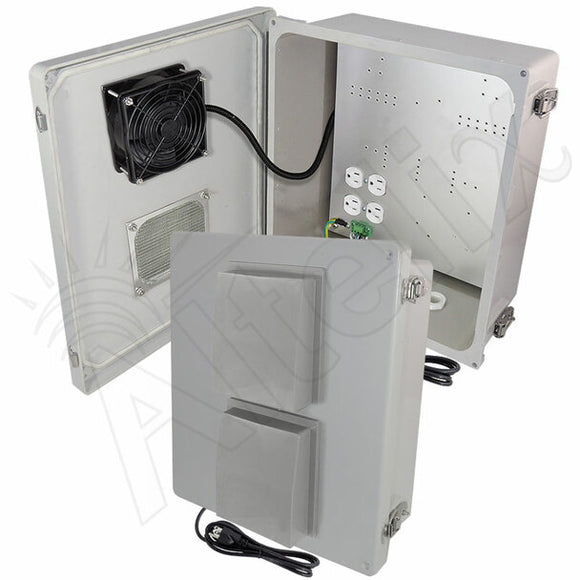

85°F Fan Cooled Vented Enclosure with Plug & Play Power for Rapid Deployment
TheAltelix Fan Cooled Vented NEMA Enclosureis ideal for rapid deployment because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The aluminum equipment mounting plate features four pre-wired 120VAC power outlets for your equipment.
Get your project up and running quicklyand transition to hard-wired later if needed. The power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.

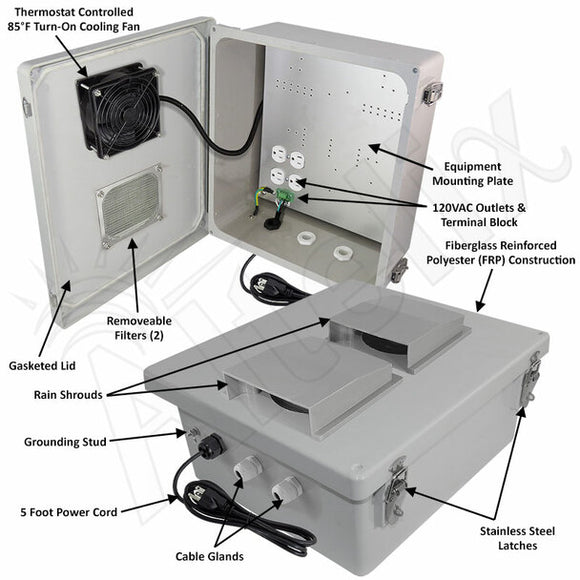

85°F (30°C) Fan Cooling with Thermostat Control This enclosure features two 4" vents and a thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 85°F (30°C) and turns off when it drops to 59°F (15°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for your equipment. The fan is wired internally, leaving all 4 power outlets available for installed equipment.
Extreme Protection Built to Last This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure accommodates a wide range of equipment.
Cable Glands The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Mounting Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel (NMKS-300-08) and stainless steel (NMKX-300-08).
