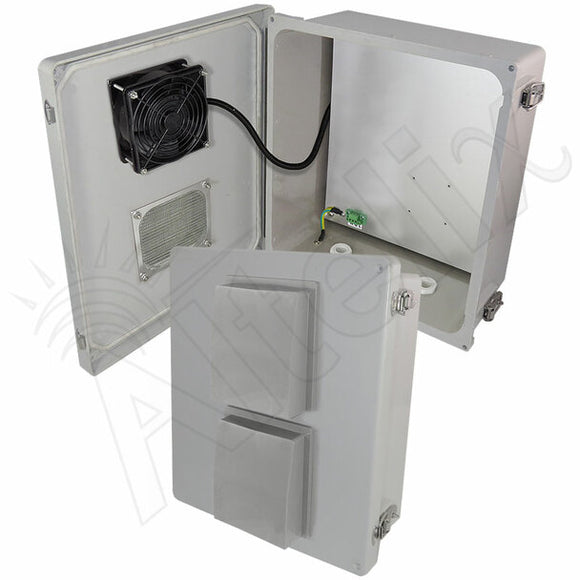

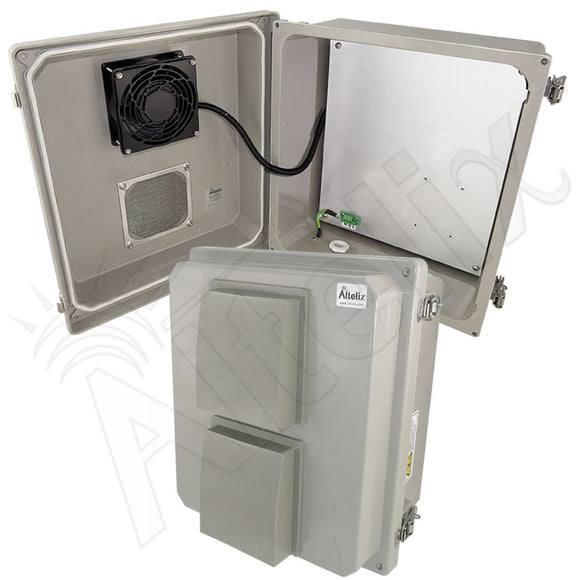

Altelix Fiberglass Weatherproof Vented NEMA Enclosure with 24 VDC Cooling Fan

Altelix Fiberglass Weatherproof Vented NEMA Enclosure with 24 VDC Cooling Fan

Altelix SKU: NF141206VFD2

$244.72

Lead Time: TYPICALLY Ships Same Day on Orders Placed before 11:00AM EST

Availability: In Stock as of 1/29/24

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at info@enclosurehub.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.


Features
  • 24VDC Thermostat Controlled Cooling Fan
  • Two (2) 4" Vents with Rain Shields and Screens
  • Removable Terminal Block
  • Aluminum Equipment Mounting Plate
  • Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant
  • NEMA Type 3R, 3RX / IP24 Rated
  • Includes Cable Glands and Stainless Steel Mounting Feet
  • RF Transparent Enclosure
  • Pole Mounting Kit Available
 Applications
  • Rapid Deployment Systems
  • Solar Equipment
  • Vehicle Mounted Equipment
  • Battery Powered Equipment
  • Battery and Charger Box
  • Harsh Environments
  • IoT Sensors
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection from Vandalism
  • Concealment of Electronic Equipment
  • Building Automation Controls
  • Industrial Controls Enclosure


24 VDC Powered Fan Cooled NEMA Enclosure

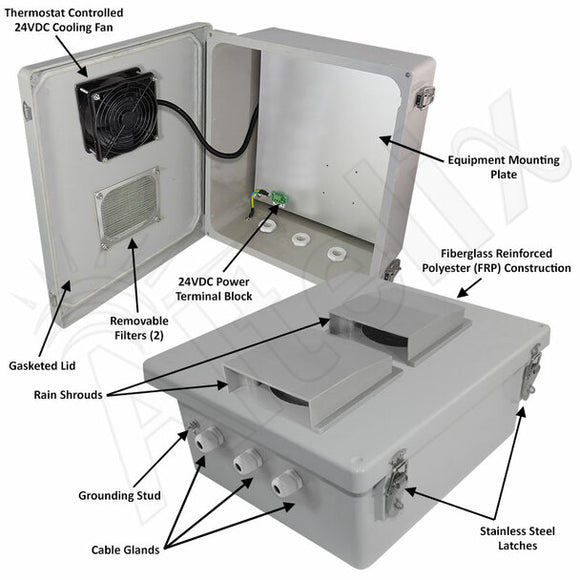

The Altelix Fiberglass Weatherproof Vented NEMA Enclosure with 24 VDC Cooling Fan features two 4" vents and a 24VDC thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for your equipment.

This enclosure can be powered from 24VDC solar and battery power sources, and features a terminal block for easy wiring.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure accommodates a wide range of equipment.

Cable Glands
The enclosure features three unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Terminal Block
This enclosure features our top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel (NMKS-300-08) and stainless steel (NMKX-300-08).

Optional SLA Battery Shelf
The NHP-SLA-01 is an aluminum shelf designed for use with SLA type batteries. The shelf can be easily installed via (4) pre-tapped holes provided on the equipment mounting plate. The included strap secures the battery firmly on the shelf.
