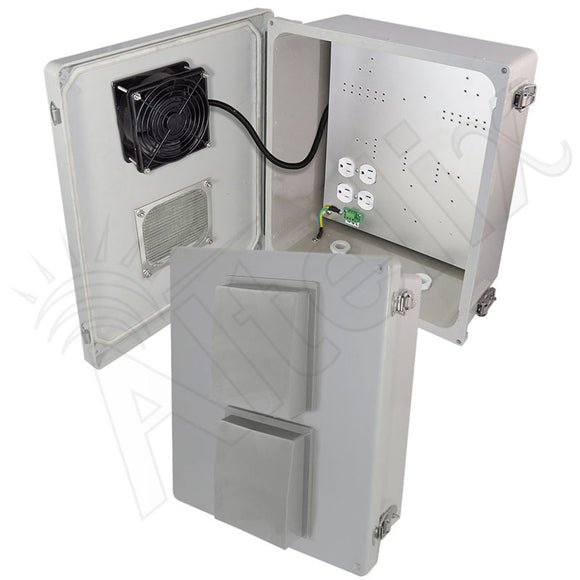

Altelix 14x12x6 Fiberglass Weatherproof Vented NEMA Enclosure with Cooling Fan and 120 VAC Outlets

$269.99

SKU: NF141206VFA1 Altelix

Features
  • Thermostat Controlled Cooling Fan
  • Two (2) 4" Vents with Rain Shields and Screens
  • (4) Pre-Wired 120VAC Outlets
  • Removable 120VAC Terminal Block
  • Aluminum Equipment Mounting Plate
  • Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant
  • NEMA Type 3R, 3RX / IP24 Rated
  • Includes Cable Glands and Stainless Steel Mounting Feet
  • RF Transparent Enclosure
  • Pole Mounting Kit Available
  • Proudly Made Here in the USA with Global Materials
Applications
  • Rapid Deployment Systems
  • Harsh Environments
  • WiFi Enclosure
  • RFID Reader Enclosure
  • IoT Sensors
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection from Vandalism
  • Concealment of Electronic Equipment
  • Building Automation Controls
  • Industrial Controls Enclosure
  • Battery and Charger Box

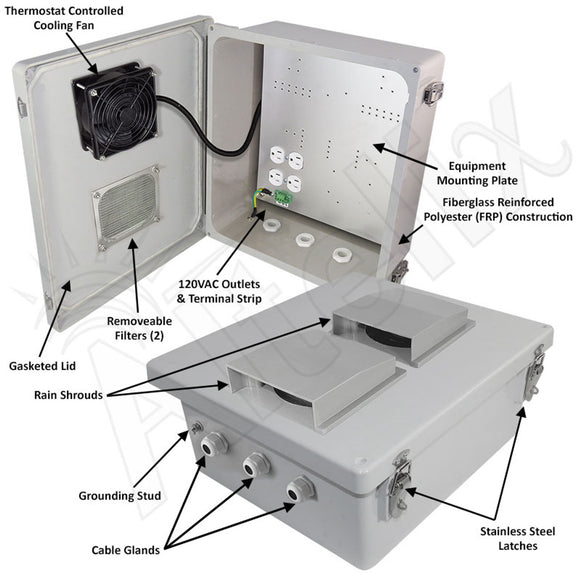

Fan Cooled NEMA Enclosure with 120VAC Power Outlets

The Altelix NF141206VFA1 features two 4" vents and a thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for installed equipment.

This enclosure provides four pre-wired 120VAC power outlets and a terminal strip, for easy wiring by a qualified installer. The fan is wired internally, leaving all 4 power outlets available for installed equipment.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure accommodates a wide range of equipment.

Cable Glands
The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Removable Terminal Block
This enclosure features our 120VAC top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel (NMKS-300-08) and stainless steel (NMKX-300-08).

Material Fiberglass Reinforced Polyester
Color Gray
Voltage 120VAC
Max Load 15A @ 120VAC
Terminal Block Wire Range 12-18 AWG
Terminal Block Wire Strip Length 6-7mm
Cooling Fan Turn-On Temperature 100°F (38°C)
Cooling Fan Turn-Off Temperature 79°F (26°C)
Outer Dimensions 15.7 x 13.8 x 6.5 Inches
(401 x 352 x 164 mm)
Inner Dimensions 13.87 x 11.97 x 6.2 Inches
(352 x 304 x 154 mm)
Mounting Plate Material 0.10 in (2.5 mm) Aluminum
Mounting Plate Dimensions 10.9 x 12.8 in. (276 x 324 mm)
Weight 12.0 lbs. (5.4 kg)
Ratings NEMA Type 3R, 3RX / IP24
Flame Rating UL94-5V
