Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
Fiberglass Reinforced Polyester, FRP
Weatherproof, UV Stable and Highly Corrosion Resistant
NEMA Type 3R, 3RX / IP24 Rated
Includes Cable Glands and Stainless Steel Mounting Feet
RF Transparent Enclosure
Pole Mounting Kit Available
Rapid Deployment Communications
Emergency Communications Systems
RFID Reader Enclosure
SCADA Remote Terminal Unit
Security and Surveillance Systems
Outdoor Use of Indoor Equipment
Protection from Vandalism
Concealment of Electronic Equipment
Building Automation Controls
Industrial Controls Enclosure
Battery and Charger Box
Vented Enclosure with Plug and Play Power for Rapid Deployment

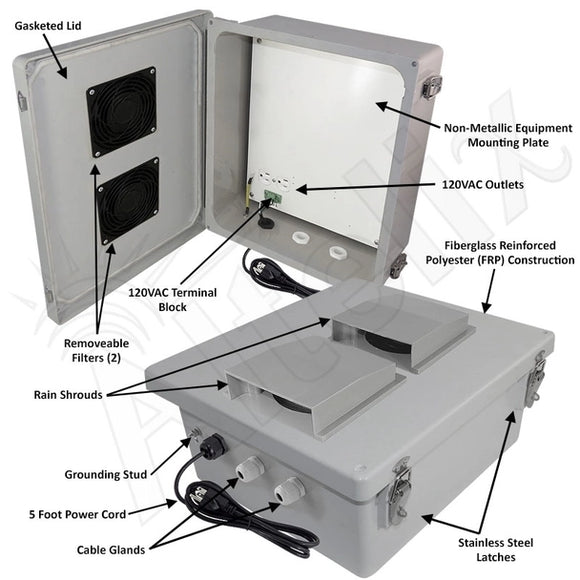

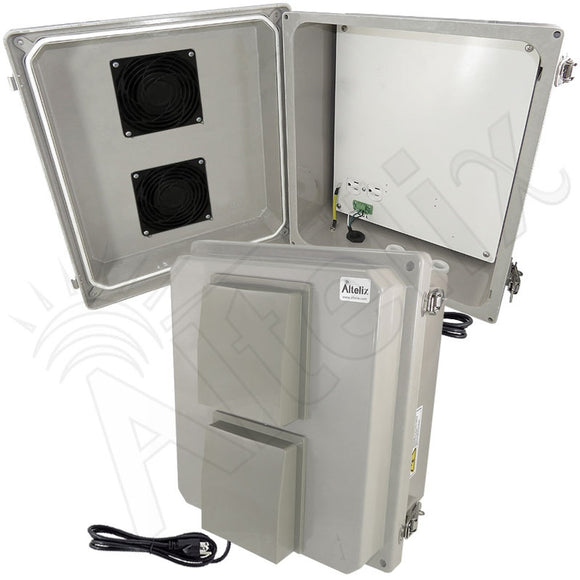

TheAltelix Fiberglass Weatherproof Vented WiFi NEMAenclosure is ideal for rapid deployment because no wiring is required, Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The 0.20" (5mm) thick polyester non-metallic RF transparent equipment mounting plate features two pre-wired 120VAC power outlets for your equipment.
Get your project up and running quicklyand transition to hard-wired later if needed. The power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.
Wireless Compatibility This RF transparent enclosure and non-metallic equipment mounting plate are ideal for wireless applications including WiFi, RFID, iOT, Cellular and more. The non-metallic materials will not interfere with the operation of wireless gear. The generous size of this enclosure accommodates a wide range of equipment.
Vented NEMA Enclosure This enclosure features two 4 inch air vents covered by rain shields, allowing ventilation of installed equipment or batteries while maintaining weatherpoof protection.
Extreme Protection Built to Last This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. It can be easily drilled and modified by the installer as needed. The generous size of this enclosure accommodates a wide range of equipment.
Cable Glands The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Mounting Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel (NMKS-300-08) and stainless steel (NMKX-300-08).
