Altelix 14x12x8 Fiberglass Weatherproof Vented NEMA Enclosure for Cradlepoint® R500-PLTE, IBR600 and IBR900 Series LTE Routers with Cooling Fan, 120 VAC Outlets & Power Cord

Altelix SKU: NF14VFA1C-CDP2


  • Designed for use with Cradlepoint® R500-PLTE, IBR600 and IBR900 Series LTE Routers
  • Generous Size of Enclosure Provides Space for Additional Equipment Such as a Digital Signage Players
  • No Electrical Wiring Required
  • Thermostat Controlled Cooling Fan
  • Two (2) 4" Vents with Rain Shields and Screens
  • (4) Pre-Wired 120VAC Outlets with Pre-Wired Power Cord
  • Aluminum Equipment Mounting Plate
  • Extended Lid for Increased Equipment Clearance
  • Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant
  • NEMA Type 3R, 3RX / IP24 Rated
  • Includes Cable Glands and Stainless Steel Mounting Feet
  • RF Transparent Enclosure
  • Pole Mounting Kit Available
  • Protection of Equipment from Theft and Vandalism
  • Concealment of Electronic Equipment
  • Rapid Deployment
  • Emergency Networks
  • Harsh Environments
  • IoT Applications
  • M2M (Machine to Machine) Applications
  • Industrial Networks
  • Digital Signage Installations
  • Surveillance Systems
  • For Use With Cradlepoint® LTE Routers:
    R500-PLTE LTE Router
    IBR600B LTE Router
    IBR650B LTE Router
    IBR600C LTE Router
    IBR650C LTE Router
    IBR900 LTE Router
    IBR950 LTE Router

Industrial Grade All Weather Protection For Cradlepoint® LTE Routers

Designed to provide the ultimate protection for Cradlepoint® R500-PLTE, IBR600 and IBR900 Series LTE Routers, this fan cooled enclosure is easy to install because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The aluminum equipment mounting plate features four pre-wired 120VAC power outlets for powering the Cradlepoint® LTE router and any additional equipment installed in the enclosure such as a digital signage multimedia player.

Get your project up and running quickly
and transition to hard-wired later if needed. The power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.

Plug and Play Setup

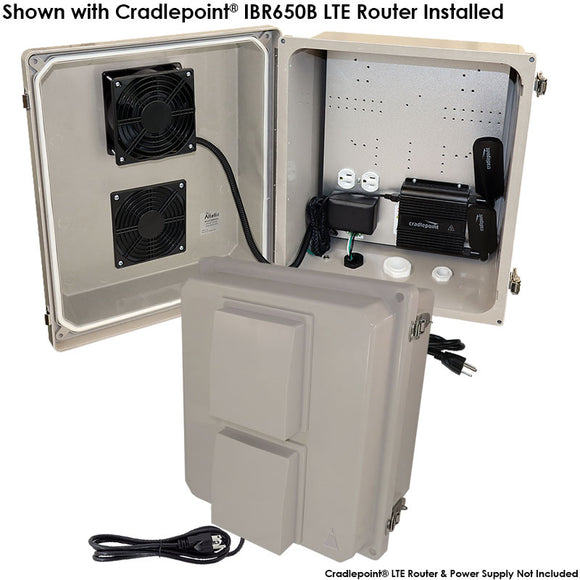

The NF14VFA1C-CDP2 enclosure provides easy plug-n-play installation. The equipment mounting plate is pre-drilled to except the Cradlepoint® LTE router. Once the router is securely mounted to the plate, connect the power supply to the internal 120VAC power outlet. Cable glands on the enclosure allows cables to be connected to the device. Simply plug the enclosure's 5 foot power cord into an outdoor outlet and you are up and running. The generous size of this enclosure and extended lid provides space for additional equipment to be installed such as the Brightsign® and NovaStar® multimedia players. This enclosure is compatible with the following Cradlepoint® LTE Routers:

  • R500 Series - Model: R500-PLTE
  • IBR600 Series - Model: IBR600B
  • IBR600 Series - Model: IBR650B
  • IBR600 Series - Model: IBR600C
  • IBR600 Series - Model: IBR650C
  • IBR900 Series - Model: IBR900
  • IBR900 Series - Model: IBR950

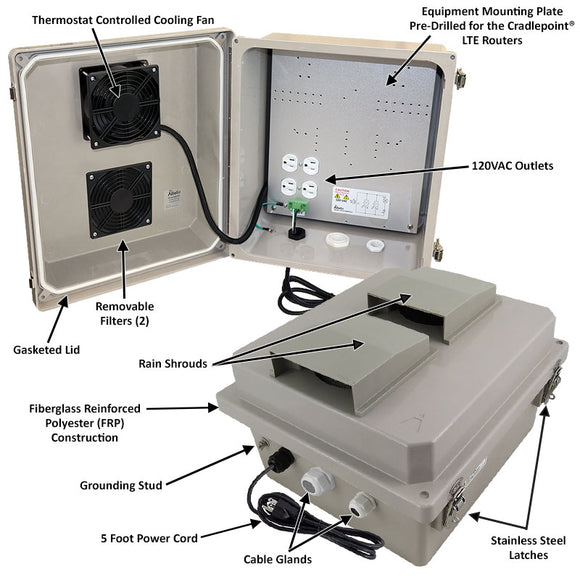

Fan Cooling with Thermostat Control
This enclosure features two 4" vents and a thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for installed equipment. The fan is wired internally, leaving all 4 power outlets available for installed equipment.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.

Cable Glands Allow Pre-Terminated Cables To Be Used
The enclosure features two unique PG-16 cable glands with a closed inner seal. One for a HDMI cable and the other for USB or Ethernet cables. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal. Both these cable glands allow pre-terminated HDMI, USB and Ethernet cables to be used.

Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available. See available accessories when adding to cart.

In addition to this standard enclosure, Altelix can custom design and manufacture enclosures for your unique digital signage requirements. We offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
