Features
|
Applications
|
Weatherproof Polycarbonate + ABS Construction For Extreme Durability

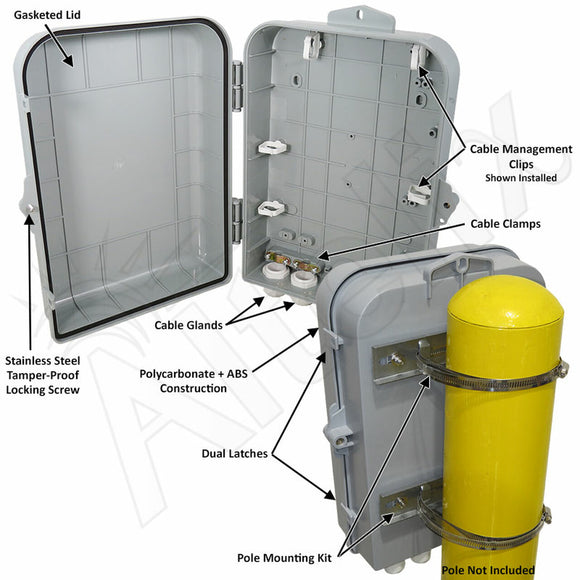

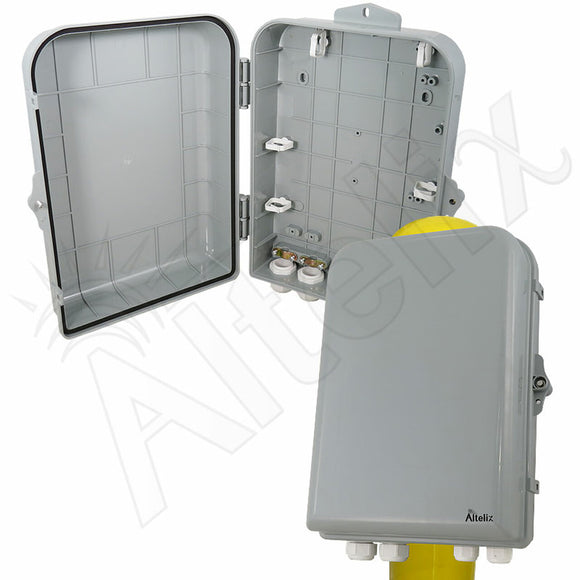

The Altelix NP151005-PKIT Plastic Utility Enclosure is an industrial quality general purpose weatherproof utility box designed to offer extreme protection for wiring, electronics and wireless devices in harsh environments. This kit includes the enclosure and the pole mount kit shown.
Construction and Features
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. It meets or exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66.
Complete with Cable Glands and Wire Management Straps
This enclosure includes 4 weatherproof cable glands. Simply punch out the seal, run your cable, and hand tighten for a water-tight seal. For convenience, the included accessory kit contains wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.
Mounting
This NEMA Box Kit includes the NMKG-220-08 Pole Mounting Kit that supports installation on poles up to 9.5 inches in diameter. These removable steel pole mounting brackets includes two heavy duty stainless steel adjustable bands.
Material | Polycarbonate + ABS |

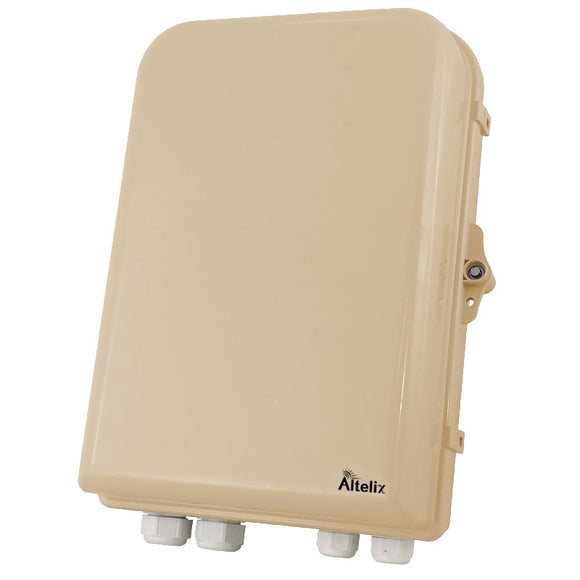

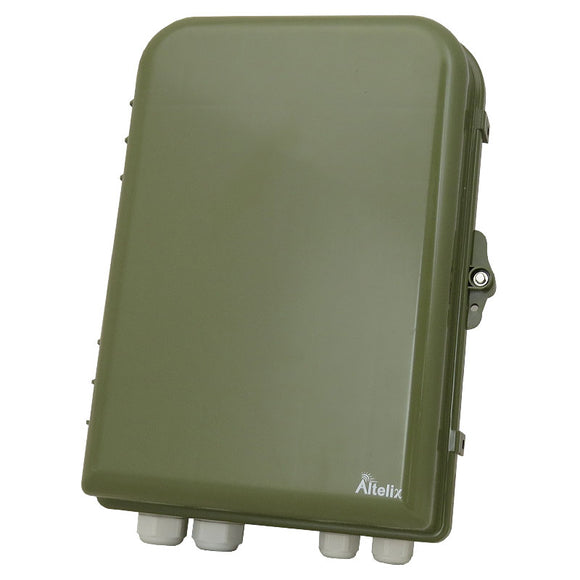

Available Colors | Gray, Light Ivory, OD Green |
Outer Dimensions (Height x Width x Depth) |
15.8 x 11.4 x 5.0 Inches (401 x 290 x 126 mm) |
Inner Dimensions* (Height x Width x Depth) |
11.8 x 8.0 x 4.0 Inches (298 x 203 x 102 mm) |
Weight (Enclosure & Pole Mount) | 3.9 lbs. (1.8 kg) |
Ratings | Meets or Exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66 |
Flame Rating | Meets UL94-V0 |
*Notes: 1) Interior dimensions represent space available for equipment. See drawing for additional details. |
