Heavy Duty Fiberglass Reinforced Polyester (FRP) Construction
Includes Equipment Mounting Plate
GFCI Protected 120VAC Outlets
Dual Quarter-Turn Door Latches
Bonus Aluminum Bottle Opener Key Now Included!
(4) Mounting Feet Included
NEMA Type 3, 3X / IP65 Rated
Optional Lockable Latch Sets Available
Indoor / Outdoor WiFi Equipment
SCADA Remote Terminal Unit
Security and Surveillance Systems
Outdoor use of Indoor Equipment
Protection of Equipment from Theft or Damage
Concealment of Electronic Equipment

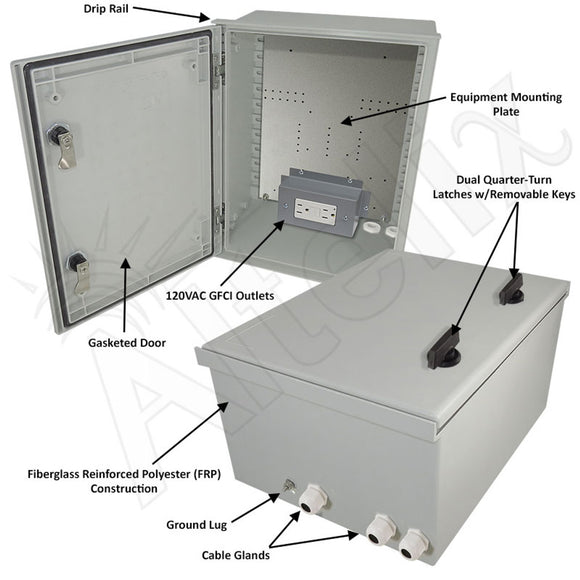

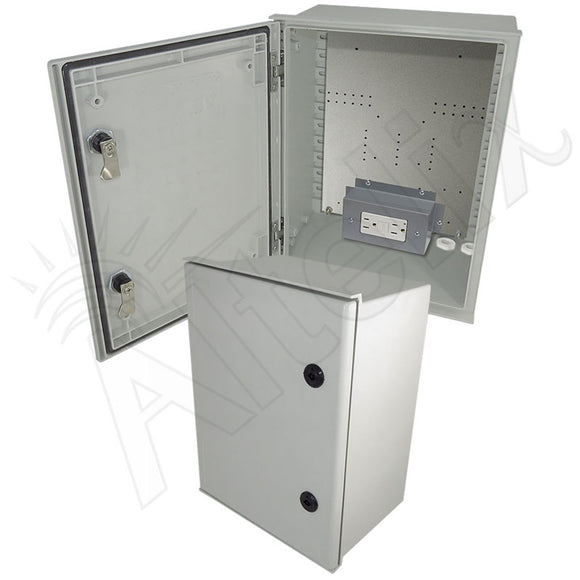

TheAltelix NFC161208A1-GFI NEMA 3X Weatherproof Enclosure with 120VAC Power and Equipment Mounting Plateis ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.
Construction and Features This rugged IP65 rated enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The lockable door features reinforced hinges and dual quarter-turn latches to secure the enclosure and is locked and unlocked using the included removable keys. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet.
Bonus Aluminum Bottle Opener Key This enclosure now includes ourHN-0008Aluminum Bottle Opener Key. A$7.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!
Power This configuration consists of the fiberglass NEMA enclosure with hinged lid and a equipment mounting plate with two pre-wired 120VAC GFCI power outlets. The outlet box is easily removable to facilitate wiring to an external power source.
120VAC GFCI Protected Outlet The NFC161208A1-GFI features a Ground Fault Circuit Interrupter (GFCI) outlet. Like a circuit breaker, this outlet shuts off electric power when it senses an imbalance between the outgoing and incoming current. They are ideal in locations where water may be present since they provide an extra level of protection from electrical shock. Test and reset buttons are provided on the outlet.
Equipment Mounting Plate The equipment mounting plate is provided for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
Cable Glands The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Mounting Four mounting feet are included so that the enclosure can be securely mounted to a wall or other structure. Two optional flange and pole mounting kits are available, painted steel (modelNMKS-300-08) and stainless steel (modelNMKX-300-08).
Optional Lockable Latches For additional protection of internal equipment installed, three lockable latches are available. TheHN-0005is a keyed lock set which includes two keys. Similar to the HN-0005, theHN-0001has an interlock feature that traps the key when it is in the unlocked position. TheHN-0006allows the enclosure to be securely locked via use of a padlock (not included). All of these optional lockable latches are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.
