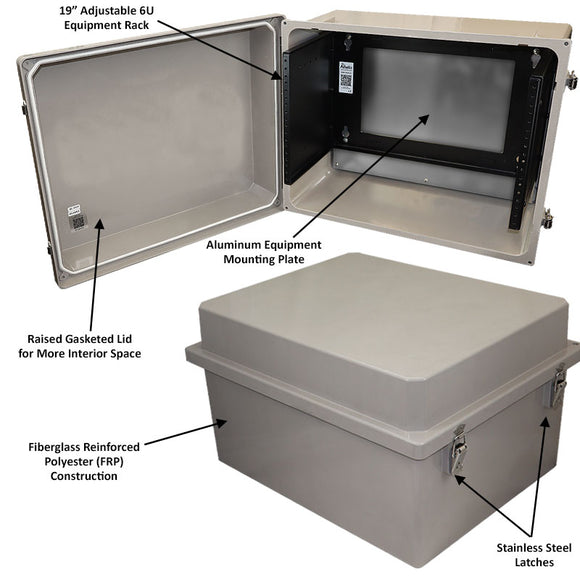

Altelix 16x20x12 Fiberglass Weatherproof NEMA 4X Enclosure with 19" Wide 6U Rack Frame

Altelix SKU: NF162012P-R6U

$423.67

Lead Time: Estimated To Ship In 2-3 Business Days From Time Of Order Entry

Availability: In Stock As of 9/27/24

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at info@enclosurehub.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

Features
  • New 16x20x12 Size!
  • Includes 19" 6U Rack Frame with Blank Aluminum Equipment Mounting Plate
  • Water Resistant JIC Enclosure Design with Gasketed Lid
  • Extra Deep Extended Lid for Increased Equipment Clearance
  • Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
  • Stainless Steel Hinges with High Quality 316 Steel Hinge Pins
  • Stainless Steel Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant
  • Includes Stainless Steel Mounting Feet
  • Pole Mounting Kit Available
Applications
  • 19" Rack Mountable Equipment
  • Indoor / Outdoor Electrical and Electronic Equipment
  • Rack Mount Audio/Video Equipment
  • Ethernet Switches
  • Networking Equipment
  • Industrial Controls and Components
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection of Equipment from Theft or Damage

Internal 6U 19" Equipment Rack
The NF162012P-R6U features a standard 19" 6U equipment rack. It is designed to accommodate a wide range of equipment such as network switches, rack mount audio/video equipment and most other rack mountable equipment. The rack frame mounts to a 2.0mm thick aluminum plate which can also be drilled and modified by the installer to unique site requirements.

Installation Note: The max. depth of the 6U rack is 9.5" (241mm). Before ordering please check the dimensions of the equipment to be installed to ensure proper fit.

Extreme Protection Built to Last
The Altelix NF162012P Series enclosures are molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

This JIC style enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

Material Fiberglass Reinforced Polyester
Color Gray
Outer Dimensions 17.9 x 21.8 x 12.7 Inches
(454 x 553 x 323 mm)
Inner Dimensions 14.7 x 18.7 x 12.0 Inches
(374 x 475 x 305 mm)
Rack Frame 19" Width 6U
Rack Frame Weight Capacity 75 lbs. (34kg)
Mounting Plate Material 0.08 in (2.0 mm) Aluminum
Mounting Plate Dimensions 18.7 x 14.8 in. (475 x 378 mm)
Weight 30.2 lbs. (13.7 kg)
Ratings NEMA Type 4, 4X / IP66
Flame Rating UL94-5V
Industry Certifications CE
