Heavy Duty Internal 4U 19" Vertical Equipment Rack

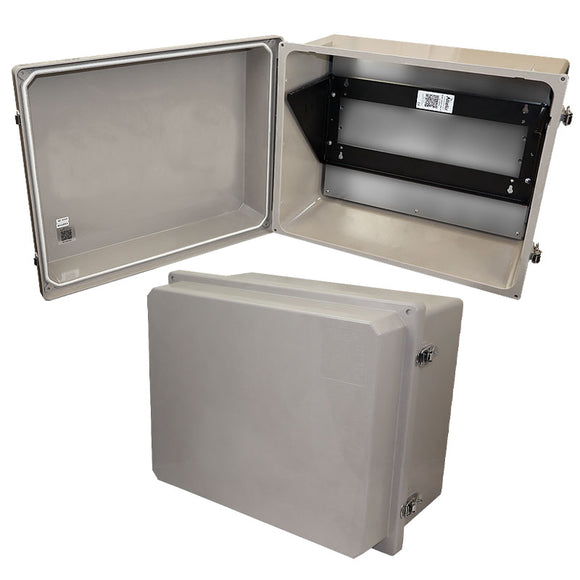

The NF162012P-RV4U-H features a standard 19" 4U vertical equipment rack. The heavy duty designed of this rack is ideal for use with heavier rack mount equipment such as UPS power systems, audio amplifiers and PA system amplifiers. The rack frame mounts to a 2.0mm thick aluminum plate which can also be drilled and modified by the installer to unique site requirements. Three mounting positions for the rack are provided to accommodate a wide range of equipment sizes.

Installation Note: The max. depth of the 4U rack is 13.3" (338mm). Before ordering please check the dimensions of the equipment to be installed to ensure proper fit.

Extreme Protection Built to Last

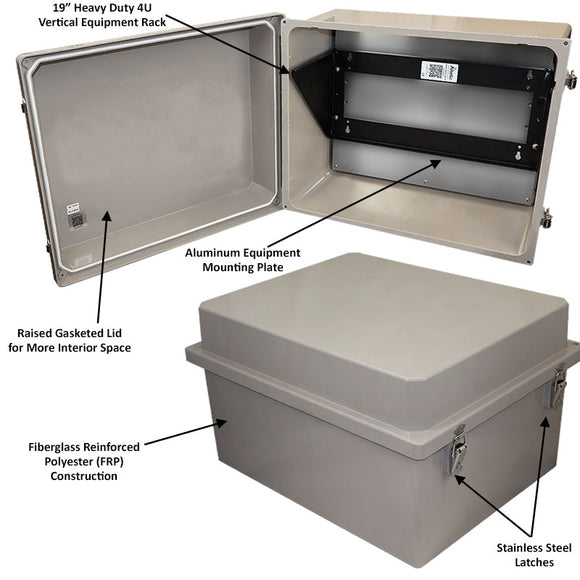

The Altelix NF162012P-RV4U-H enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

This JIC style enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.
