Plug and Play Power for Rapid Deployment

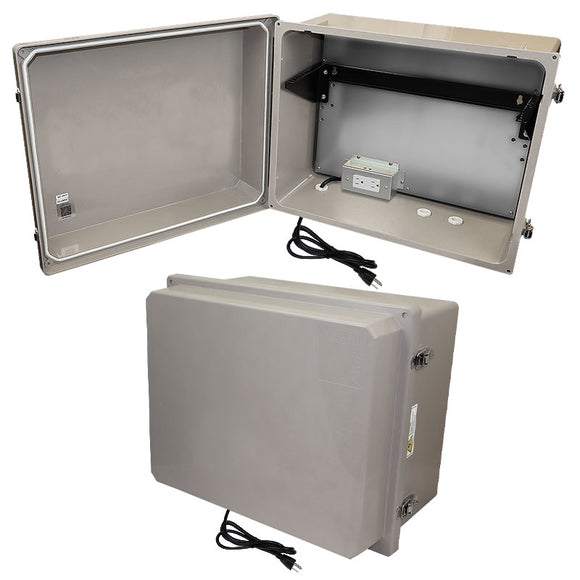

The Altelix NF162012A1C-RV4U Enclosure features two pre-wired 120VAC power outlets inside the enclosure to provide power to your equipment.
Get your project up and running quickly and transition to hard-wired later if needed. The power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.

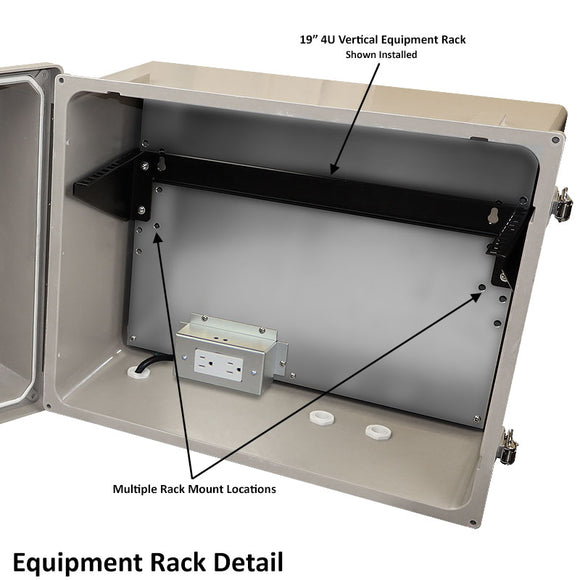

Internal 4U 19" Vertical Equipment Rack
The NF162012A1C-RV4U features a standard 19" 4U vertical equipment rack. It is designed to accommodate a wide range of equipment such as network switches, rack mount audio/video equipment and most other rack mountable equipment. The rack frame mounts to a 2.0mm thick aluminum plate which can also be drilled and modified by the installer to unique site requirements. Four mounting positions for the rack are provided to accommodate a wide range of equipment sizes.
Installation Note: The max. depth of the 4U rack is 9.9" (251mm). Before ordering please check the dimensions of the equipment to be installed to ensure proper fit.
Product Note: This enclosure is also available with a heavy duty 4U vertical rack. This rack is ideal for use with heavier equipment such as rack mount UPS systems and audio power amplifiers. For more information see NF162012A1C-RV4U-H.
Extreme Protection Built to Last

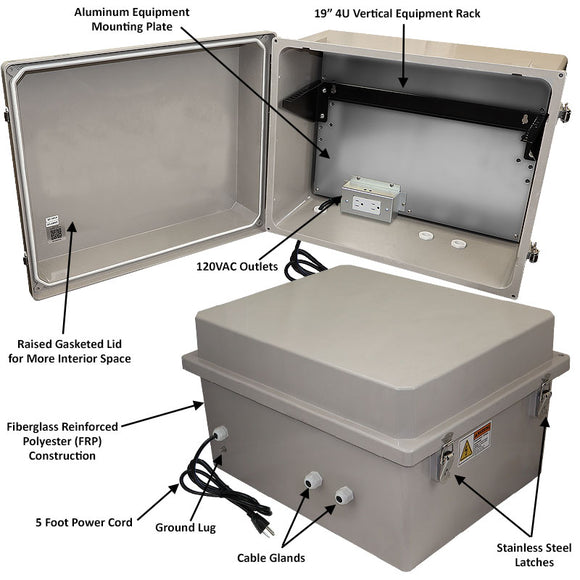

This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.
Cable Glands
The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.
Material | Fiberglass Reinforced Polyester |
Color | Gray |
Voltage | 120VAC |
Max Load | 10A @ 120VAC |
Outer Dimensions | 17.9 x 21.8 x 12.7 Inches (454 x 553 x 323 mm) |
Inner Dimensions | 14.7 x 18.7 x 11.0 Inches (374 x 475 x 279 mm) |
Rack Frame | 19" Width 4U Vertical Mount |
Rack Frame Weight Capacity | 75 lbs. (34kg) |
Mounting Plate Material | 0.08 in (2.0 mm) Aluminum |
Mounting Plate Dimensions | 18.7 x 14.8 in. (475 x 378 mm) |
Weight | 21.35 lbs. (9.7 kg) |
Power Cord Length | 5 Feet (1.5m) |
Ratings* | NEMA Type 4, 4X / IP66 |
Flame Rating | UL94-5V |
*Notes: Enclosure ports must be properly sealed to maintain NEMA Type 4, 4X / IP66 rating. |
