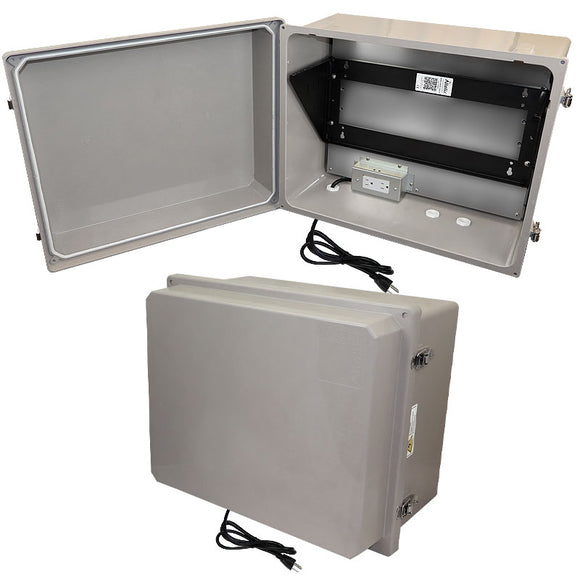

Altelix 16x20x12 Fiberglass Weatherproof NEMA Enclosure with Heavy Duty 19" Wide 4U Vertical Rack Frame, 120 VAC Outlets & Power Cord

Altelix 16x20x12 Fiberglass Weatherproof NEMA Enclosure with Heavy Duty 19" Wide 4U Vertical Rack Frame, 120 VAC Outlets & Power Cord

Altelix SKU: NF162012A1C-RV4U-H

$419.72

Lead Time: Estimated To Ship In 2-3 Business Days From Time Of Order Entry

Availability: In Stock As Of 9/27/24

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at info@enclosurehub.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

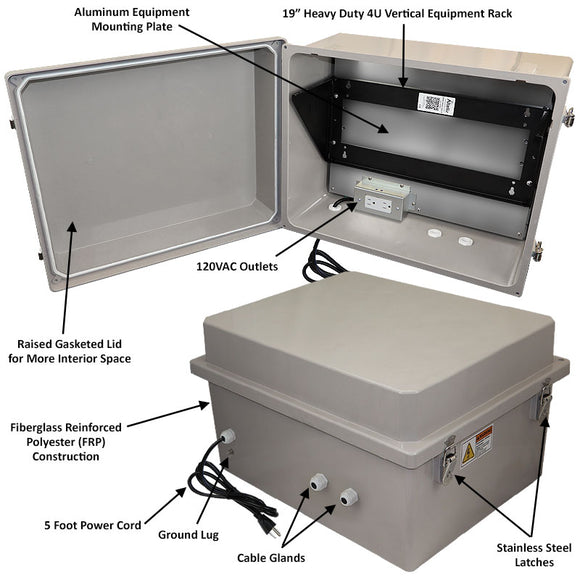

Features
  • New 16x20x12 Size!
  • Includes Heavy Duty 19" 4U Vertical Rack Frame with Blank Aluminum Equipment Mounting Plate
  • No Electrical Wiring Required
  • Pre-wired 5 foot 3-Prong Power Cord
  • (2) Pre-Wired 120VAC Outlets
  • Aluminum Equipment Mounting Plate
  • Extra Deep Extended Lid for Increased Equipment Clearance
  • Stainless Steel Hinges with High Quality 316 Steel Hinge Pins
  • Stainless Steel Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant
  • Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
  • Includes Cable Glands and Stainless Steel Mounting Feet
  • Pole Mounting Kit Available
 Applications
  • 19" Rack Mountable Equipment
  • Rack Mount UPS Systems
  • Indoor / Outdoor Electrical and Electronic Equipment
  • Rack Mount Audio/Video Equipment
  • Rack Mount Amplifiers and PA System Amplifiers
  • Ethernet Switches
  • Networking Equipment
  • Industrial Controls and Components
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection of Equipment from Theft or Damage

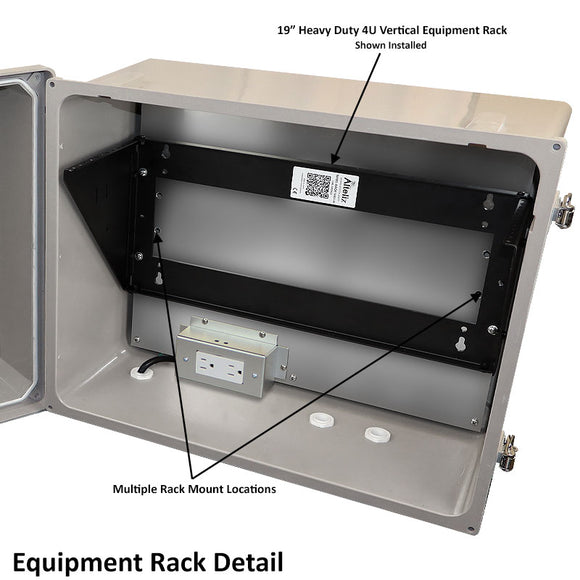

Heavy Duty Internal 4U 19" Vertical Equipment Rack
The NF162012A1C-RV4U-H features a standard 19" 4U vertical equipment rack. The heavy duty designed of this rack is ideal for use with heavier rack mount equipment such as UPS power systems, audio amplifiers and PA system amplifiers. The rack frame mounts to a 2.0mm thick aluminum plate which can also be drilled and modified by the installer to unique site requirements. Three mounting positions for the rack are provided to accommodate a wide range of equipment sizes.

Installation Note: The max. depth of the 4U rack is 10.9" (276mm). Before ordering please check the dimensions of the equipment to be installed to ensure proper fit.

Plug and Play Power for Rapid Deployment
The Altelix NF162012A1C-RV4U-H enclosure features two pre-wired 120VAC power outlets inside the enclosure to provide power to your equipment.

Get your project up and running quickly and transition to hard-wired later if needed. The power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

Cable Glands
The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

Material Fiberglass Reinforced Polyester
Color Gray
Voltage 120VAC
Max Load 10A @ 120VAC
Outer Dimensions 17.9 x 21.8 x 12.7 Inches
(454 x 553 x 323 mm)
Inner Dimensions 14.7 x 18.7 x 11.0 Inches
(374 x 475 x 279 mm)
Rack Frame 19" Width 4U Vertical Mount
Rack Frame Weight Capacity 105 lbs. (47.6kg)
Mounting Plate Material 0.08 in (2.0 mm) Aluminum
Mounting Plate Dimensions 18.7 x 14.8 in. (475 x 378 mm)
Weight 23.9 lbs. (10.8 kg)
Power Cord Length 5 Feet (1.5m)
Ratings* NEMA Type 4, 4X / IP66
Flame Rating UL94-5V
*Notes: Enclosure ports must be properly sealed to maintain NEMA Type 4, 4X / IP66 rati
