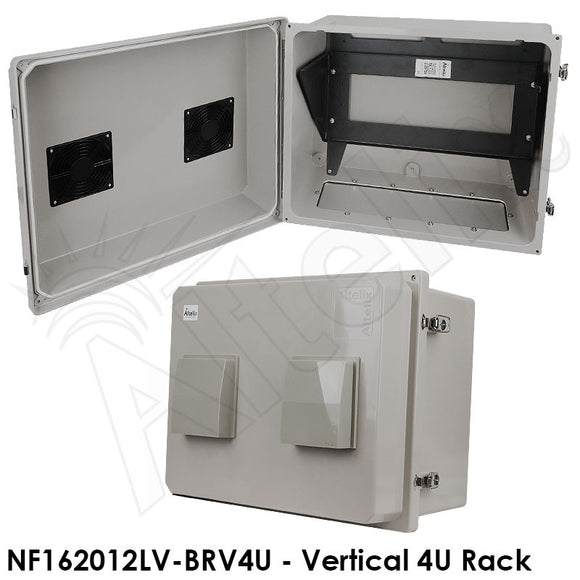

Altelix 16x20x12 Fiberglass Weatherproof NEMA Equipment Rack Enclosure

Altelix 16x20x12 Fiberglass Weatherproof NEMA Equipment Rack Enclosure

Altelix SKU: NF162012LV-BRV4U

$626.01

Lead Time: Estimated To Ship In 1-2 Business Days From Time Of Order

Availability: In Stock As Of 7/17/26

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at enclosurehub@adalet.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

Features
  • Multiple 19” Rack Options for Flexible Equipment Mounting - Available with a 19" 2U slanted rack, 19" 4U vertical rack, or an adjustable 19" 6U rack to support a wide range of equipment and installation requirements
  • Configurable Ventilation Options - Choose from non-vented, passive vented, or vented with thermostat-controlled cooling fans for optimal thermal management
  • Modular Bottom Access Panel System - Features a gasketed blank aluminum bottom access panel that can be replaced with optional modular panels for custom configurations
  • Expandable with Accessory Panels - Optional plug-and-play panels available with vents, thermostat-controlled cooling fans, and 120VAC power outlets
  • Rugged Weatherproof Construction - Molded from fiberglass reinforced polyester (FRP) that is UV stable, corrosion resistant, and built for harsh outdoor environments
  • Secure and Reliable Design - Includes gasketed sealing, stainless steel hinges, and quick-release latches with padlock provision for protection against weather and tampering
 Applications
  • 19" Rack Mountable Equipment
  • Rack Mount UPS Systems
  • Indoor / Outdoor Electrical and Electronic Equipment
  • Rack Mount Audio/Video Equipment
  • Rack Mount Amplifiers and PA System Amplifiers
  • Ethernet Switches
  • Networking Equipment
  • Industrial Controls and Components
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection of Equipment from Theft or Damage

The Altelix NF16 Series Fiberglass Weatherproof NEMA Enclosure is a versatile, configurable solution designed to protect and house 19" rack-mounted equipment in demanding indoor and outdoor environments. Built from rugged fiberglass reinforced polyester, this enclosure offers excellent resistance to UV exposure, moisture, and corrosion while maintaining a professional, clean installation.

Multiple Rack Configurations
This updated design provides maximum flexibility with multiple rack configurations, including a 19" 2U slanted rack for shallow equipment access, a heavy-duty 4U vertical rack for standard deployments, or an adjustable 6U rack for higher-density installations. This allows the enclosure to accommodate a wide range of networking, audio/video, industrial, and telecom equipment in a compact footprint.

Flexible Ventilation and Cooling Options
To support varying environmental conditions, the enclosure is now available in several ventilation configurations. Users can select a sealed non-vented design for maximum protection, passive vents for natural airflow, or vented models with thermostat-controlled 120VAC cooling fans for active heat management—ideal for higher power equipment installations.

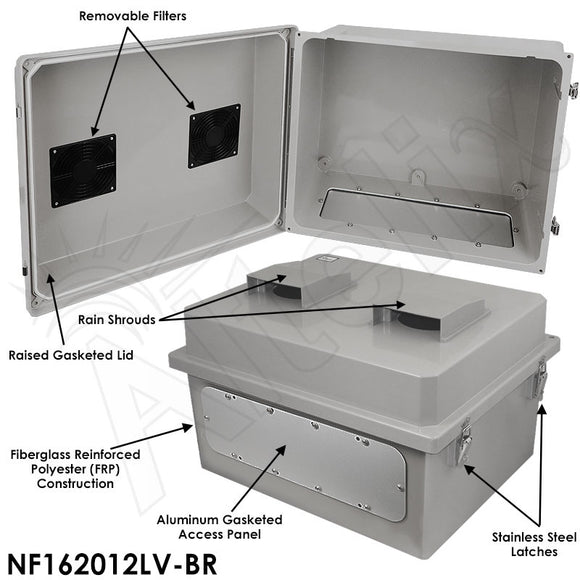

Modular Bottom Access Panel System
A new modular bottom access system enhances installation flexibility. The enclosure includes a gasketed blank aluminum access panel on the bottom, which can be easily replaced with accessory panels to meet specific project requirements. This panel can also be easily drilled and modified to meet specific application requirements. The access panel for NF162012LVF-BR models features (3) sealed PG16 cable glands pre-installed in the panel.

Thermostat Controlled Cooling Fan
The NF162012LVF-BR models feature (2) 120VAC cooling fans mounted to the enclosure lid. The thermostat is pre-wired into the fan power cord. Power can be provided to the fans either by plugging into one of the optional 120VAC power modules or into an external power source. If using an external power source, an additional PG16 cable gland is provided for use with the fan power cord. A quick disconnect is provided on the fan power cord so it can easily be passed through the cable gland.

Customizable Power and Cooling Expansion
Optional accessory panels are available with integrated vents, thermostat-controlled cooling fans, and pre-wired 120VAC power outlets, allowing installers to easily add airflow or power without modifying the enclosure. See tab above "MODULAR ACCESS PANELS"  to see all the available panels for these enclosures.

Extreme Protection Built to Last
These rugged JIC style NEMA enclosures are molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal environments. The gasketed door includes stainless steel quick release latches with padlock hasps.

Mounting Options
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.
