Altelix 17x14x6 PC + ABS Weatherproof Utility Box NEMA Enclosure with Pole Mount Kit

Altelix 17x14x6 PC + ABS Weatherproof Utility Box NEMA Enclosure with Pole Mount Kit

Altelix SKU: NP171406-PKIT

$110.51

Lead Time: ESTIMATED Lead Time of 1-2 Business Days' Time of Order Entry

Availability: In Stock as of 2/5/24

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at info@enclosurehub.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

Features
  • Includes (2) Galvanized Steel Pole Mount Brackets and (2) Stainless Steel Bands
  • Meets NEMA Type 3, 3X and IEC IP55
  • Weatherproof and UV Stable
  • Durable Polycarbonate + ABS

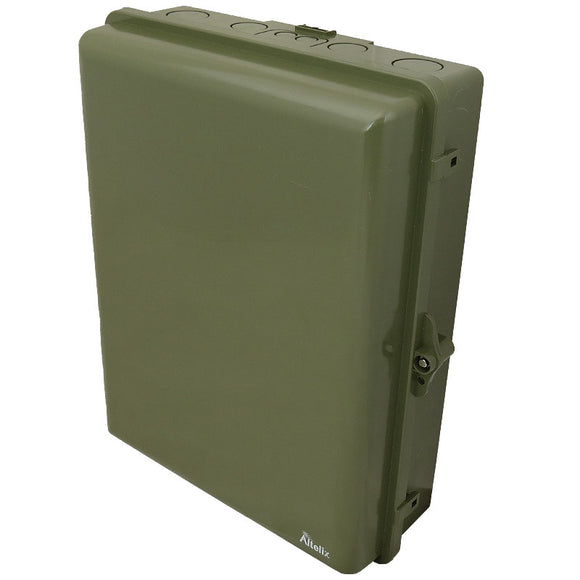

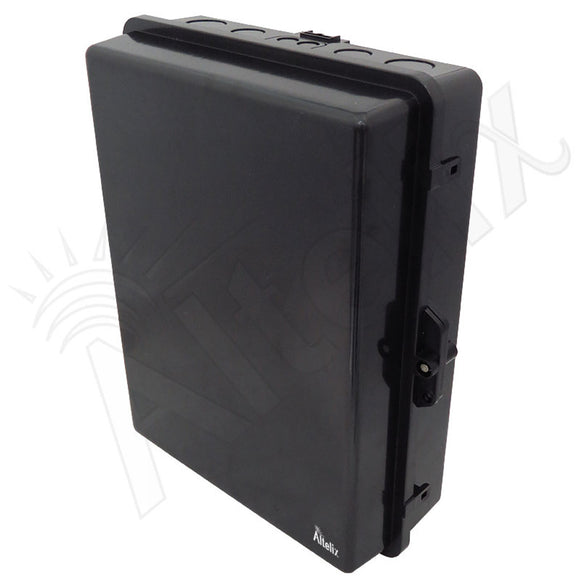

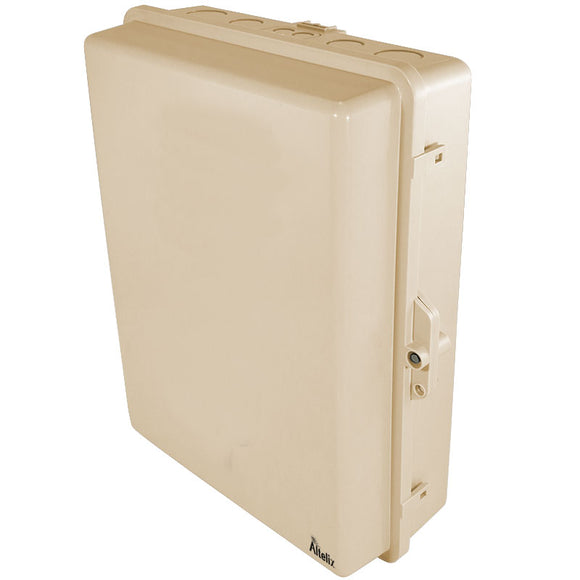

  • Available in Gray, Black, Light Ivory and OD Green
  • RF Transparent for Wireless Devices
  • Gasketed Lid with Dual Latches
  • Tamper-Proof Locking Screw with Key and Provision for Padlock
  • Includes Cable Glands, Cable Grommets, Zip Ties, Cable Management Loops and, Ground Plate & Ground Wire
  • Knock-Out Holes on Top & Bottom
 Applications
  • Pole and Post Mounting
  • Multi Purpose Plastic Utility Box
  • Data Wiring and Fiber Optic
  • Cable TV Connections
  • Broadband Equipment
  • Low Voltage Wiring Junction Box
  • Solar Equipment
  • Outdoor Speaker Wiring
  • LED Controllers
  • IoT Devices
  • WiFi and RFID Gear
  • Security and Surveillance Systems
  • Outdoor Weather Protection
  • Protection Against Theft or Damage
  • Warehouses and Public Areas
  • Concealment of Equipment


Weatherproof Extreme Durability for Pole and Post Mounting

The Altelix NP171406-PKIT is an industrial quality general purpose weatherproof utility box designed for mounting to poles and posts. It features our NP1171406 PC+ABS Plastic Utility Enclosure and our NMKG-283-08 pole mounting kit.

Construction and Features

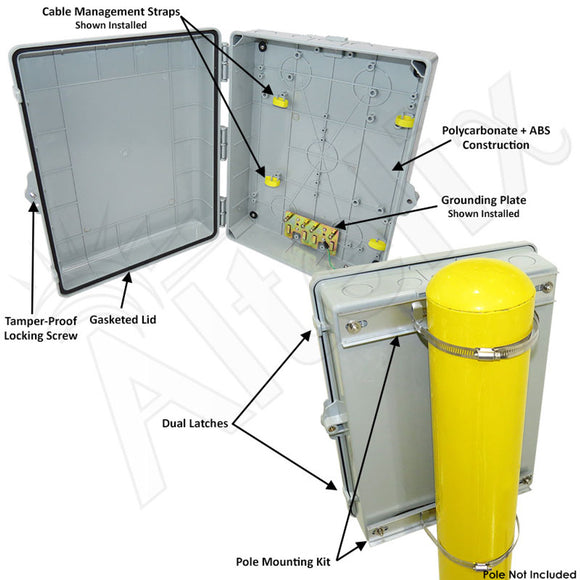

This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for a padlock. Knock-out holes are provided on the top and bottom. Meets or exceeds NEMA Type 3, 3X and IEC IP55.

Pole Mounting

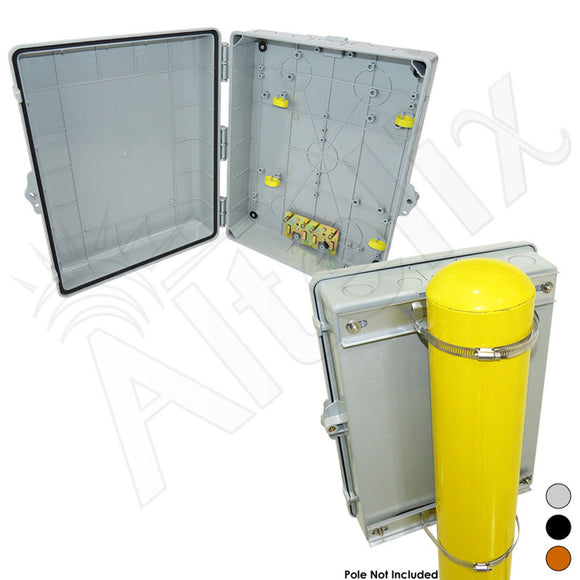

The included Pole Mount Kit features (2) galvanized steel brackets and (2) stainless steel adjustable bands that accommodate poles up to 7.6 inches in diameter. For larger diameter poles, such as utility poles, longer bands can be used.

Complete with Cable Glands and Wire Management Accessories
This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are zip ties, wire management loops, grounding plate and ground wire, door locking key and more.

Cable Glands
The enclosure includes (2) unique cable glands with a closed inner seal. They can be installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
