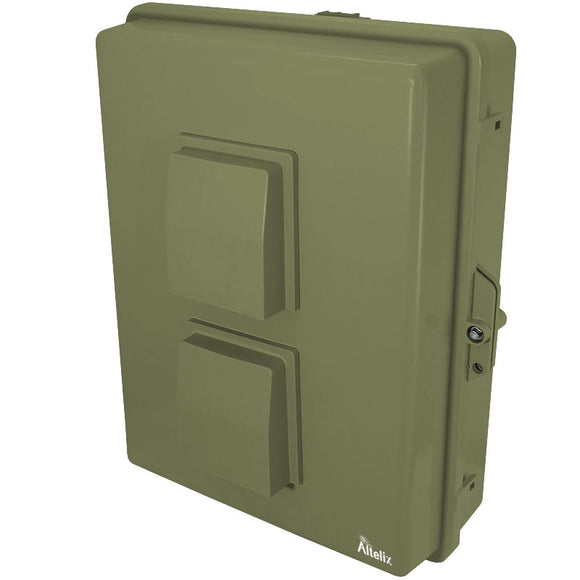

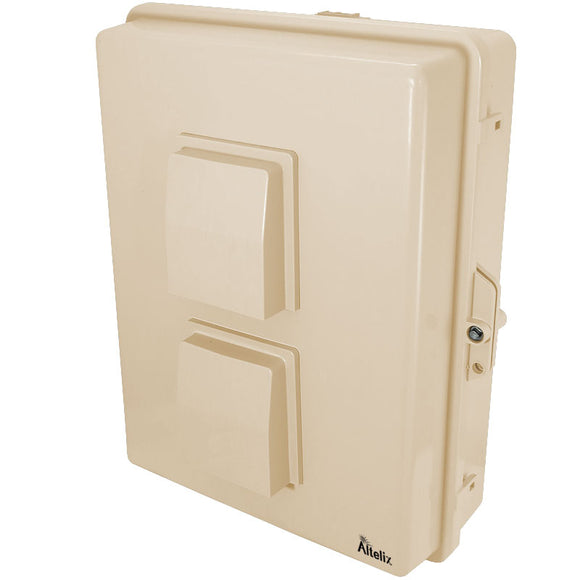

Altelix 17x14x6 Vented Polycarbonate + ABS Weatherproof NEMA Enclosure with Cooling Fan, 120 VAC Outlets & Power Cord

Altelix SKU: NP171406VFA1C

$239.46

Lead Time: TYPICALLY Ships Same Day on Orders Placed before 11:00AM EST

Availability: Black Is Temporarily Out Of Stock. All Other Colors Are In Stock As Of 8/21/24.

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at info@enclosurehub.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.



Features
  • Dual 3" Vents and Thermostat Controlled Cooling Fan
  • ABS + Polycarbonate Enclosure
  • Gasketed Lid with Tamper-Proof Locking Screw
  • Dual Door Latches
  • Includes Aluminum Mounting Plate with 120VAC Outlets
  • Pre-wired 5 foot power cord
  • NEMA Type 3R, 3RX / IP24 Rated
  • Includes Wall Mount Hardware and Cable Grommets
Applications
  • Indoor / Outdoor WiFi Equipment
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection of Equipment from Theft or Damage
  • Concealment of Electronic Equipment



The Altelix NP171406VFA1C Vented Fan Cooled Polycarbonate + ABS NEMA Weatherproof Enclosure with 120VAC Power and Aluminum Equipment Plate is ideal for protecting equipment from harsh environments and tampering. This enclosure features a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. There is also a provision for padlock use. Internal and external electrical ground points are also provided.

PC+ABS Polycarbonate / ABS Blend for Extreme Durability
These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability and dimensional stability even at extreme cold and hot temperatures.

Cooling Fan Ventilation
The NP171406VFA1C features dual 3" vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure. Dual fans are also available by request.

This enclosure is also available with a lower fan turn-on temperature of 85°F (30°C). See NP171406VFA1C-85.

Power

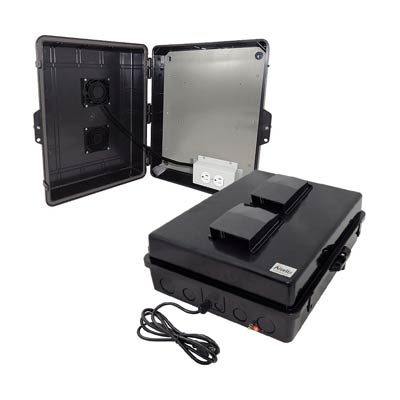

This configuration consists of the PC+ABS NEMA enclosure with hinged lid and a 2.0mm thick aluminum plate with two 120VAC power outlets. A 5 foot pre-wired power cord is included to power the enclosure, so no additional wiring is required. The enclosure can also be hard wired by an electrician or qualified installer. An external ground lug is provided. Two cable grommets on the enclosure allows cables to be connected to internal devices. Knock-outs are provided on the enclosure for additional wiring. Extra cable grommets are included with the accessory kit.

For additional protection this enclosure is also available with a GFCI outlet. See NP171406VFA1C-GFI.

Aluminum Equipment Mounting Plate
The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.

Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit (NMK-0001) is also available for installation on poles up to 8 inches in diameter.



Material PC+ABS Polycarbonate / ABS Blend
Available Colors Gray, Black, Light Ivory, OD Green
Voltage 120VAC
Max Load 10A @ 120VAC
Cooling Fan Turn-On Temperature 100°F (38°C) ±6°F
Cooling Fan Turn-Off Temperature 79°F (26°C) ±9°F
Outer Dimensions
(Height x Width x Depth)
16.5 x 13.7 x 6.5 Inches
(420 x 348 x 166 mm)
Inner Dimensions*
(Height x Width x Depth)
11.5 x 9.0 x 3.2 Inches
(292 x 229 x 81 mm)
Mounting Plate Material 0.08 in (2.0 mm) Aluminum
Mounting Plate Dimensions 14.9 x 11.2 in. (378 x 285 mm)
Weight 7.1 lbs. (3.2 kg)
Power Cord Length 5 Feet (1.5m)
Ratings NEMA Type 3R, 3RX / IP24
Flame Rating Meets UL94-V0
Knockout Sizes (Diameter) (4) 0.62 in. (16 mm)
(4) 1.02 in. (26 mm)
(4) 1.30 in. (33 mm)
*Notes:
1) Interior dimensions represent maximum space available for equipment.
