Altelix Adjustable 1U 19" Rack Mount DIN Rail Kit

Altelix Adjustable 1U 19" Rack Mount DIN Rail Kit

Altelix SKU: NHBS-RACK-DIN

$19.16

Lead Time: Estimated To Ship Same Day On Orders Placed B

Availability: In Stock As Of 7/3/25

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at enclosurehub@adalet.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

Features
  • Mounts to standard 19" equipment racks
  • Heavy duty powder coated steel brackets
  • Multiple DIN rail mounting options

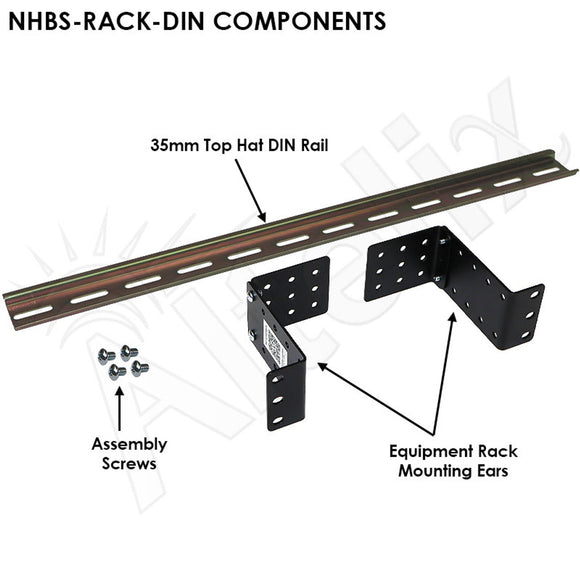

  • Each kit includes adjustable rack ears, 35mm Top Hat DIN rail and hardware
 Applications
  • Install DIN rail mountable equipment in standard 19" equipment racks
  • DIN rail mounted network switches
  • DIN rail terminal strips
  • DIN rail relay boxes

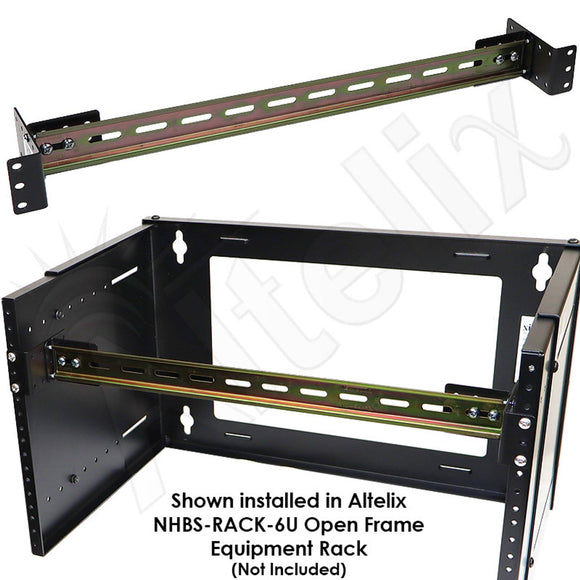

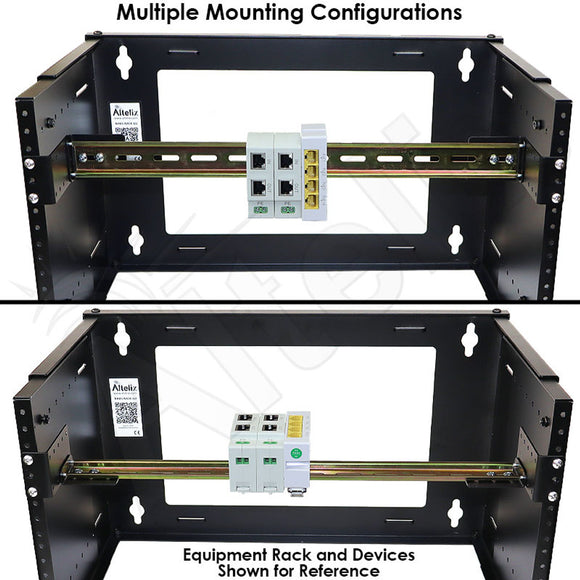

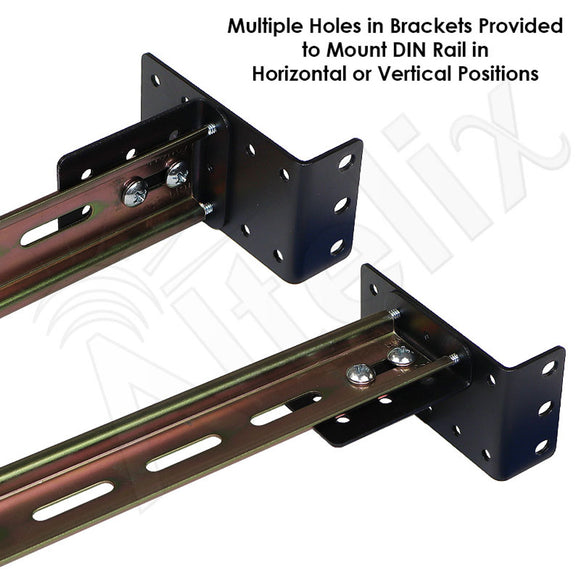

The Altelix NHBS-RACK-DIN 1U Rack Mountable DIN Rail Kit is used to install DIN rail mounted equipment into a standard 19" equipment rack frame. Constructed from heavy duty black powder coated steel, the rack mounting ears have provisions to mount the DIN rail in multiple configurations. This provides greater flexibility when installing DIN rail equipment in the rack. DIN rails can be installed in vertically or horizontally. Each kit includes the adjustable rack ears, steel 35mm Top Hat DIN rail and mounting hardware.

This kit can be used with any of the Equipment Rack Frames and Equipment Rack Enclosures available from Altelix.

Rack Ears Material Steel
Rack Ears Finish Black Powder Coated
DIN Rail Material Steel
DIN Rail Length  16.7" (425.4mm)
Equipment Rack Size 1U
