Install a LILYGO® T-Echo Almost Anywhere!
The Altelix Solar Powered LILYGO® T-Echo Enclosure is ideal for deploying LoRa wireless mesh networks in outdoor and remote locations without access to power.
Includes Solar Powered Charging Panel
Included with the NP09MS5-LMT1 is a high-efficiency 5V/6W solar powered charging panel ideal for powering the LILYGO® T-Echo module. This panel includes a 90° tilt and 360° swivel base and a 10 foot power cord with a Micro-USB power plug. A Micro-USB to USB-C adapter is also included for use with the T-Echo module. The 10 foot power cord allows the solar panel to be mounted away from the enclosure in locations optimal for sunlight exposure. IP66 rated, this solar panel is built to withstand harsh outdoor conditions including rain and snow.
Construction and Features
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. It meets or exceeds NEMA 1, 2, 4, 4X, 12, 13 and IEC 529 IP65, IP66. The enclosure can be easily drilled and modified by the installer to suit unique site requirements.
Plug and Play Setup
The Altelix LILYGO® enclosure provides easy plug-n-play installation. Once the enclosure is mounted, simply snap the T-Echo wireless module into the mounting cradle. Cable glands on the enclosure allow the power cable from the solar panel to be connected to the LILYGO® T-Echo. This enclosure is compatible with the following LILYGO® wireless modules:
- LILYGO® TTGO SotfRF T-Echo Wireless Module
- LILYGO® TTGO Meshtastic T-Echo Wireless Module
RF Transparent Design
The non-metallic design of the enclosure and equipment mounting plate is RF transparent and will not interfere with the wireless signal range or coverage pattern of the LILYGO® T-Echo wireless module.
Pole Mount Available
A pole mounting kit is also available for this enclosure. The NMKG-150-08 attaches to the rear of the enclosure and allows it be mounted to poles and fence posts up to 9.5 inches in diameter.
LILYGO® T-Echo Wireless Module Mount Available Separately
The LILYGO® T-Echo wireless module mount is also available separately in three colors. For more information see BMP-LMT1.
LILYGO® is a trademark or registered trademark of Shenzhen Xin Yuan Electronic Technology Co., Ltd.
Material | Polycarbonate + ABS |

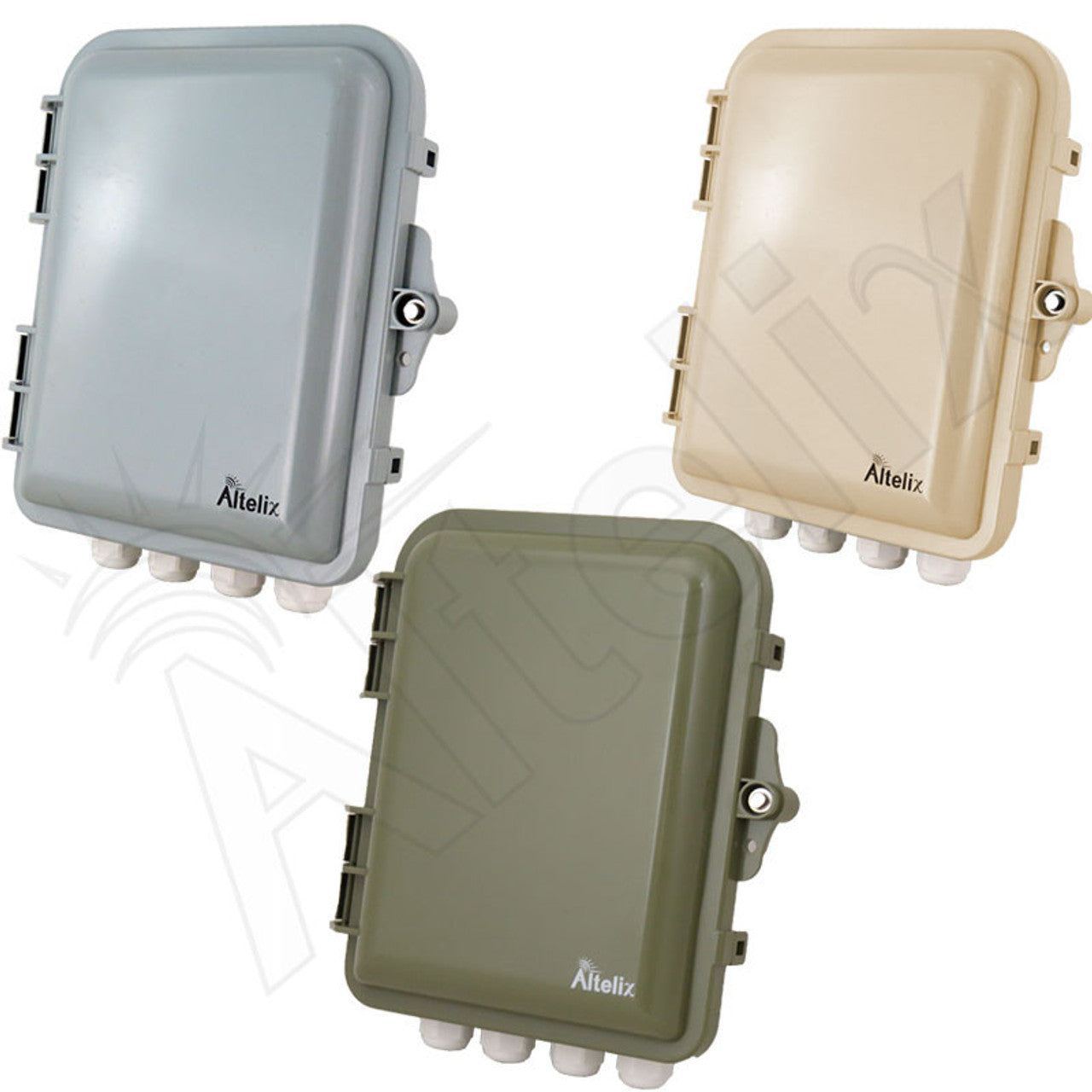

Available Colors | Gray, OD Green, Light Ivory |
Outer Dimensions | 9.3 x 8.6 x 3.0 Inches (236 x 219 x 76 mm) |
Inner Dimensions | 7.0 x 5.5 x 2.0 Inches (178 x 140 x 51 mm) |
Mounting Plate Material | 0.25 in. (6.4 mm) PVC |
Weight | 3.7 lbs. (1.7 kg) |
Ratings | Meets or Exceeds NEMA 1, 2, 4, 4X, 12, 13 and IP65, IP66 (EIC 529) |
Flame Rating | Meets UL94-V0 |
Included Cable Glands |
(4) PG13.5 |
Compatible LILYGO® Models | TTGO SotfRF T-Echo Wireless Module TTGO Meshtastic T-Echo Wireless Module |
Solar Power Charger Specifications | |
Output Voltage | 5V |
Output Current | 1.2A |
Power Output | 6W |
Power Cable Length | 10 Feet (3.0m) |
Power Plugs | Micro-USB and USB-C |
Waterproof Rating | IP66 |
