Designed to fit the TP-Link® RE220 AC750 WiFi Extender
Plug-and-Play Design, Easy to Install
Dual 3" Vents with Rain Shields to Expel Heat
Features a RF Transparent PVC Non-Metallic Equipment Mounting Plate
Pre-Wired 120VAC Power Outlet with 5 foot Power Cord
Includes Wall Mounting Hardware
NEMA Type 3R, 3RX / IP24 Rated
Weatherproof and UV Stable
Durable Polycarbonate + ABS Construction
Gasketed Lid Featuring a Tamper-Proof Locking Screw with Key and Provision for Padlock
Optional Pole Mount Kit Available
Protection of the TP-Link® RE220 AC750 WiFi Extender from Theft or Damage
Extend Wirless Coverage to Outdoor Locations
Concealment of Equipment
Deployment of Hospitality Wireless Networks
Retail and Commercial Wireless Networks
Extend Your Wireless Coverage to Outdoor Locations

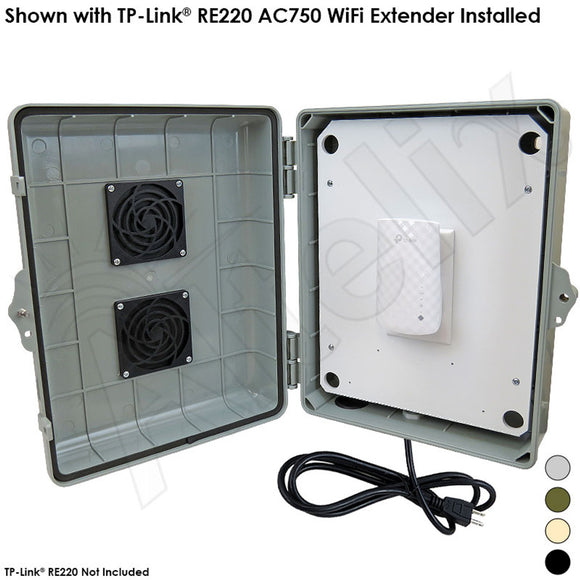

TheAltelix WiFi Extender Enclosureis a vented weatherproof enclosure designed to provide added security from vandalism and protection from harsh environments, while allowing ventilation for the TP-Link® RE220 AC750 WiFi Extender. It features two 3" inch air vents with rain shields and screens.

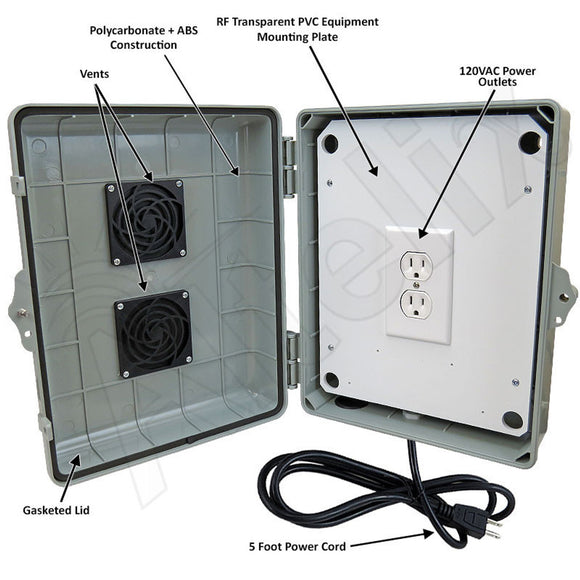

Rugged Polycarbonate + ABS Construction This sleek enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. Integrated mounting feet simplify installation. It meets or exceeds NEMA 3R, 3RX and IP24.
Plug and Play Setup The Altelix WiFi Extender enclosure provides easy plug-n-play installation. Once the enclosure is mounted, plug the TP-Link® RE220 AC750 WiFi Extender into the pre-wired 120VAC power outlet. Then plug the enclosure's 5 foot power cord into a 120VAC power outlet and you are up and running. A cable grommet on the enclosure allow cables to be connected to the device if needed.
RF Transparent Design The non-metallic design of the enclosure and equipment mounting plate is RF transparent and will not interfere with the WiFi signal range or coverage pattern of the TP-Link® RE220 AC750 WiFi Extender.
Complete with Cable Grommets and Glands and Wire Management Straps For convenience, the included accessory kit contains cable grommets and glands, wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.
Mounting The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.
TP-Link® is a trademark or registered trademark of TP-Link, Corp.
