Protect Your Amazon eero® 6 and eero® 6 Extender
The Altelix NP14A1C-EER3 is a weatherproof NEMA enclosure designed to provide added security, vandalism and dust protection for the Amazon eero® 6 WiFi router and eero® 6 Extender.
Install Your Amazon eero® 6 Securely

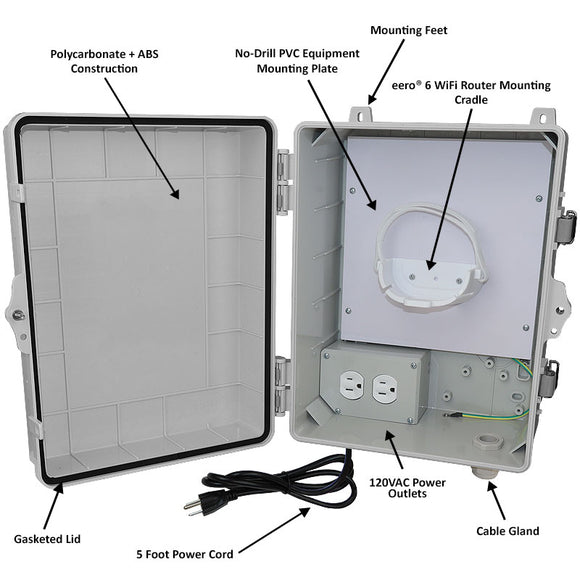

This sleek enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. Integrated mounting feet simplify installation. It meets or exceeds NEMA 3, 3R, 3RX and IP55.
Amazon eero® 6 and eero® 6 Extender Mount
The NP14A1C-EER3 features a mounting cradle specifically designed for both the Amazon eero® 6 WiFi Router and Amazon eero® 6 Extender. Installation is easy, simply slide the router into the mounting cradle. For extra security and installations subject to vibrations, an optional hook and loop strap is provided to secure the router within the mounting cradle. The mounting cradle is designed so that it will not interfere with any of the ports on the eero® 6 such as power and Ethernet.
Plug and Play Setup
The NP14A1C-EER3 enclosure provides easy plug-n-play installation. Once the eero® 6 is securely mounted inside the enclosure, connect its power supply to the internal 120VAC power outlet. A cable gland and cable grommets on the enclosure allow cables to be connected to the device. Simply plug the enclosure's 5 foot power cord into a power outlet and you are up and running.
RF Transparent Design
The non-metallic design of the enclosure and bracket is RF transparent and will not interfere with the WiFi signal range or coverage pattern.
Complete with Cable Grommets and Glands and Wire Management Straps
For convenience, the included accessory kit contains cable grommets and glands, wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.
Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.
Additional Products Available for Amazon eero®
Altelix has a full line of enclosures and mounts designed for use with Amazon eero® wireless products including the eero® mesh router, eero® Pro, eero® Pro 6E, eero® 6 and eero® 6 Extender.
eero® is a trademark or registered trademark of Amazon Technologies, Inc.
Material | Polycarbonate + ABS |
Available Colors | Gray, Black, Light Ivory, OD Green |
Voltage | 120VAC |
Max Load | 10A @ 120VAC |
Outer Dimensions (Height x Width x Depth) |
13.1 x 10.2 x 4.7 Inches (334 x 259 x 120 mm) |
Inner Dimensions* (Height x Width x Depth) |
9.5 x 8.0 x 4.0 Inches (241 x 203 x 101 mm) |
Mounting Plate Material | 0.25 in. (6.4mm) PVC |
Weight | 4.1 lbs. (1.8 kg) |
Power Cord Length | 5 Feet (1.5m) |
Ratings | Meets NEMA 1, 2, 3, 3R, 3RX and IP55 |
Flame Rating | Meets UL94-V0 |
Compatible eero® Models | eero® 6 (Model N010011) eero® 6 Extender (Model Q010011) |
