Integra - Impact Line | Polycarbonate | Clear | Low Profile Hinge, Integrated Locking Latch, Integrated Mounting Flange| NEMA 4X, NEMA 6P

Integra - Impact Line | Polycarbonate | Clear | Low Profile Hinge, Integrated Locking Latch, Integrated Mounting Flange| NEMA 4X, NEMA 6P

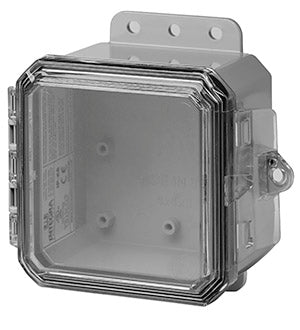

Integra Enclosures SKU: P4043LPC

$46.32

Lead Time: All Integra products vary, we can find this information quickly for you.

Availability: In stock products will ship within 2-3 business days.

Please chat with us directly or email at info@enclosurehub.com and we can give you the most accurate and up-to-date information.

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

  • Impact Line
  • Polycarbonate
  • NEMA/ UL 6P (IP68)
  • Clear Cover
  • Low Profile Hinge
  • Available with Face Plate System
  • Integrated Locking Latch



IMPACT LINE (Standard and Available Features)

  • NEMA 4X(IP66) / NEMA 6P(IP68)
  • 900 lb/in Impact Resistance
  • Wide Operating Temperature Range
  • Crystal Clear Covers
  • EZ Hinge or Low Profile Hinge
  • Integrated Flanges
  • Integrated Latch
  • Available with Advanced Face Plate System
  • Available with Advanced Swing Panel System
  • Molded in Mounting Bosses
  • Latch Securely Attached
  • Full Modifcations
  • Complete Customization
  • Custom Shipping

High impact polycarbonate low profile hinged enclosure integrated with integrated locking latch, opaque cover and mounting flange

UL Type 4X/6P (IP66/68)

Mechanical and Thermal

Instrumented Dart Impact @ 73°F,  565 in-lb.

Falling Ball Impact @ 73° 900 in/lb. Test Spec. UL-746

Deflection Temperature @264 psi, 270 Deg. F, Test Spec. ASTM D648

Modulus of Elasticity 340 ksi, Test Spec. ASTM D790

Temperature Range, -40 to 265 Deg. F

Flammable/UV Ratings

Flame Rating Ð UL, 5VA. Test Spec. UL-94

Outdoor UV Exposure, F1. Test Spec UL

3rd Party Approvals

UL-50/c-UL Listed (file #E207562)
