Copy of Hammond Type 1 Mild Steel Metering Cabinets (Hydro Quebec Version) CMC Q Series Hinge Door with Quarter Turn

Sale
$221.13 $327.20
Brand: Hammond
SKU: CMC202010
Minus Plus

Application

  • Designed for indoor housing of metering transformers.

Standards

  • CSA Type 1
  • Complies with
    • IEC 60529, IP20

Construction

  • Formed and spot welded from 14 or 16 gauge steel.
  • Spot welded construction and formed edges.
  • Removable inner panel.

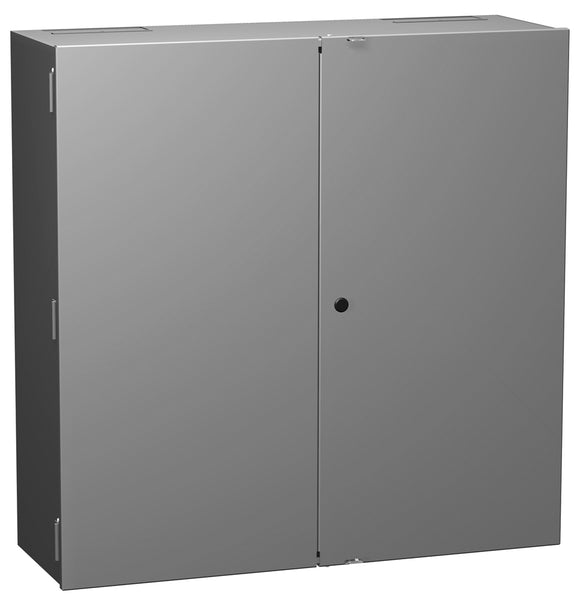

  • Single and Double Door versions
  • Hinged covers - single door with hasp closure, double door with hasp and quarter turn closure.
  • 2 cutouts in top of each cabinet with metering plates included (except 27x13x10")

Finish

  • Enclosure and cover are finished in ANSI 61 gray inside and out.
  • Inner panel is finished in white powder coating

Part Details

Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch. Switch units to: mm

Type Enclosure Inner Panel
Part No. of Door H W D H W
CMC202010 Single 20.00 20.00 10.00 16.00 16.00
CMC271310* Single 27.00 13.00 10.00 23.00 9.00
CMC302010 Single 30.00 20.00 10.00 26.00 16.00
CMC303010 Double 30.00 30.00 10.00 26.00 26.00
CMC363612 Double 36.00 36.00 12.00 32.00 32.00
CMC484812 Double 48.00 48.00 12.00 44.00 44.00
