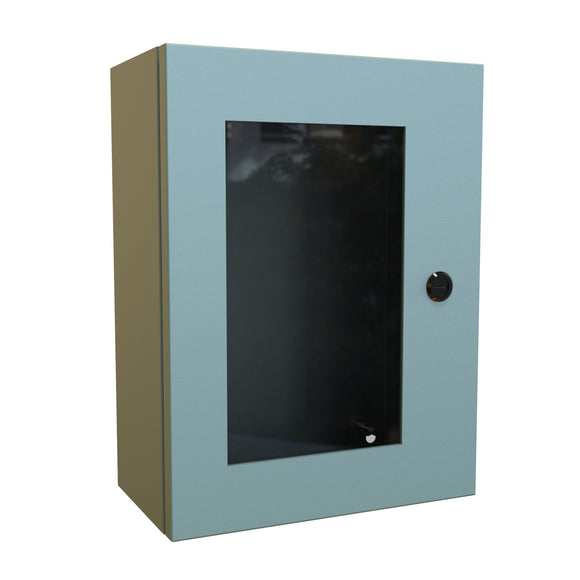

Hammond Eclipse Series - Painted Mild Steel Enclosures with Polycarbonate Window - Includes Concealed Hinge and Quarter-Turn Latch
Brand: Hammond Manufacturing
SKU: EN4SD16126WGY
Designed to enclose electrical and/or electronic equipment in wall mount applications where viewing of component operation is necessary while maintaining protection ratings. Impressive styling features like hidden hinges, attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation. A wide range of sizes and practical accessories make this product line a complete package.
Construction
- Formed 14 or 16 gauge steel.
- Full view UV resistant polycarbonate window allow maximum viewing area of inner panel.
- Smooth, continuously welded seams ground smooth.
- Door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options.
- Formed lip on enclosure to exclude flowing liquids and contaminants.
- Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
- Doors may be easily removed for modifications and are interchangeable.
- Seamless poured-in place gasket.
- Collar studs provided for mounting inner panel.
- Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
- Bonding stud provided on door and grounding stud installed in enclosure.
- Hinges are constructed from 304 stainless steel.
- Hinge pins are stainless steel.
- Quarter turn latches are zinc diecast with black epoxy finish.
Finish
- Cover and enclosure are phosphatized and finished with a recoatable powder inside and out with ANSI 61 smooth Gray.
Drawings:
EN4SD16126WGY EN4SD20166WGY EN4SD20206WGY
EN4SD24206WGY EN4SD24246WGY EN4SD16128WGY
EN4SD20168WGY EN4SD20208WGY EN4SD24208WGY
EN4SD24248WGY EN4SD30248WGY EN4SD202012WGY
