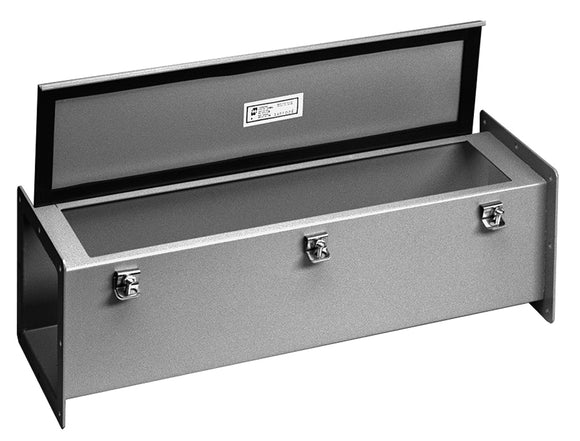

1487 Series Pull Trough Wireway - NEMA 12

Application

• Designed to enclose and protect electrical wiring from dirt, dust, oil and water.
• Ideal for connecting machines to control panels or power sources.

Standards

• UL 870 Type 1 (unless marked¹)
• CSA Type 1 (unless marked¹)
• Complies with
  • NEMA Type 12
  • IEC 60529, IP54

Construction

• Bodies and covers are formed from 14 gauge steel with 10 gauge steel flanges.
• Continuous flange around wireway ends, requires cables to be pulled through. (For lay-in style, see 1485 Series.)
• Smooth continuously welded seams.
• Interior surfaces are smooth to prevent wire damage during installation.
• Butt hinged covers are secured with easily operated screw clamps.
• Oil resistant gaskets are permanently secured.
• Solid oil resistant gaskets are used between flanges when sections and fittings are bolted together.
• One gasket kit, complete with hardware is provided with each straight section or fitting.

Finish

• Sections and fittings are finished in ANSI 61 gray.
