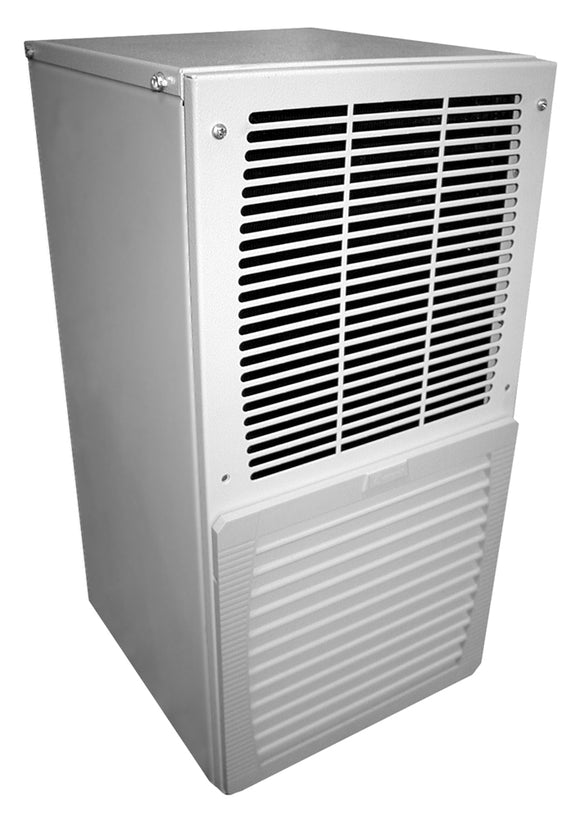

2000 - 3000 BTU/H Indoor Air Conditioner DTS Series Type 12 Side Mounting

$2,374.39

SKU: DTS3041A115LG Hammond Manufacturing

Description

  • Compact design for side mounting on any enclosure surface where hot spot cooling or low capacity cooling is required.
  • Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.

Standards

  • Maintains enclosure's NEMA 12 rating
  • IP 54
  • UR, cUR and CE

Features

  • R134a refrigerant.
  • Thermostat control accessible from inside enclosure.
  • Expansion valve increases efficiency with improved evaporator heat transfer and less frequent compressor operation.
  • Direct condensate discharge via drain hose.
  • Continuous air circulation from high capacity fans.
  • EMI/RFI suppression meets CE.
  • Self-diagnostics on startup.
  • Fault indication via LED light.
  • Door contact for power down when enclosure door is opened.
  • Gasket, mounting kit and template for cutout and drilling are included.
  • Condensate drain hose and clamp 1/2" barb connection

Accessories


Part No.
DTS3041A115LG
DTS3041A230LG
DTS3041A460LG

Electrical Data DTS3041A115LG DTS3041A230LG DTS3041A460LG
Rated Voltage 115 V 60 Hz 230 V 50/60 Hz 460 V 50/60 Hz
Range of Operation 103-127 V 207-253 V 360-506 V
Power Consumption 690 W 663 W 663 W
Running Amps 6.0 A 4.1 A 4.1 A
Starting Current 12.2 A
