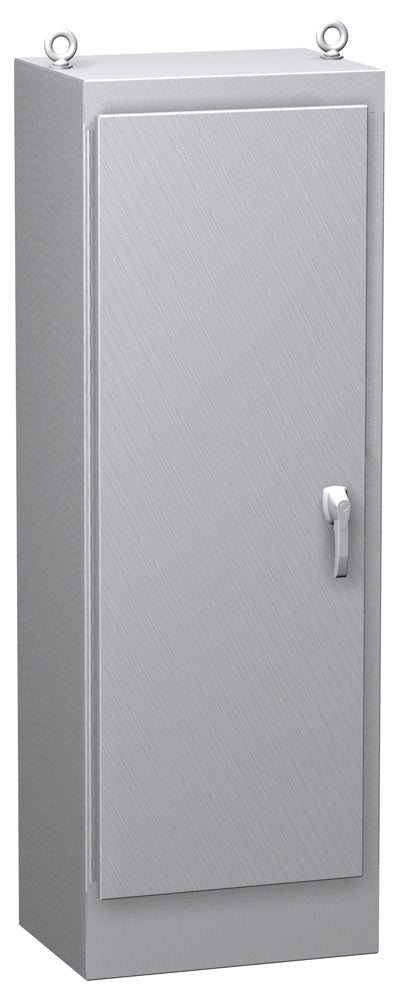

Dual Access Type 4X Stainless Steel Freestanding Enclosure HN4 FS SS Series Continuous Hinge Door with Handle

Application

• Designed to house electrical, electronic, hydraulic or pneumatic controls with provision for panel mount­ing or rack mounting of equipment.
• Provides protection where equipment may be hosed down or otherwise be very wet, or in specific applications where corrosion is a serious problem.
• A variety of inner panels, rack mounting rails and swing out frames are available to provide flexibility in mounting arrangements.

Construction

• Formed 12 gauge 304 stainless steel.
• Smooth, continuously welded seams without knockouts, cutouts or holes.
• Heavy duty stainless steel lifting eyebolts are provided with reinforcing support angles.
• Doors are supported with heavy gauge continuous hinges.
• New 3-pt padlocking door handle.
• Seamless poured-in place gasket.
• A grounding stud is provided in the enclosure and a bonding stud is provided on the door.
• Mounting channels are welded on the inside of the enclosure for mounting of optional inner panels or rack equipment rails.

Standards

• UL 508A Type 3R, 4X and 12
• CSA Type 3R, 4X and 12
• Complies with:
  • NEMA Type 3R, 4X, 12 and 3
  • IEC 60529, IP66

Finish

• Cover and enclosure are natural stainless steel with a smooth brushed finish.
• Optional inner panels are finished in white powder paint.

Accessories

• Inner Panels
• Panel Rails
• Swing Out Frames
• Door Stop Kit
• Drip Shield Kit
• Type 12/4, 4X Handle Kits
• Window Kits
• Climate Control
• Lighting
• General Accessories
