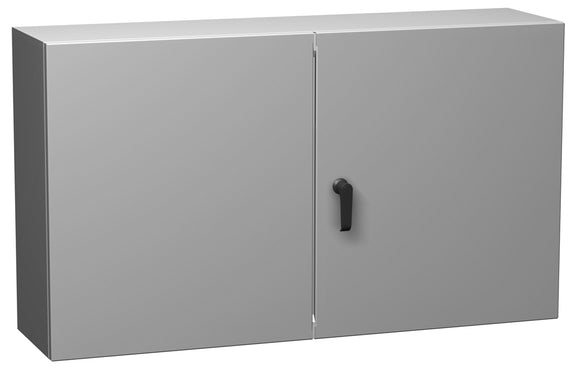

NEMA 12 Mild Steel Two Door Wallmount Enclosure Eclipse Series Hinge Door with Handle

NEMA 12 Mild Steel Two Door Wallmount Enclosure Eclipse Series Hinge Door with Handle

Hammond Manufacturing SKU: EN4TD24428GY

$651.63

Lead Time: All Hammond products vary, we can find this information quickly for you.

Availability: In stock products will ship within 1-2 business days.

Please chat with us directly or email at info@enclosurehub.com and we can give you the most accurate and up-to-date information.

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.


Application

  • Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments for wallmount applications.
  • Impressive styling features like hidden hinges, attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation.
  • A wide range of sizes and practical accessories make this product line a complete package.

Standards

  • UL 508A Type 12, 3R unless marked¹
  • CSA Type 12, 3R
  • Complies with
    • NEMA 12, 3R
    • IEC 60529, IP54

Construction

  • Formed 14 gauge steel.
  • Smooth, continuously welded seams ground smooth.
  • Door stiffeners are provided for increased strength and rigidity also designed to permit additional mounting options.
  • Formed lip on enclosure to exclude flowing liquids and contaminants.
  • Doors may be easily removed for modifications and are interchangeable.
  • Oil resistant gaskets are permanently secured.
  • Collar studs provided for mounting inner panel.
  • Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
  • Bonding stud provided on door and grounding stud installed in enclosure.
  • Doors are secured with a three point key lockable handle.
  • Hinges are constructed from 304 stainless steel.
  • Key lockable handle is zinc diecast with black epoxy finish.
  • Hinge pins are stainless steel.
  • Door alignment guides provided on all doors.

Finish

  • Cover and enclosure are phosphatized and finished with a recoatable powder inside and out with choice of ANSI 61 smooth Gray (GY) or RAL7035 textured light gray (LG).

Accessories

Part Details

Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch. Switch units to: mm

ANSI 61 Gray RAL7035 Light Gray Overall Dimensions Optional Inner. Panel
Part No. Part No. H W D Part No. H W
EN4TD24428GY EN4TD24428LG 24.00 42.00 8.00 EP2442 22.20 40.20
EN4TD24488GY EN4TD24488LG 24.00 48.00 8.00 EP2448 22.20 46.20
EN4TD30488GY EN4TD30488LG 30.00 48.00 8.00 EP3048 28.20 46.20
EN4TD244210GY EN4TD244210LG 24.00 42.00 10.00 EP2442 22.20 40.20
EN4TD304210GY EN4TD304210LG 30.00 42.00 10.00 EP3042 28.20 40.20
EN4TD304810GY EN4TD304810LG 30.00 48.00 10.00 EP3048 28.20 46.20
EN4TD306010GY EN4TD306010LG 30.00 60.00 10.00 EP3060 28.20 58.20
EN4TD306012GY EN4TD306012LG 30.00 60.00 12.00 EP3060 28.20 58.20
EN4TD364212GY EN4TD364212LG 36.00 42.00 12.00 EP3642 34.20 42.20
EN4TD364812GY EN4TD364812LG 36.00 48.00 12.00 EP3648 34.20 46.20
EN4TD366012GY EN4TD366012LG 36.00 60.00 12.00 EP3660 34.20 58.20
EN4TD484812GY¹ EN4TD484812LG¹ 48.00 48.00 12.00 EP4848 46.20 46.20
