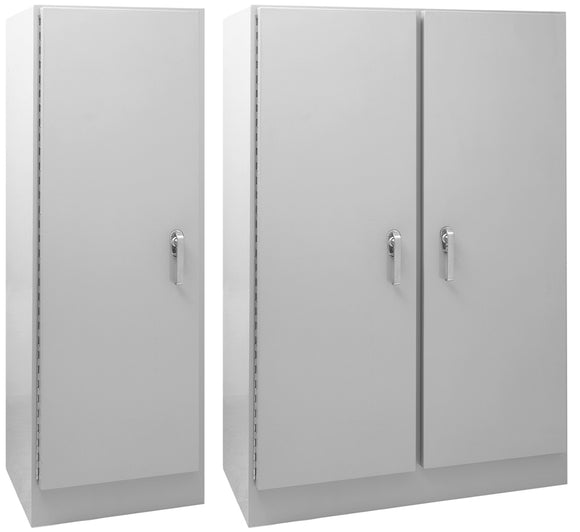

Type 4X Polyester Single/Two Door Freestanding Enclosure PJFS Series Continuous Hinge Door with Handle

$6,518.51

SKU: PJFS722525 Hammond Manufacturing

Application

  • Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • Ideal in applications with high temperatures or highly corrosive environments.

 Standards

  • UL/cUL 508A Type 1, 2, 3, 4, 4X, 12 and 13
  • Complies with
    • IEC 60529, IP66
    • NEMA Type 1, 2, 3, 4, 4X,12 and 13

 Construction

  • Fiberglass polyester enclosure with matching door is easily punched, cut, or drilled.
  • Enhanced UV inhibitors protect against outdoor weathering.
  • Collar Studs are provided for optional inner panel(s).
  • Two door enclosure accommodates 2 separate inner panels
  • Mounting hardware included.
  • Heavy duty continuous 304 SS Hinge.
  • Flexible self-gripping gasket compresses over flange for tight seal.
  • 3-point SS handle with pad lock provision.
  • Molded in drip shield.
  • Fiberglass mounting strut side walls on double door unit.
  • Operating temperatures between 130°C and -40°C (266°F to -40°F).
  • Impact index of 6.78J (5 ft/lb).
  • For corrosion resistance information, please refer to table in the Technical Information section.

 Finish

  • Fiberglass polyester material has a gray finish.
  • Optional inner panels are available in white powder coated finished steel.
