N4X Series 304 Stainless Steel Enclosures with Continuous Hinge and Clamped Cover

Adalet SKU: N4X-161606-M10110

$565.33

Lead Time: All Adalet products vary, we can find this information quickly for you. Currently Stainless Steel (not in stock) has a 12 week lead time. Fiberglass has a 8-10 week lead time.

Availability: In stock products will ship within 1-2 business days.

Please chat with us directly or email at enclosurehub@adalet.com and we can give you the most accurate and up-to-date information.



Corrosion Resistant Electrical Enclosures

Adalet's N4X single door, wall-mount stainless enclosure can be used indoors or outdoors to house items such as pilot devices; electronic or electrical controls; instrumentation systems; and hydraulic, pneumatic and machine tool controls. Designed to protect against dust, dirt, oil and water, these corrosion resistant electrical enclosures are ideal for petrochemical plants, dairies, breweries, food processing areas and similar environments where they can be subject to frequent high pressure hosing and generally wet conditions.
Standard Features
•  Continuous hinge (removable hinge pin)
•  Wall mounting feet
•  Closed cell, silicone foam in place gasket
•  Stainless steel clamps and screws
•  Four #10-32 weld nuts for optional mounting panels (mounting panels sold separately)
•  Grounding studs on inside of box and cover

Material

•  14 and 16 gauge / Type 304 or 316L stainless steel
•  Stainless steel hardware
•  #3 or #4 brushed finish



Applications

• Petrochemical plants

• Dairies

• Breweries

• Food processing areas

• Environments where they can be subject to frequent high pressure hosing and generally wet conditions.

• Areas where severe corrosion problems exist. (Not submersible.)



Useful Links

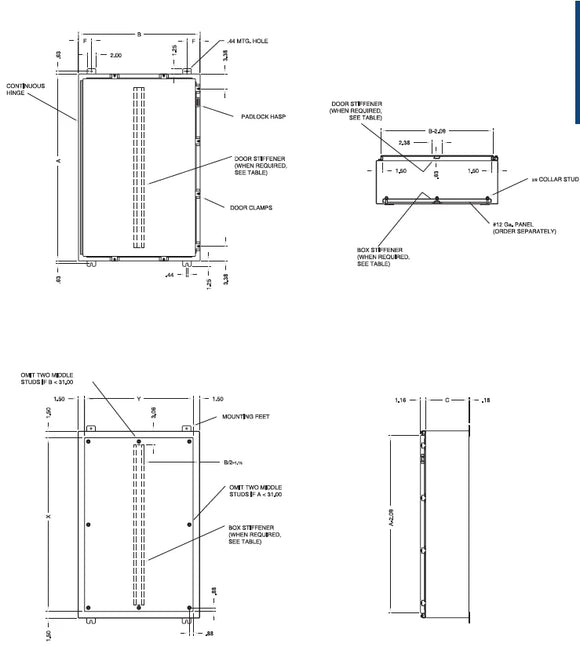

Drawings


.pdf files .pdf files .dwg files .dwg files
N4X-161206 N4X-202010 N4X-161206 N4X-202010
N4X-161606 N4X-242010 N4X-161606 N4X-242010
N4X-162006 N4X-242410 N4X-162006 N4X-242410
N4X-201606 N4X-302010 N4X-201606 N4X-302010
N4X-202006 N4X-302410 N4X-202006 N4X-302410
N4X-202406 N4X-362410 N4X-202406 N4X-362410
N4X-241206 N4X-363010 N4X-241206 N4X-363010
N4X-241606 N4X-363610 N4X-241606 N4X-363610
N4X-242006
N4X-423010 N4X-242006 N4X-423010
N4X-242406 N4X-423610 N4X-242406 N4X-423610
N4X-302006 N4X-483610 N4X-302006 N4X-483610
N4X-302406 N4X-603610 N4X-302406 N4X-603610
N4X-362406 N4X-201612 N4X-362406 N4X-201612
N4X-363006 N4X-242012 N4X-363006 N4X-242012
N4X-161208 N4X-242412 N4X-161208 N4X-242412
N4X-161608 N4X-302412 N4X-161608 N4X-302412
N4X-162008 N4X-303012 N4X-162008 N4X-303012
N4X-201608 N4X-362412 N4X-201608 N4X-362412
N4X-202008 N4X-363012 N4X-202008 N4X-363012
N4X-202408 N4X-363612 N4X-202408 N4X-363612
N4X-241608 N4X-423012 N4X-241608 N4X-423012
N4X-242008 N4X-423612 N4X-242008 N4X-423612
N4X-242408 N4X-483612 N4X-242408 N4X-483612
N4X-243008 N4X-603612 N4X-243008 N4X-603612
N4X-302008 N4X-242016 N4X-302008 N4X-242016
N4X-302408 N4X-242416 N4X-302408 N4X-242416
N4X-303008 N4X-302416 N4X-303008 N4X-302416
N4X-362408 N4X-363016 N4X-362408 N4X-363016
N4X-363008 N4X-423616 N4X-363008 N4X-423616
N4X-363608 N4X-483616 N4X-363608 N4X-483616
N4X-423008 N4X-603616 N4X-423008 N4X-603616
N4X-423608 N4X-302420 N4X-423608 N4X-302420
N4X-483608 N4X-363020 N4X-483608 N4X-363020
N4X-201610 N4X-483620 N4X-201610 N4X-483620
N4X-603620 N4X-603620
N4X-302424 N4X-302424
