Pole Mount / Flange Mount Kit for Altelix NFC242009 & NS242012 Series NEMA Enclosures

Pole Mount / Flange Mount Kit for Altelix NFC242009 & NS242012 Series NEMA Enclosures

Altelix SKU: NMKS-500-08

$63.14

Lead Time: TYPICALLY Ships Same Day on Orders Placed before 11:00AM EST

Availability: In Stock as of 9/21/23

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at info@enclosurehub.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

Features:
  • (2) Heavy Duty Coated Steel Mounting Plates

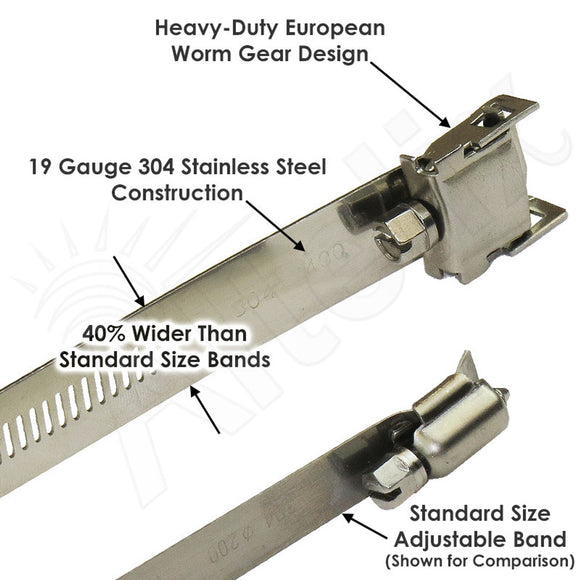

  • (4) Stainless Steel Adjustable Bands
  • Reversible for Pole Mount or Flange Mounting
  • Easily Attaches to Rear of Enclosure
 Applications:
  • Pole Mount Installations
  • Wall Mount Installations
  • NFC242009 Series
  • NS242012 Series

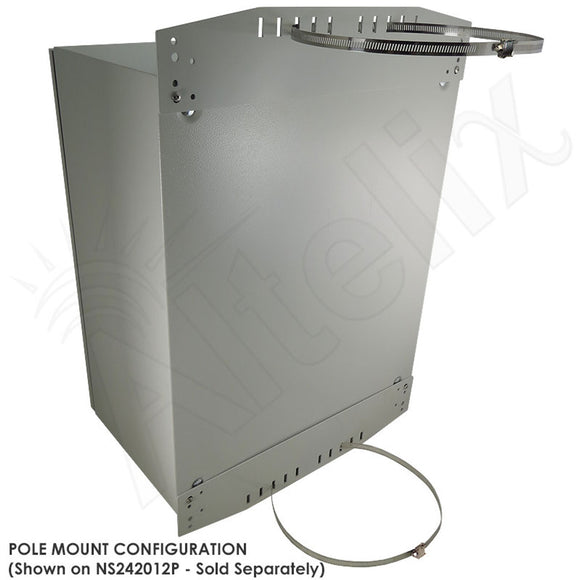

The Altelix NMKS-500-08 Pole Mount Kit attaches to the rear of our NFC242009 and NS242012 series NEMA enclosures. These heavy duty steel brackets allow the enclosures to be mounted to poles 2.0 to 9.5 inches (50.8 to 241.3mm) in diameter. The mounting bracket features multiple locations to thread the stainless steel bands so that small to large poles can be accommodated. The mounting brackets are constructed from 0.08" (2mm) thick steel and are coated for all weather applications.

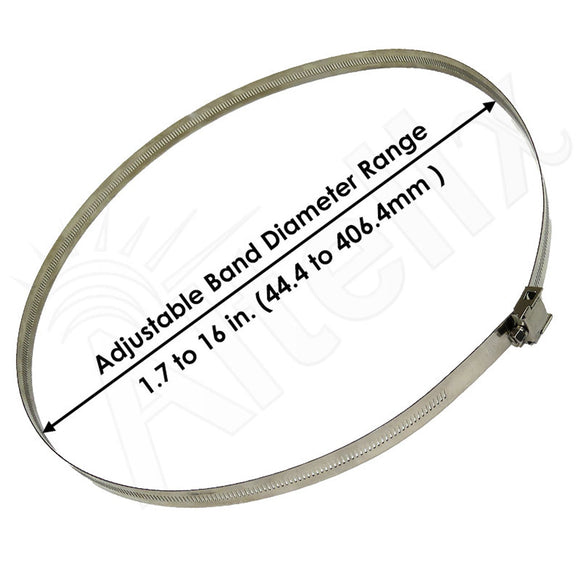

Optional adjustable stainless steel bands can also be purchased for the following pole sizes (see the accessory section below):

  • Poles 2.0 to 4.0 inches (50.8 to 101.6mm) in diameter
  • Poles 2.0 to 13.0 inches (50.8 to 330.2mm) in diameter
  • Poles 2.0 to 17.5 inches (50.8 to 444.5mm) in diameter

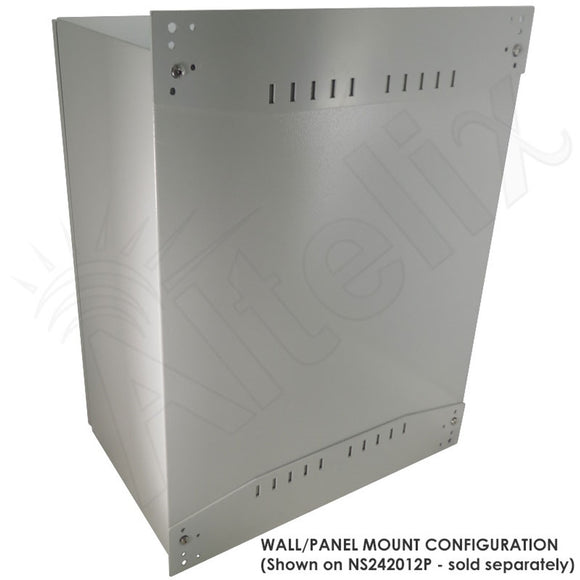

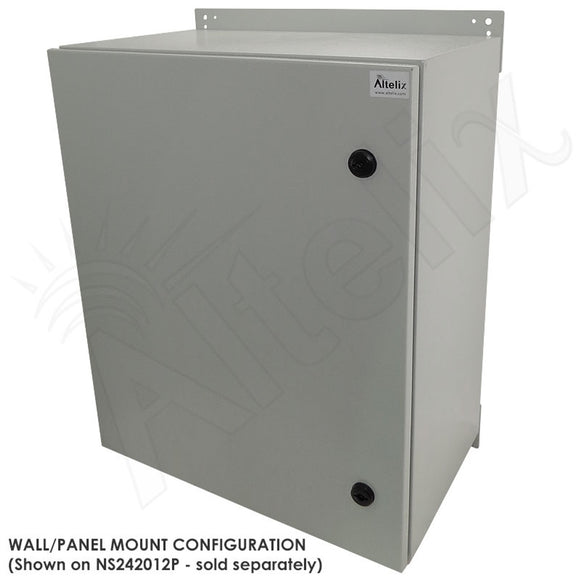

The brackets can also be reversed to provide a continuous steel mounting flange along the edge of the enclosure.

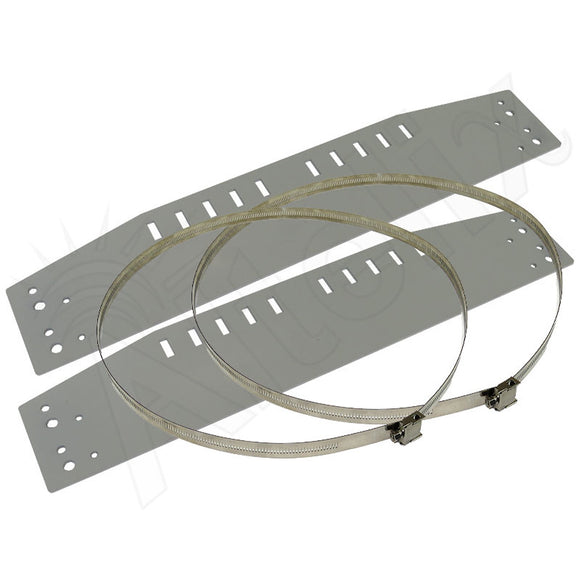

The NMKS-500-08 kit includes (2) steel mounting brackets, (4) stainless steel adjustable bands and mounting hardware.

The NMKS-500-08 is for use with the following enclosures:
  • NFC242009 Series FRP Enclosures
  • NS242012 Series Steel Enclosures
