Pole Mount Kit for NP090803, NP100904, NP120905 & NP120907 NEMA Enclosures

Pole Mount Kit for NP090803, NP100904, NP120905 & NP120907 NEMA Enclosures

Altelix SKU: NMKG-150-08

$11.83

Lead Time: TYPICALLY Ships Same Day on Orders Placed before 11:00AM EST

Availability: In Stock as of 2/2/24

Important: Lead times vary frequently! Please contact us with any questions and/or concerns. We may be reached directly through chat or email us at info@enclosurehub.com

Our business hours are Monday-Friday 7:30 AM - 4:30 PM EST. Orders will not be entered outside of business hours.

Features:
  • Galvanized Steel Mounting Brackets
  • Includes (2) Stainless Steel Adjustable Mounting Bands
  • Included Rubber Sealing Washers Help Keep Enclosure Water-Tight
  • Easily Attaches to Rear of Enclosure
 Applications:
  • Pole Mount Installations
  • Fence Posts
  • Fits NP090803, NP100904, NP120905 & NP120907 Enclosures

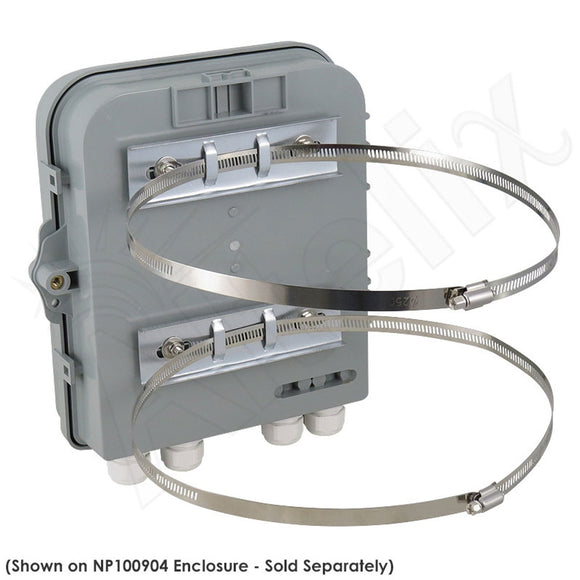

The Altelix NMKG-150-08 Pole Mount Kit easily attaches to the rear of our NP090803, NP100904, NP120905 and NP120907 series NEMA enclosures. This pole mount kit allows the enclosures to be mounted to poles up to 9.5 inches in diameter. The mounting brackets are constructed from 0.04" (1mm) thick galvanized steel for all weather applications.

Optional adjustable stainless-steel bands can also be purchased for the following pole sizes:

  • Poles 2.0 to 4.0 inches (50.8 to 101.6mm) in diameter
  • Poles 2.0 to 13.0 inches (50.8 to 330.2mm) in diameter
  • Poles 2.0 to 17.5 inches (50.8 to 444.5mm) in diameter

Click Here for more information.

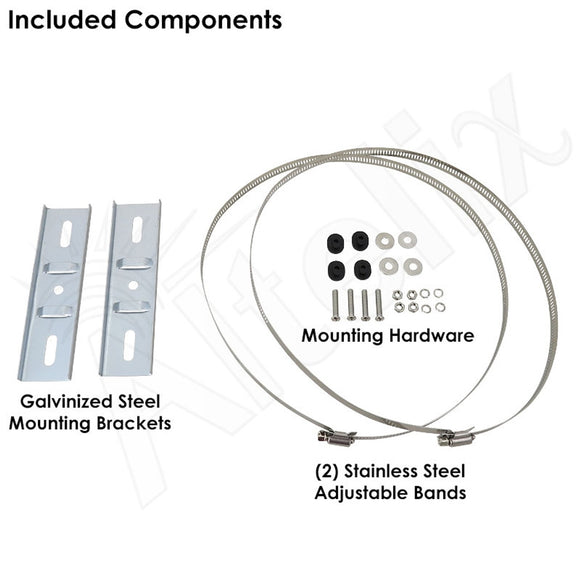

The NMKG-150-08 kit includes (2) galvanized steel mounting brackets, (2) stainless steel adjustable bands and mounting hardware with rubber sealing washers to ensure proper seal.

The NMKG-150-08 is for use with the following enclosures:

  • NP090803
  • NP100904
  • NP120905
  • NP120905
