Features

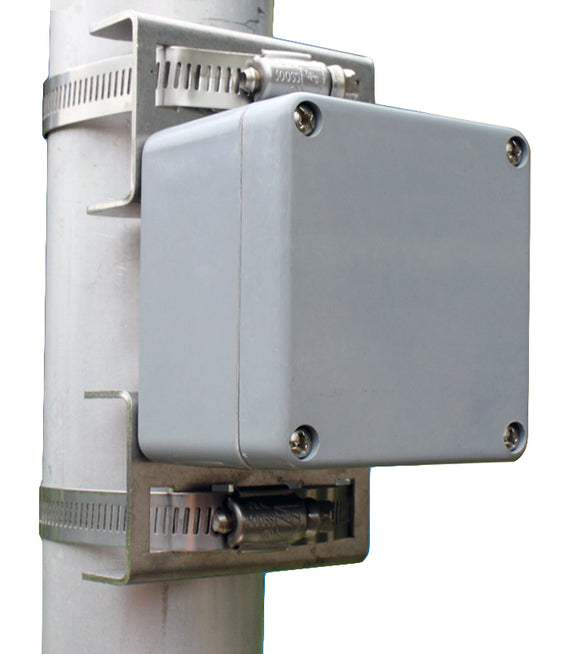

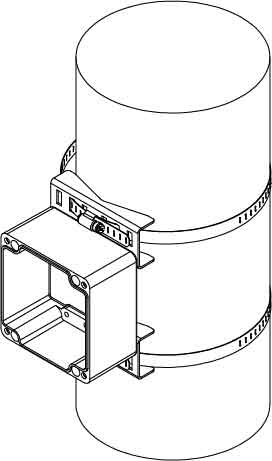

• Allows select Hammond enclosures to be mounted securely to a pole.  Compatible series (refer to tables below for specific parts):
  • 1554
  • 1555
  • 1555F
  • 1556, 1557 (special instructions)
  • 1590Z
  • 1590ZGRP
• Pole mounting brackets designed to mount specific enclosures.  Refer to tables below for compatibility.
• Minimum pole diameter of of 1.5" (38 mm)
• Maximum pole diameter of 7" or 15" (178 mm/ 381 mm).  Refer to table below.
• Clamps are tightened with a 5/16" nut drive.
• Brackets are installed with a hex key and a nut drive (refer to instructions for size).

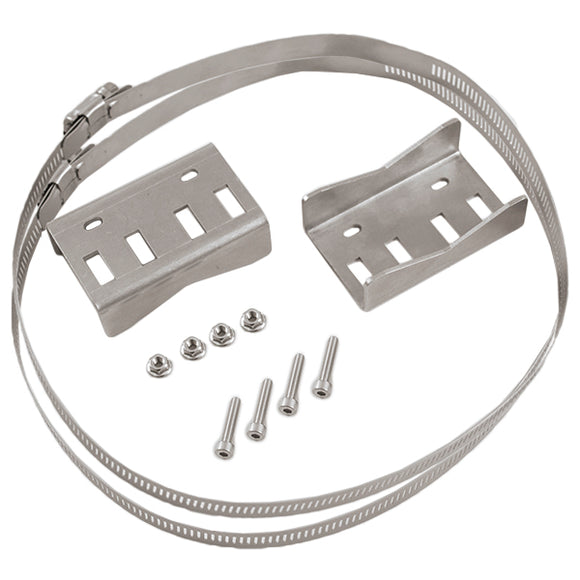

• Each kit includes:
  • (2) Stainless steel pole mounting brackets
  • (2) Stainless steel strap clamps.
  • Stainless steel mounting hardware.  NOTE:  Each kit includes multiple hardware packs.  Be sure to select the correct hardware based on your enclosure (see tables below).

• Part Details

  Click Part No, below, for details (e.g., Product drawings, assembly instructions, ship weight)

  Compatible 1554/55 Series Enclosures

  Non-Flanged
  1554 / 1555 Series Enclosure	Pole Mount Kit (7" Max.)	Pole Mount Kit (15" Max.)	Screw Type	Replacement Screw Pack
  1554/55E	PMB5057KIT1	PMB5057KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55EE	PMB5057KIT1	PMB5057KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55F	PMB5057KIT1	PMB5057KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55G	PMB5057KIT1	PMB5057KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55H	PMB6687KIT1	PMB6687KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55HL	PMB6687KIT1	PMB6687KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55J	PMB5057KIT1	PMB5057KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55JL	PMB5057KIT1	PMB5057KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55K	PMB5057KIT1	PMB5057KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55L	PMB6687KIT1	PMB6687KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55LA	PMB6687KIT1	PMB6687KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55N	PMB6687KIT1	PMB6687KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55P	PMB6687KIT1	PMB6687KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55Q	PMB110127KIT1	PMB110127KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55QA	PMB110127KIT1	PMB110127KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55R	PMB110127KIT1	PMB110127KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55S	PMB110127KIT1	PMB110127KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55T	PMB6687KIT1	PMB6687KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55U	PMB6687KIT1	PMB6687KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55V	PMB110127KIT1	PMB110127KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55VA	PMB110127KIT1	PMB110127KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55VAL	PMB110127KIT1	PMB110127KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55VB	PMB110127KIT1	PMB110127KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55W	PMB127155KIT1	PMB127155KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55WA	PMB127155KIT1	PMB127155KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55X	PMB180200KIT1	PMB180200KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55XA	PMB180200KIT1	PMB180200KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55Y	PMB180200KIT1	PMB180200KIT2	M4-0.7 x 20mm	SCPMB1-20
  1554/55YA	PMB180200KIT1	PMB180200KIT2	M4-0.7 x 20mm	SCPMB1-20
