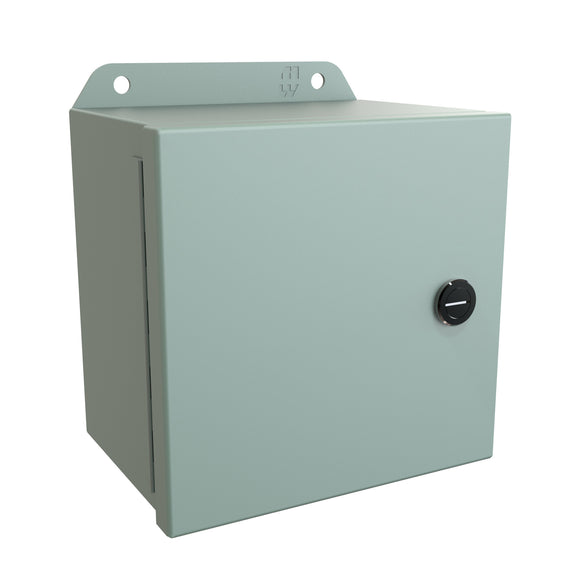

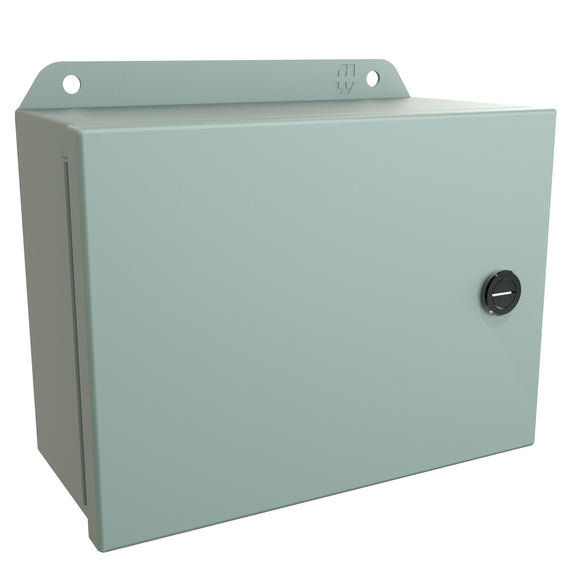

Type 4 Mild Steel Junction Box Eclipse Junior Series

Application

• Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments.
• For use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
• Impressive styling features make the Eclipse Junior a suitable addition to any high-tech equipment installation.

Standards

• UL 508A Type 3R, 4, 12 and 13
• CSA Type 3R, 4, 12 and 13
• Complies with
  • NEMA Type 3R, 4, 12 and 13
  • IEC 60529, IP66

Construction

• Body and cover are formed from 16 gauge steel.
• Smooth, continuously welded seams without knockouts, cutouts, or holes.
• Formed lip on enclosure to exclude flowing liquids and contaminants.
• 14 gauge welded brackets provide for enclosure mounting.
• Continuously hinged cover has 304 stainless steel hinges and provides 180° opening.
• Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
• Quarter turn latches formed from black zinc diecast.
• Seamless poured-in place gasket.
• Models larger than 4"x4" include a removable 14 gauge galvanized inner panel.
• Internal threaded weld studs are provided for mounting inner panels.
• A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
• Grounding and panel mounting hardware provided.

Finish

• Cover and enclosure are finished with a recoatable powder inside and out with choice of ANSI 61 smooth Gray (GY) or RAL7035 textured light gray (LG).
• Inner panels are unpainted galvanized steel.
