Victory Series (AVSS6) - 316L Stainless Steel Enclosures with Hinged and Quarter-Turn Latches

Only 3 left!
$315.45
Brand: Adalet
SKU: AVSS6-121206-M10054
Minus Plus

is backordered. We will ship it separately in 10 to 15 days.

${{amount}}

Victory Series enclosures feature a streamlined design with a flush door and latches that accommodate any electrical or electronic application.

Adalet has designed these enclosures to use quarter-turn latches instead of hold-down clamps, which are often inadequately secured after servicing, leaving equipment vulnerable to the elements. The Victory Series stainless steel electrical enclosures are used indoors and outdoors to house such items as electronic and electrical controls; instrumentation systems; and pneumatic, hydraulic and machine tool controls.

Designed to provide protection against dust, dirt, oil and water, these custom stainless steel enclosures are used in petrochemical plants, dairies, breweries, food processing areas and similar environments where they are subject to frequent high pressure hosing and generally wet conditions. They are also designed for use in areas where severe corrosion problems exist.



Standard Features

  • Hinged cover with removable stainless steel hinge pin
  • Polyamide coated zinc slotted quarter turn latch
  • Wall mounting flange / foot
  • Watertight urethane gasket
  • Stainless steel clamps and screws
  • Four 3/8” collar studs for optional mounting panel (mounting panels sold separately
  • Grounding studs on inside of box and cover
  • Hinge stiffener

Design Options

  • Painted steel and stainless steel mounting panels
  • Laser cut entries or cut-outs
  • Terminal blocks or other componenet assembly
  • Print pockets
  • Swing panel / dead front panel
  • Padlock provisions
  • Epoxy paint or powder coating
  • Custom sizes
  • 12 gauge material thickness
  • Drip shields and sun shields
  • Window kits

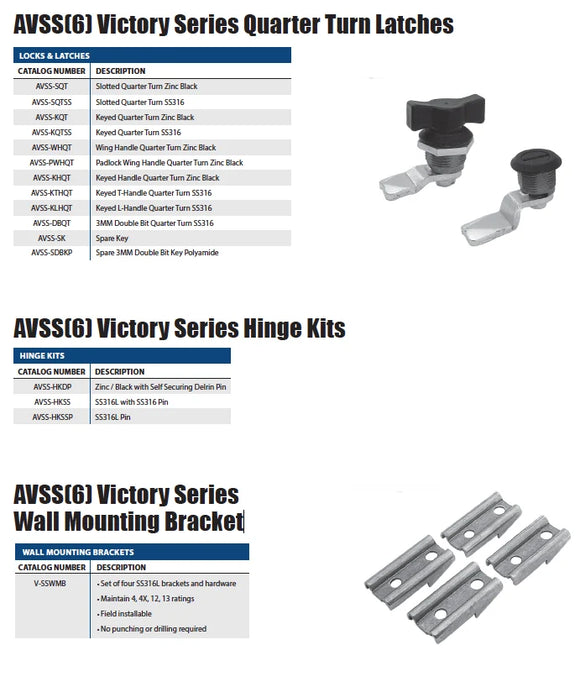

  • Various quarter turn inserts

Material

  • 14 and 16 gauge / Type 316L stainless steel
  • Stainless steel hardware
  • #3 or #4 brushed finish



    Catalog Spec Sheet

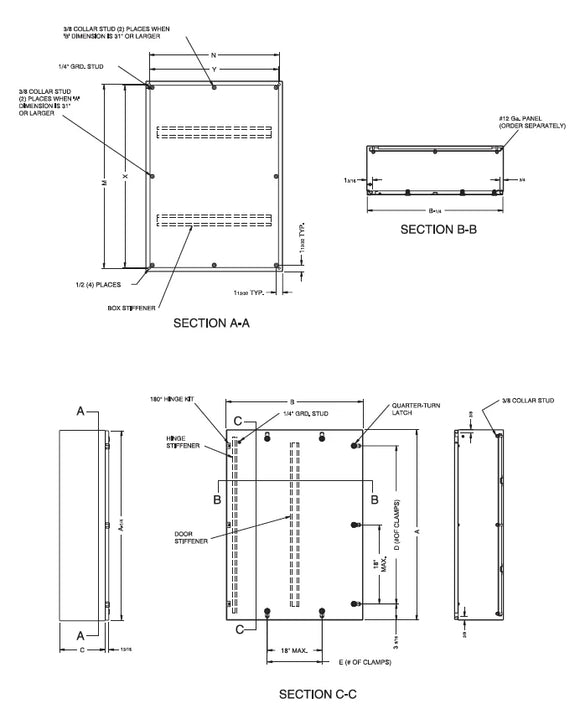

    Drawings:

    .pdf files  .dwg files

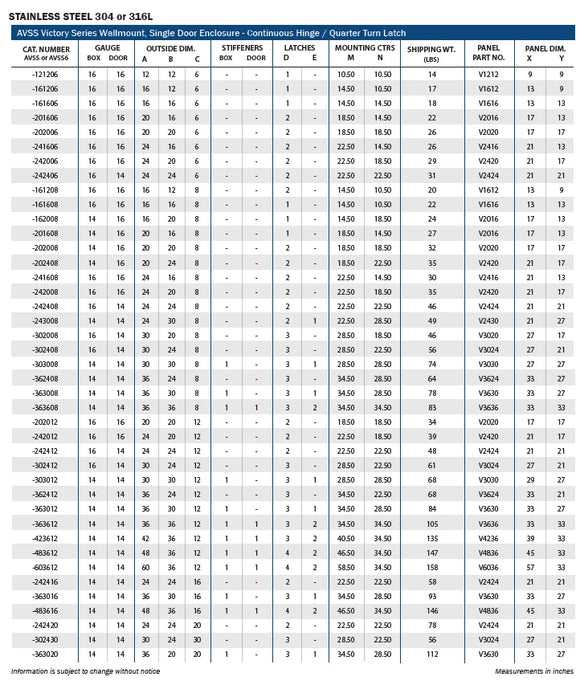

    AVSS6-121206 AVSS6-121206
    AVSS6-161206 AVSS6-161206
    AVSS6-161606 AVSS6-161606
    AVSS6-201606 AVSS6-201606
    AVSS6-202006 AVSS6-202006
    AVSS6-241606 AVSS6-246106
    AVSS6-242006 AVSS6-242006
    AVSS6-242406 AVSS6-242406
    AVSS6-161208 AVSS6-161208
    AVSS6-161608 AVSS6-161608
    AVSS6-162008 AVSS6-162008
    AVSS6-201608 AVSS6-201608
    AVSS6-202008 AVSS6-202008
    AVSS6-202408 AVSS6-202408
    AVSS6-241608 AVSS6-241608
    AVSS6-242008 AVSS6-242008
    AVSS6-242408 AVSS6-242408
    AVSS6-243008 AVSS6-243008
    AVSS6-302008 AVSS6-302008
    AVSS6-302408 AVSS6-302408
    AVSS6-303008 AVSS6-303008
    AVSS6-362408 AVSS6-362408
    AVSS6-363008 AVSS6-363008
    AVSS6-363608 AVSS6-363608
    AVSS6-202012 AVSS6-202012
    AVSS6-242012 AVSS6-242012
    AVSS6-242412 AVSS6-242412
    AVSS6-303012 AVSS6-303012
    AVSS6-362412 AVSS6-362412
    AVSS6-363012 AVSS6-363012
    AVSS6-363612 AVSS6-363612
    AVSS6-423612 AVSS6-423612
    AVSS6-483612 AVSS6-483612
    AVSS6-603612 AVSS6-603612
    AVSS6-242416 AVSS6-242416
    AVSS6-363016 AVSS6-363016
    AVSS6-483616 AVSS6-483616
    AVSS6-242420 AVSS6-242420
    AVSS6-302420 AVSS6-302420
    AVSS6-363020 AVSS6-363020
