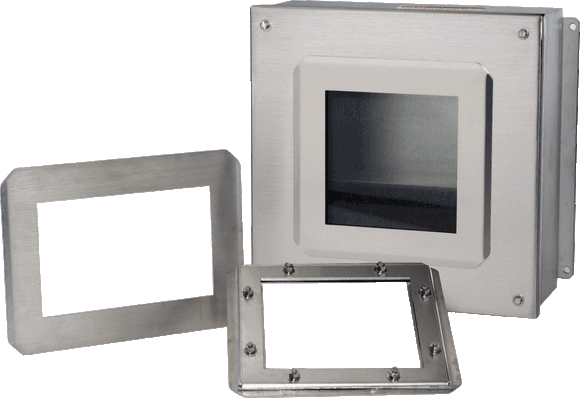

Adalet's window kits for stainless steel enclosures with windows are designed to be used on general purpose NEMA Type 4, 4X, 12 & 13 enclosures. These Type 304 stainless steel window kits are easily installed by making a cutout in the enclosure door and securing the window and frame in place. The silicone gasket provides a water, oil and dust-tight seal around the perimeter of the window and frame. All mounting hardware is provided, and alternate window sizes and materials are available.
Features
- Type 304 stainless steel frame and retaining plate
- Watertight silicone gasket
- Stainless steel hardware
- Tempered plate glass
- Installed on any stainless steel enclosure 12-16 gauge material
- Various sizes from 3x3 through 24x24
Material
- 14x16 gauge / Type 304 stainless steel
- Stainless steel hardware
- #3 or #4 brushed finish
Catalog Spec Sheet
Catalog Number |
Viewing Area |
EWK-0303SS |
3" X 3" |
EWK-0503SS |
5" X 3" |
EWK-0505SS |
5" X 5" |
EWK-0703SS |
7" X 3" |
EWK-0707SS |
7" X 7" |
EWK-0905SS |
9" X 5" |
EWK-0909SS |
9" X 9" |
EWK-1111SS |
11" X 11" |
EWK-1303SS |
13" X 3" |
EWK-1313SS |
13" X 13" |
EWK-1515SS |
15" X 15" |
EWK-1705SS |
17" X 5" |
EWK-1711SS |
17" X 11" |
EWK-1717SS |
17" X 17" |
EWK-2315SS |
23" X 15" |
EWK-2424SS |
24" X 24" |
